Specifications
Brand Name :
HONORWAY
Model Number :
HW-1211E
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
$11-14/pcs
Payment Terms :
T/T
Supply Ability :
20Kpcs per month
Delivery Time :
1-7days
Packaging Details :
Paper Carton
Product Name :
6.8mm height barcode reader engine
Supported barcode type :
1D bar code, 2D code,QR
Working Current :
Max 190mA
Reflesh Rate :
120fps
Customization :
OCR can be optional for passport MRZ
Feature :
The smallest dimensions
Advantage :
Highly cost-effective, work under 85degrees
Description

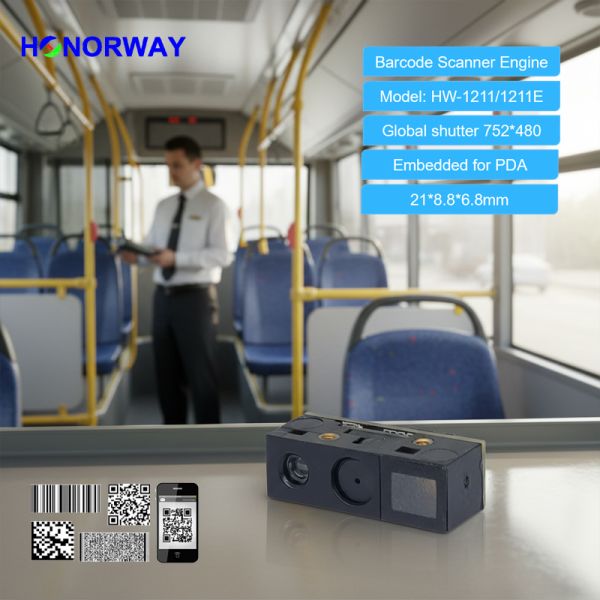

OEM Compact Mini 6.8mm Thickness Barcode Reader Module
Engineered for integration where space and durability are critical, the HW-1211E is an ultra-thin barcode scanning engine. Its compact form factor, measuring only 6.8mm in thickness, maximizes internal design freedom for device manufacturers. Dual lighting systems—a white fill light and a red aiming beam—work in tandem to ensure precise image acquisition and user-friendly targeting.
Product Overview
At its core, a 0.3MP sensor with global shutter technology captures 120 images per second, delivering high-speed reading of all common barcode symbologies with minimal errors and consistent reliability.
The module features an innovative 13-pin FFC connector interface that includes an auxiliary I/O channel. This added connectivity provides developers with enhanced flexibility to address complex project requirements and enable advanced functional expansions.
Exceptional environmental adaptability is a hallmark of the HW-1211E. It maintains stable performance in ambient temperatures as high as 85°C, a threshold exceeding that of most comparable engines, owing to its carefully selected, heat-resistant internal components.
Core Benefits
  • Industry-Leading Thinness: 6.8mm chassis delivers unmatched space-saving advantages for compact product designs.
  • Robust Thermal Endurance: Guarantees continuous operation under extreme heat up to 85°C.
  • Expanded Development Flexibility: The supplementary I/O port unlocks greater potential for custom functionality and integration.
  • Programmable Operation: Enables direct control over scanning parameters, modes, and interfaces through a command protocol.
  • Adaptable Scanning Modes: Offers a suite of modes including triggered, automatic, continuous, and command-driven operation.
Technical Specifications
Reading Performance
Image Sensor CMOS global shutter
Resolution 752×480 pixels, 0.3MP, 120fps
Decoding Capacity Support paper and screen barcodes
2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc.
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar, etc.
Support customization for OCR-A/OCR-B
Precision 3mil (1D), 5mil (2D)
Light Source 620nm Visible Red Diode, white LED for illumination
Scan Angle Rotation 360°, tilt ±55°, skew ±55°
Min Contrast 20%
Trigger Mode Manual, Continuous, Motion sensing, Host Mode, etc.
Typical DOF Code128 (10mil) 50-260mm
Code 39 (4mil) 50-150mm
QR code (20mil) 50-260mm
PDF417 (5mil) 30-120mm
Performance may be impacted by barcode quality and environmental conditions
Mechanical and Electrical
Interface TTL232, USB (KBW/COM) by 13pin FFC flat cable (0.3mm pitch)
Working Voltage DC 3.3V ±0.3V
Current Max 190mA (working), ≤10mA (TTL standby)
Dimensions 21(W) × 8.8(D) × 6.8(H) mm
Weight 2g
Indication LED fill light (can trigger external buzzer and LED indicator)
Installation 2pcs M1.6mm screws, locking depth not exceeds 1.5mm
Environmental Requirements
Working Temperature -30°C to 70°C
Storage Temperature -40°C to 80°C
Humidity 5%-95% (Non-condensing)
Light Brightness 0-100,000 LUX
Recommended Use Cases
  • Space-Critical Integrations: Ideally suited for ultra-slim portable devices where internal real estate is severely limited.
  • Thermally Demanding Operations: Provides dependable service in high-temperature field applications, including industrial and transportation settings.
  • Customizable Medical Devices: Meets the high flexibility requirements of medical technology with its configurable I/O for specialized control functions.
