Specifications
Brand Name :
HONORWAY
Model Number :
HW-1264N
Certification :
CE,ROHS,FCC,ISO9001
Place of Origin :
China
MOQ :
2
Price :
22-25 usd/pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs per month
Delivery Time :
3-7days
Product Name :
Mrz scanner engine for passport and ID card
Scanning Type :
CMOS
Camera resolution :
1280*720
Reading distance :
120-220mm@Passport MRZ
Scan speed :
300T/S
Min Contrast :
25%
Indicator :
Laser cross
Application :
Self-service machine,booking machine,ticket device
Description
Auto Sense Passport MRZ Reader
High-performance 1D/2D/QR programmable barcode scanner engine with UART/USB interface for authentication applications
Product Overview

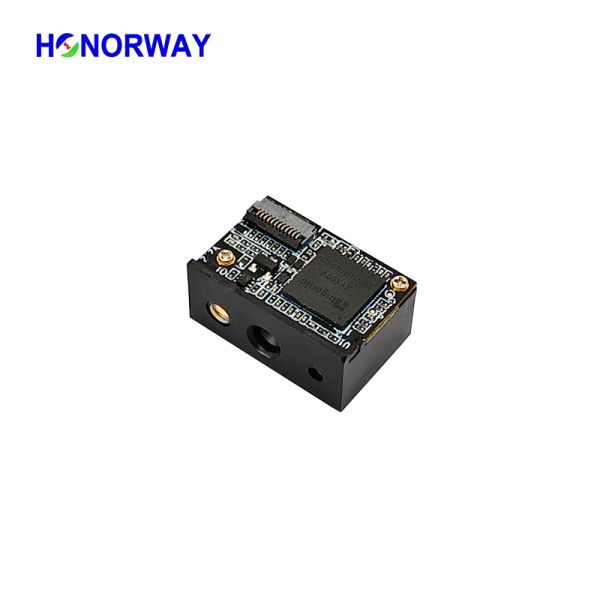

Built for developers and integrators, the HW-1264N combines a high-speed 1MP global shutter camera (100fps) with a powerful 1GHz processor to support both traditional barcode reading and OCR-based MRZ extraction. It offers versatile control options and multiple trigger configurations for seamless deployment in fixed or handheld devices.
Core Capabilities
  • Dual-Media Barcode Scanning - Reads 1D and 2D symbols from paper labels and digital screens with consistent accuracy
  • OCR-A / OCR-B Font Support - Extracts MRZ characters from passports and ID cards at 9-20cm distance
  • Laser Targeting Aid - Cross laser pattern simplifies alignment for users in both fixed and mobile setups
  • Interactive Start/Stop Control - Commands can be sent to enable or disable scanning, enhancing UI/UX in smart devices
  • Wide Mode Selection - Switch between auto-sense, continuous read, level trigger, and command trigger modes
  • Tailored Customization - Hardware and software modifications supported for volume projects
Technical Specifications
Image Sensor CMOS
Resolution 1MP 1280*720 pixels
Decoding Capacity Supports paper and screen barcodes; OCR A/B optional
2D Code Support QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code
1D Code Support EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5
Precision 4mil
Light Source 620nm Visible Red Diode, red LED for illumination
View Angle 45°(H) * 40°(V)
Scan Angle Rotation 360°, tilt ±55°, skew ±55°
Min Contrast 25%
Trigger Mode Manual, Continuous, Motion sensing, Host Mode
Typical DOF Code128 (5mil) 30-170mm, Code 39(4mil) 40-130mm, QR code(20mil) 30-210mm, PDF417(5mil) 30-120mm, MRZ code 120-220mm
Interface TTL232, USB (KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage DC 3.3V ±10%
Current Max 190mA (working), ≤1mA (TTL standby)
Dimensions 21.2(W) * 14(D) * 10.2(H) mm
Weight 3.5g
Indication LED fill light (can trigger external buzzer and LED indicator)
Use Case Highlights

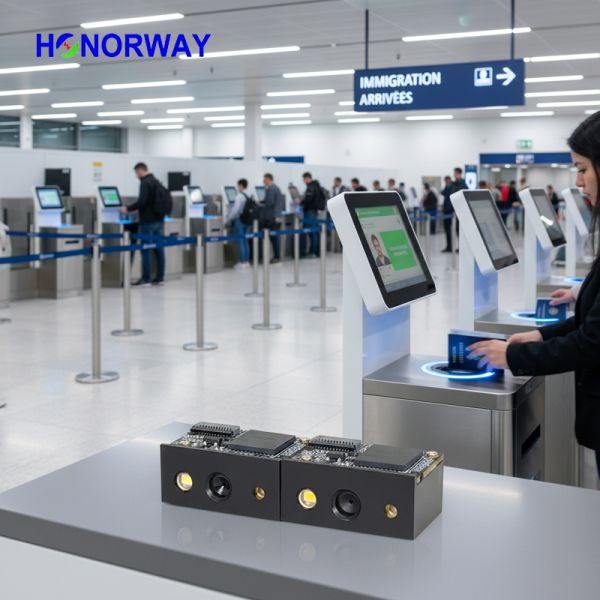

  • Self-Service Kiosks - Configured in auto-sense mode, activates upon document presentation for passport scanning at immigration gates or check-in terminals
  • Embedded Terminals - In command mode, responds to screen touches or host signals for interactive displays and industrial HMI systems
  • Batch Scanning Stations - Continuous mode with configurable duplicate delay prevents repeated data entry in logistics or document processing
  • Handheld Scanners - Level or pulse trigger modes replicate traditional gun behavior for inventory and retail applications
