Specifications
Description
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
What Can This Machine Do For You?
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine

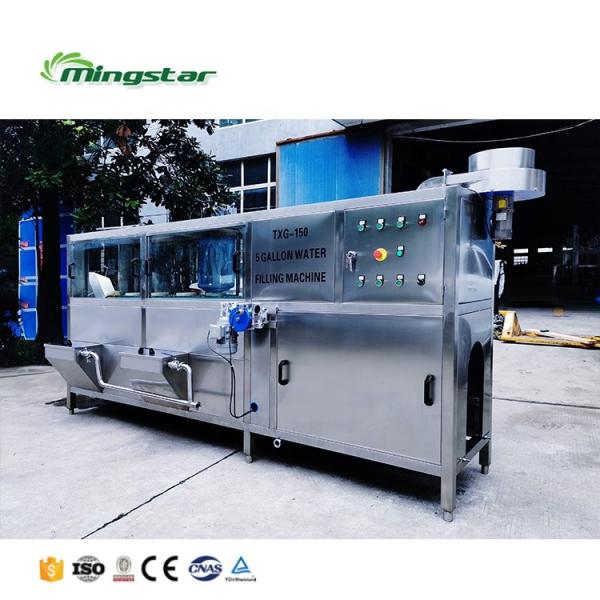

Automatic 5Gallon Washing Filling and Capping Machine
The 5 gallon pure water barrel filling machine integrates bottle washer, filler and sealer into unit, Multiple injections of washing and sterilizing and bleaching are used in bottle water filling machine
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
Model
TXG-150
Barrel dimension
φ270×490
Producing capacity
150 bottles/Hour
Power
380V, 50HZ,maximum power consumption 3KW.
Water consumption
Filling 2T/H; purified water washing 0.5T/H
External dimension
2000*600*1500mm
weight
1000kg
Detail images
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine

Material of the machine
The frame, sealing plate and water tank of the machine are all made of 304 stainless steel. Compared with AISI 201, AISI 304 is more corrosion-resistant and more hygienic, and it is a food-grade material.




Conveying Parts
The Rising conveyor is driven by a motor, which can accurately convey the bucket, which is easy to control, and the bucket falls more smoothly after the washing is completed.
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine




Bearing
The bearing is upgraded with AISI304 stainless steel, which is more sanitary, corrosion resistant and has a longer life.This kind of bearing is easy to install, may work in the harsh environment.



Washing Parts
High pressure AISI304 washing nozzle, no washing dead corner, to make sure better washing effect and improve product quality.
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine




Inner tanks
Inner tanks upgraded with dosing ports. It is convenient to mix disinfectant or hot alkali into the water tank. Easy inspection and bigger volume tank for a long usage time.





Filling Parts
The filling part is upgraded to use non-contact filling, fast filling, precise control of the liquid level, without wasting a drop of water.
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine





Capping Parts
Automatic put cap onto bottle mouth, and use pneumatic cylinder to press cap tight. It’s energy-saving and low noise.




Centrifugal cap sorting device
Motor drives cap sorting device rotate slowly without damage to the cap. Big hopper for enough caps storage.
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine
5 Gallon Full Automatic Water Barrel Bottle Water Washing Filling and Capping Machine




Electrical Control System
It is made up of PLC, relay, intermediate relay, sensor and other components. Each action time of the whole line can be setting dependently on the man-machine interface.
