Specifications
Description
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
What Can This Machine Do For You?
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

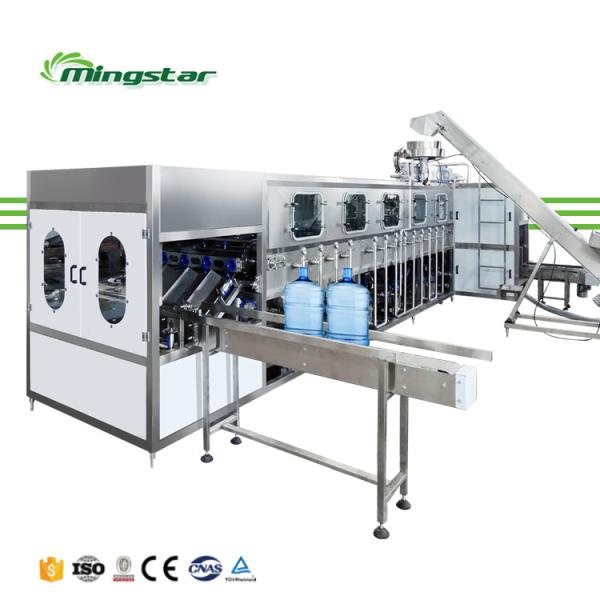

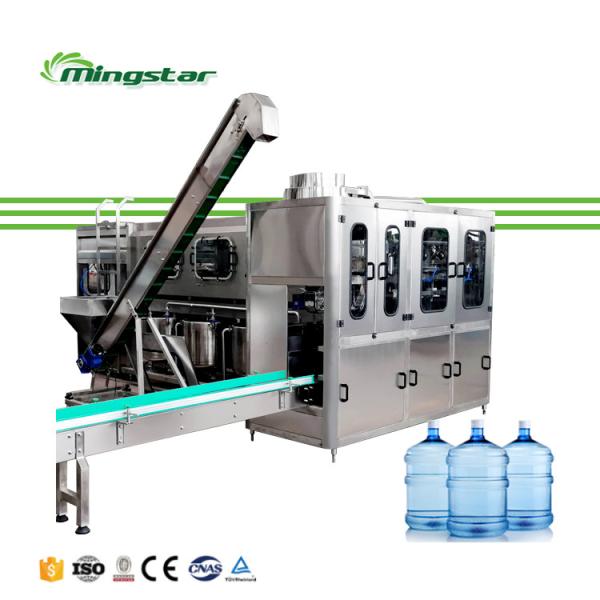

Automatic 5 Gallon Washing Filling and Capping Machine
Rinsing,filling and capping monobloc model "TXG-300" for natural water in 5 gallon bottles with easy operation and occupation.
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
Model
TXG-300
Bottle Dimension
Height 485-495mm
Diameter 265-273mm
Producing Capacity
300 bottles/Hour
Power
380V, 50HZ,
Total Power 6 KW.
Water Consumption
Rinsing water: 1000LPH
Filling water: 6000 LPH
External Dimension
4500*2100*2100mm
Weight
2500kg
Detail images
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

Material of the machine
The frame, sealing plate and water tank of the machine are all made of 304 stainless steel. Compared with AISI 201, AISI 304 is more corrosion-resistant and more hygienic, and it is a food-grade material.




Conveying Parts
The Rising conveyor is driven by a motor, which can accurately convey the bucket, which is easy to control, and the bucket falls more smoothly after the washing is completed.
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa




Bearing
The bearing is upgraded with AISI304 stainless steel, which is more sanitary, corrosion resistant and has a longer life.This kind of bearing is easy to install, may work in the harsh environment.



Washing Parts
High pressure AISI304 washing nozzle, no washing dead corner, to make sure better washing effect and improve product quality.
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa




Inner tanks
Inner tanks upgraded with dosing ports. It is convenient to mix disinfectant or hot alkali into the water tank. Easy inspection and bigger volume tank for a long usage time.





Filling Parts
The filling part is upgraded to use non-contact filling, fast filling, precise control of the liquid level, without wasting a drop of water.
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa





Capping Parts
Automatic put cap onto bottle mouth, and use pneumatic cylinder to press cap tight. It’s energy-saving and low noise.




Centrifugal cap sorting device
Motor drives cap sorting device rotate slowly without damage to the cap. Big hopper for enough caps storage.
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa




Electrical Control System
It is made up of PLC, relay, intermediate relay, sensor and other components. Each action time of the whole line can be setting dependently on the man-machine interface.
Related Products
What We Offer?
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

Consultation Service

Filling Machine Customization
Filling Machine Choosing
Filling Line Updating
Turn-Key Solution
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

Manufacture & Test Service

Filling Machine Stress Testing Packing & Logistic SGS Certification Technical Support
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

After Sales Service

Installation & Worker Training Technical Support Online Annual Diagnosis & Updating
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa

Optional Value-added Service

Agent Recruitment Programme Client Guarantee Programme Customer Development Programme
Partner Customers
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
Mark
Appraise:❤❤❤❤❤
Easy access to AISI table for operations
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
King
Appraise:❤❤❤❤❤
Low energy consumption
Eco-friendly
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
Rar
Appraise:❤❤❤❤❤
Low risk of contamination
High level of hygiene
Packing& Delivery
PET PC 5 Gallon Filling Machine 19-20 Liters Bottle Water Filling Machine in Kenya Africa
FAQ
Q:HOW TO ENSURE THE QUALITY OF FILLING MACHINE?
※In order to ensure the accuracy, we are equipped with professional processing equipment.
※Each component before assembly needs strictly control by inspecting personnel. ※Each assembly is in charged by a master who has working experience for more than 6 years. ※After all the machines are completed, we will connect them together and run the full production line for at least 12 hours to ensure the stable running in clients' factory. ※We offer whole filling line testing production service in our factory for hours by request.

Q: WHAT WARRANTY OF FILLING MACHINE CAN I GET FROM MINGSTAR?
※Two years warranty after receiving the equipment . Free spare parts and technical supports. ※New client guarantee programme offers longer warranty and customized after service. ※Local after service network is under construction. ※Annual engineer visiting for diagnosis and updating service.

Q: Any other questions?
※Send inquiry to Mingstar. ※Chat now through Alibaba APP. ※Call us or reserve a call.
