Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades
Specifications
Certification :
ISO9001:2015
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
Brand Name :
Guelinmen
Product Name :
Aluminum Honeycomb Panels
Packaging Details :
Protective film, wooden frame
Production Ability :
10000 pieces per month
Model Number :
GLM-FA
Material :
Aluminim Plate and Honeycomb Core
Payment Terms :
T/T,L/C,FOB,CIF
Aluminum Alloy :
3003/5005
Price :
26-90 USDS per piece
Feature :
Fireproof, Waterproof, Thermal Insulation, Sound Absorption and Vibration Damping Properties
Supply Ability :
10000 pieces per month
Aluminum Thickness :
0.35mm-1.2mm and Customized
MOQ :
280 pieces
Delivery Time :
5-15 work days
Application :
Building facades, Interior feature walls, Furniture
Temperature Tolerance :
-60℃~ +120℃
Place of Origin :
Guangzhou China
Width :
1220mm and Customized
Description

Aluminum Honeycomb Panel All-Weather Durability Aerospace Tech For Iconic Facades

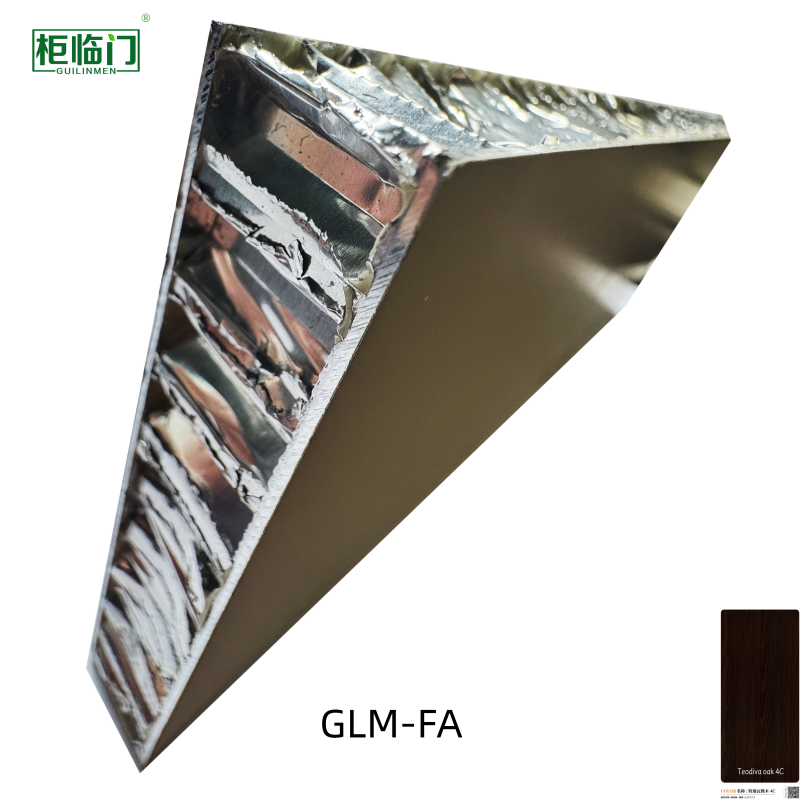

Our aluminum honeycomb panels combine lightweight aluminum skins and hexagonal honeycomb cores for outstanding stiffness and dimensional stability. Light enough to cut structural load, they excel in heat insulation, noise reduction and weather resistance. Fully customizable in size, thickness and surface coating, they serve all exterior curtain wall and interior decoration scenarios with easy installation and low maintenance.

Advantages
  • Aerospace Tech for Modern Building Facades
  • Lightweight Strength, Timeless Architecture
  • Ultra Flat, Ultra Light, Ultra Durable
  • Honeycomb Core: Maximum Rigidity, Minimum Weight
  • Fireproof, Soundproof, Recyclable Cladding Solution
  • Less Load, More Design Freedom
  • Premium Composite Panel for Exterior & Interior
  • Lighten Up, Strengthen Up
Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm

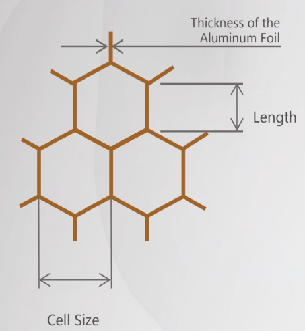

Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

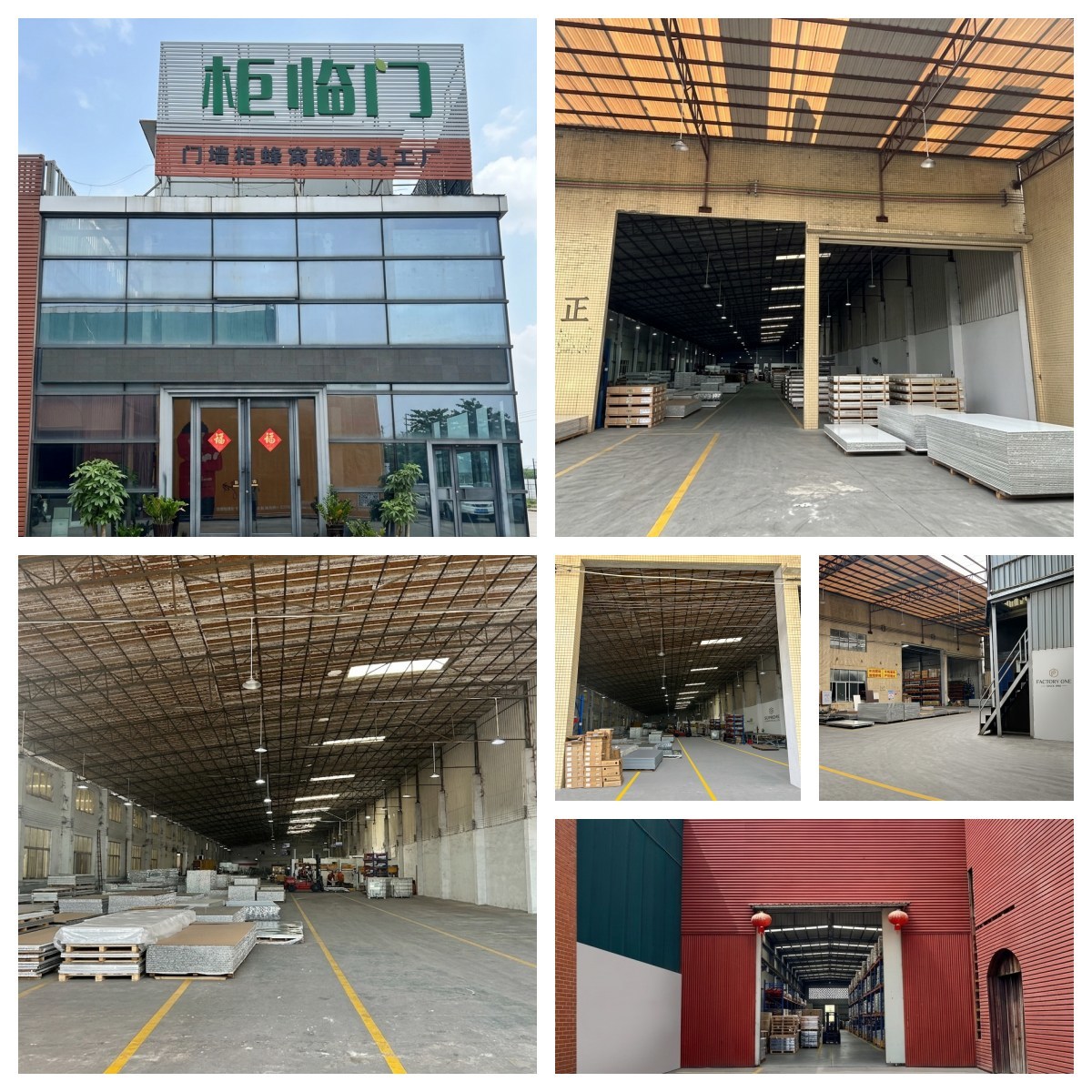

Overview of Our Factory

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

Aerospace Grade Aluminum Honeycomb Panel For Iconic Facades

FAQ
Q1:Do you offer OEM and ODM services?
A: Yes. We provide professional OEM and ODM services, including customized panel sizes, thicknesses, aluminum alloy, surface finishes, colors, structures, logos and packaging. Our R&D and manufacturing teams can also support customized solutions for specific projects and applications.
Q2: How to clean and maintain it in daily life?

A:Wipe with clean water and neutral detergent; Prohibit the use of strong acids, strong alkalis, and steel wire ball polishing; Outdoor rainwater self-cleaning, fluorocarbon surface dust is easy to wash away.

Q3: What is the packaging of the goods?

A: We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.

Q4: What is your payment term?

A: We accept the payment terms: T/T, L/C, FOB, CIF.

Q5: How do you ensure consistent quality for bulk orders?

A: As an integrated R&D and manufacturing factory, we control the production process from raw materials to finished panels. Each batch is inspected for dimensions, flatness, surface quality, bonding strength and other key specifications to ensure stable and consistent quality.

Q6: What is your production lead time and how do you handle urgent orders?
A: Lead time depends on product specifications, quantity and customization requirements. We provide a clear production schedule after order confirmation and work closely with customers to meet their shipping deadlines. Standard and customized orders can be arranged according to production capacity.
