Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture
Specifications
Certification :
ISO9001:2015
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
Model Number :
GLM-FA
Brand of Product :
Guilinmen
MOQ :
280 pieces
Delivery Time :
5-15 work days
Aluminum Thickness :
0.35mm-1.2mm and Customized
Design Style :
Modern
Payment Terms :
T/T,L/C,FOB,CIF
Material :
Aluminim Plate and Honeycomb Core
After-sale Service :
Online Technical Support
Price :
26-90 USDS per piece
Panel Thickness :
8-18mm and Customized
Supply Ability :
10000 pieces per month
Advantage :
Fireproof, Waterproof, Thermal Insulation, Sound Absorption and Vibration Damping Properties
Production Ability :
10000 pieces per month
Brand Name :
Guelinmen
Product Name :
Aluminum Honeycomb Panels
Packaging Details :
Protective film, wooden frame
Waranty :
More Than 10 Years
Place of Origin :
Guangzhou China
Usage :
Building facades, Interior feature walls, Furniture
Description

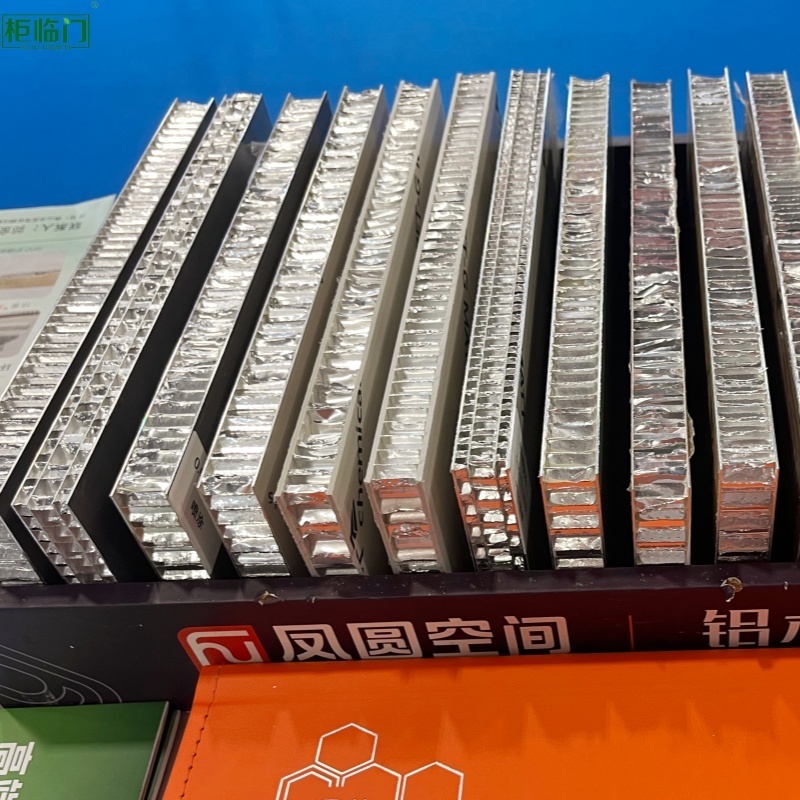

Full-aluminum Honeycomb Panel
Inspired by aerospace structural technology, our all-aluminum honeycomb panel redefines modern architectural and furniture decoration materials. Built with a pure aluminum sandwich structure, it perfectly balances lightweight texture and extraordinary structural stability, breaking the limitations of heavy, easily deformed traditional decorative panels.
Features

• Extremely Lightweight but structurally strong

• High Rigidity and Flatness across large surfaces

• Fire-resistant with FR-rated cores

• Corrosion and Weather Resistant

• Good Sound and Thermal Insulation

• Easy to Cut and Fabricate


Key attributes

Product Name Aluminum honeycomb panels
Brand Name Guilinmen
Usage Building curtain walls, interior finishing and all-aluminum furniture
Surface treatment PVDF painting/power painting/heat transfer/coating

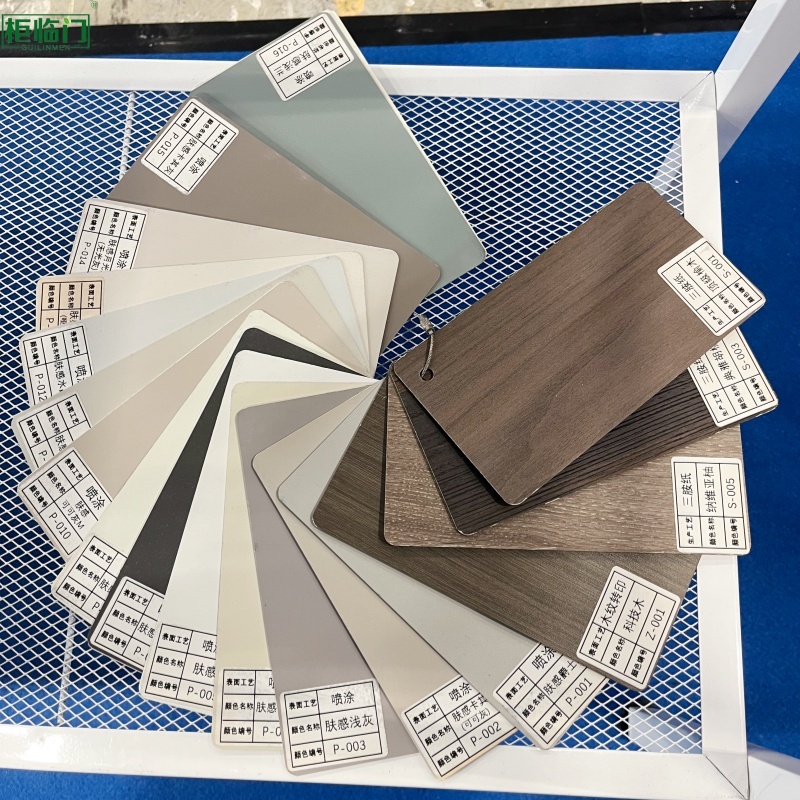

Color RAL Color,wood-grain,customized colors
Core Structure Hexagonal Aluminum Honeycomb Core
Materials Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003
Thickness 10mm – 50mm
Size Common size:1220mm×2440mm,1220mm×2750mm,customized size
Warranty More than 10 years
Production capacity 100000 Square Meters/month
After-sale Service Technical support for installation


Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm

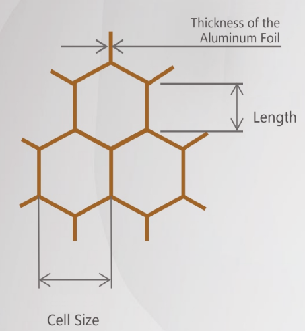

Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture

Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture



Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture

Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture

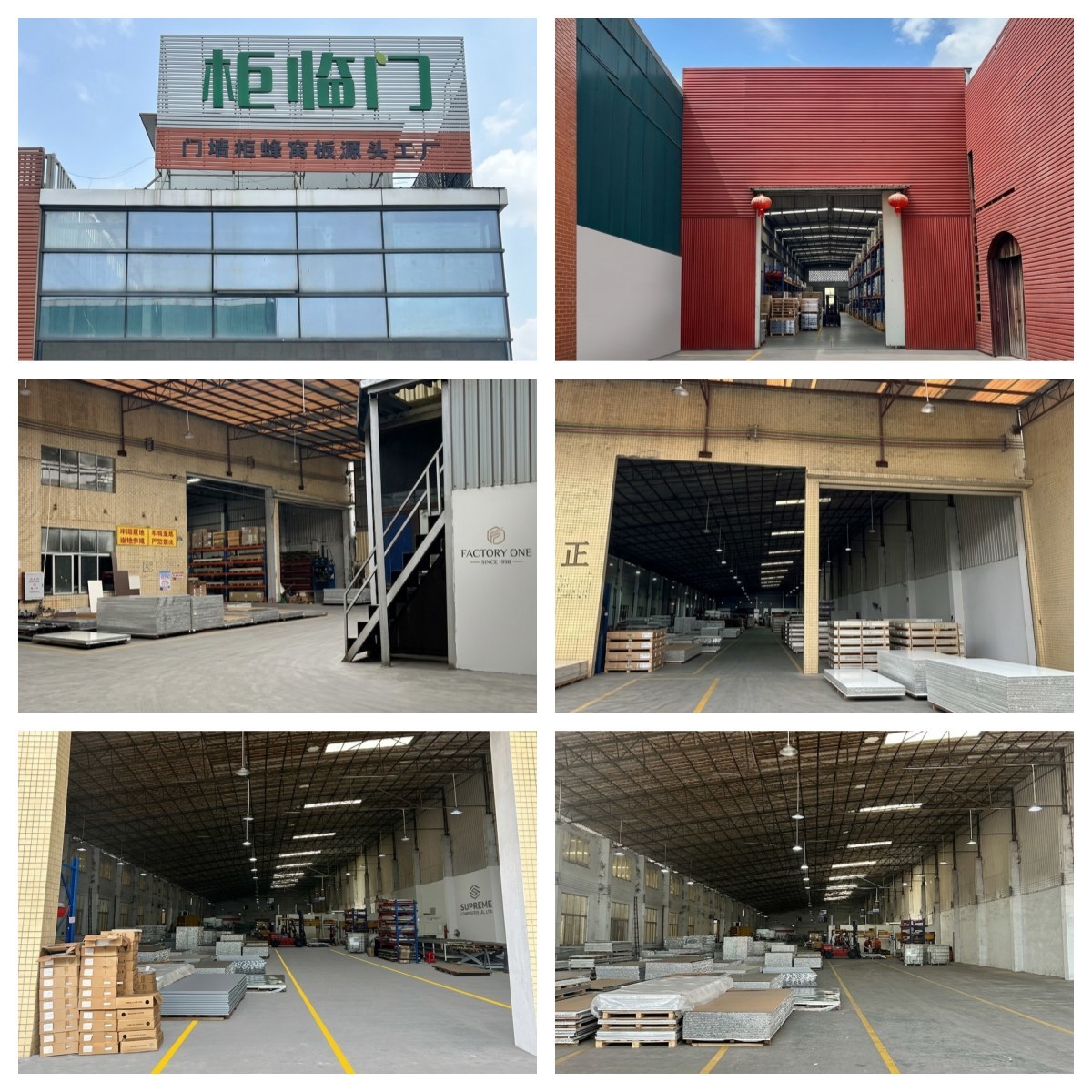

Overview of Our Factory

Fireproof Waterproof Aluminum Honeycomb Sheets for Building Curtain Wall Interior Furniture

FAQ
Q1: Are aluminum honeycomb panels fire-resistant?

A: Yes, our fire-rated aluminum honeycomb panels achieve A1 grade non-combustible fire rating (EN 13501-1), meeting the highest safety standards for public and commercial buildings.

Q2: How to clean and maintain it in daily life?

A:Wipe with clean water and neutral detergent; Prohibit the use of strong acids, strong alkalis, and steel wire ball polishing; Outdoor rainwater self-cleaning, fluorocarbon surface dust is easy to wash away.

Q3: What is the packaging of the goods?

A: We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.

Q4: What is your payment term?

A: We accept the payment terms: T/T, L/C, FOB, CIF.

Q5: How do you ensure consistent quality for bulk orders?

A: As an integrated R&D and manufacturing factory, we control the production process from raw materials to finished panels. Each batch is inspected for dimensions, flatness, surface quality, bonding strength and other key specifications to ensure stable and consistent quality.

Q6: What is your production lead time and how do you handle urgent orders?
A: Lead time depends on product specifications, quantity and customization requirements. We provide a clear production schedule after order confirmation and work closely with customers to meet their shipping deadlines. Standard and customized orders can be arranged according to production capacity.
