Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing
Specifications
Certification :
ISO9001:2015
Panel Thickness :
8-18mm and Customized
Model Number :
GLM-FA
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
Payment Terms :
T/T,L/C,FOB,CIF
Material :
Aluminim Plate and Honeycomb Core
Price :
26-90 USDS per piece
Feature :
Fireproof, Waterproof, Thermal Insulation, Sound Absorption and Vibration Damping Properties
Supply Ability :
10000 pieces per month
Bonding Adhesive :
Epoxy resin / Polyurethane / Heat-cured
Fire Rating :
A2 / B1 (per EN13501-1)
MOQ :
280 pieces
Delivery Time :
5-15 work days
Usage :
Building facades, Interior feature walls, Furniture
Production Ability :
10000 pieces per month
Brand Name :
Guelinmen
Product Name :
Aluminum Honeycomb Panels
Packaging Details :
Protective film, wooden frame
After-sale Service :
Online Technical Support
Place of Origin :
Guangzhou China
Aluminum Thickness :
0.35mm-1.2mm and Customized
Description
Lightweight Fireproof Aluminum Honeycomb Panel For Interior Finishing

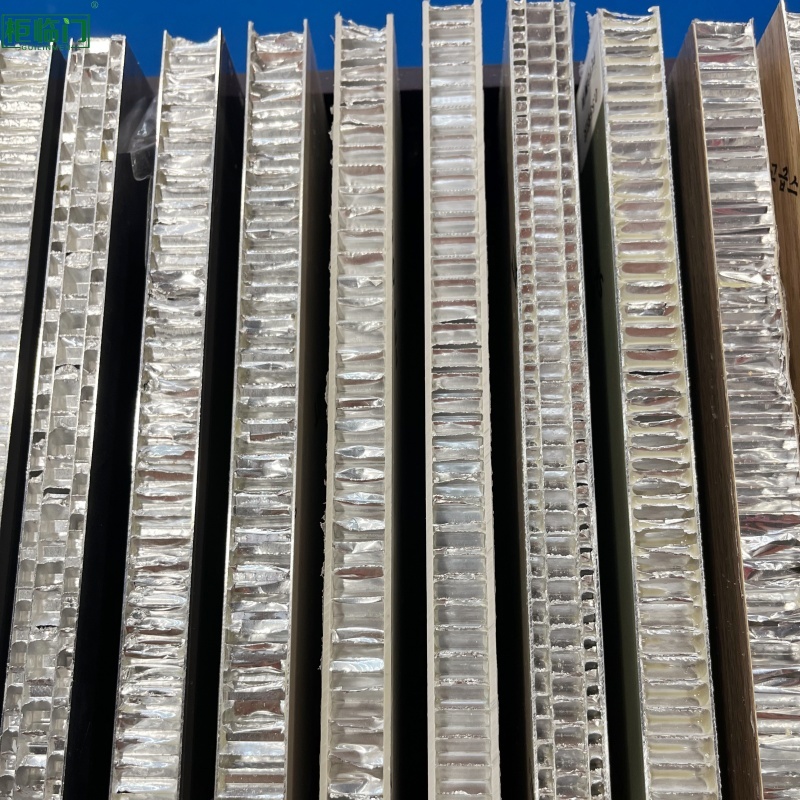

This all-aluminum sandwich panel adopts a three-layer composite structure: upper & lower aluminum alloy skins + aluminum hexagonal honeycomb core, bonded by high-strength environmental epoxy adhesive via hot-press integration. The honeycomb structure borrows aerospace load-bearing design, realizing high strength with only 30% weight of solid aluminum plates.
Advantages
  • Lightweight & high strength: Low surface load, reduces building main structure burden; no sagging or deformation on large-area installation
  • A-class non-combustible: 100% aluminum raw material, zero toxic smoke under fire, meets global construction fire codes
  • All-weather durability: Fully waterproof, anti-rust, anti-mold, termite-free, ideal for coastal, humid and underground spaces
  • Dual insulation: Honeycomb air cavity cuts heat transfer and absorbs noise, lowering building energy consumption
  • Eco & recyclable: Zero formaldehyde, fully recyclable aluminum, meets green building standards

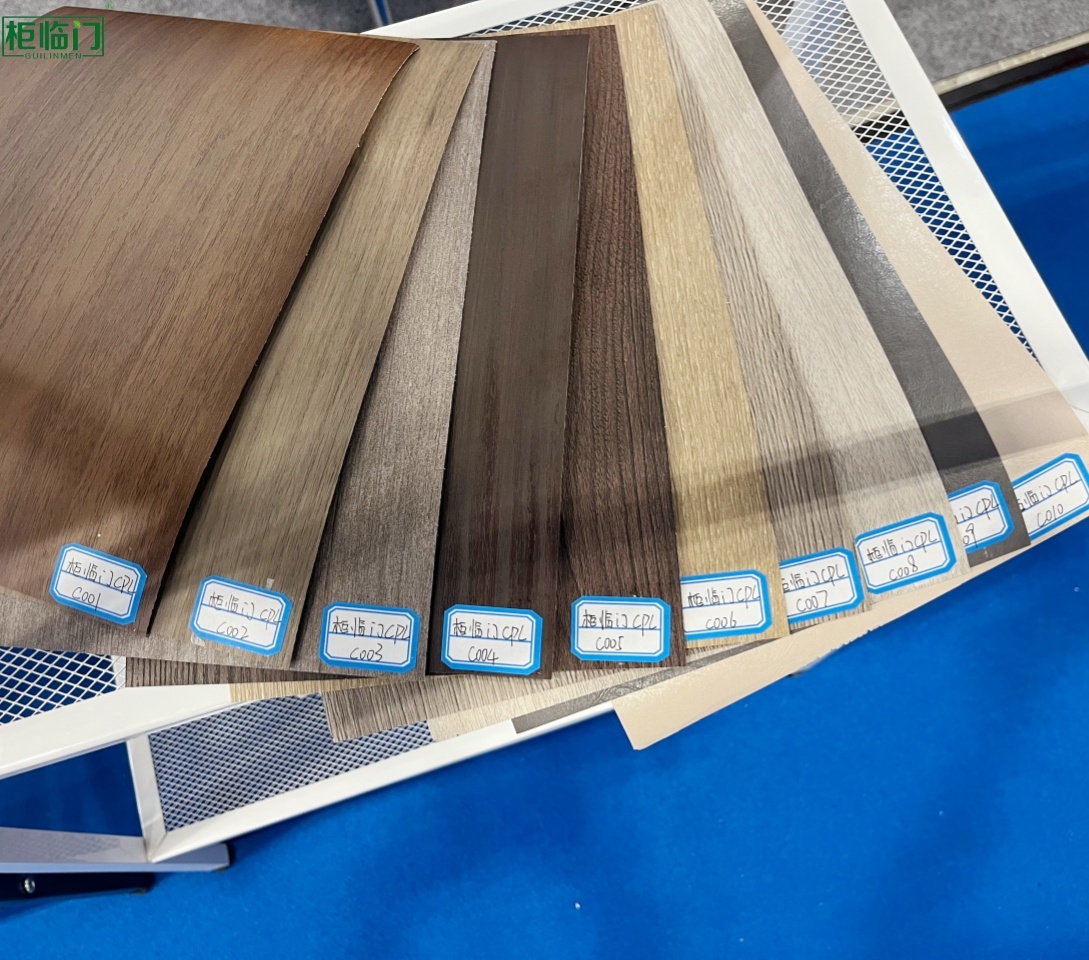

  • Rich surface options: PVDF fluorocarbon coating, powder coating, wood grain transfer, brushed, mirror finish, customizable RAL colors

Key attributes

Product Name Aluminum honeycomb panels
Brand Name Guilinmen

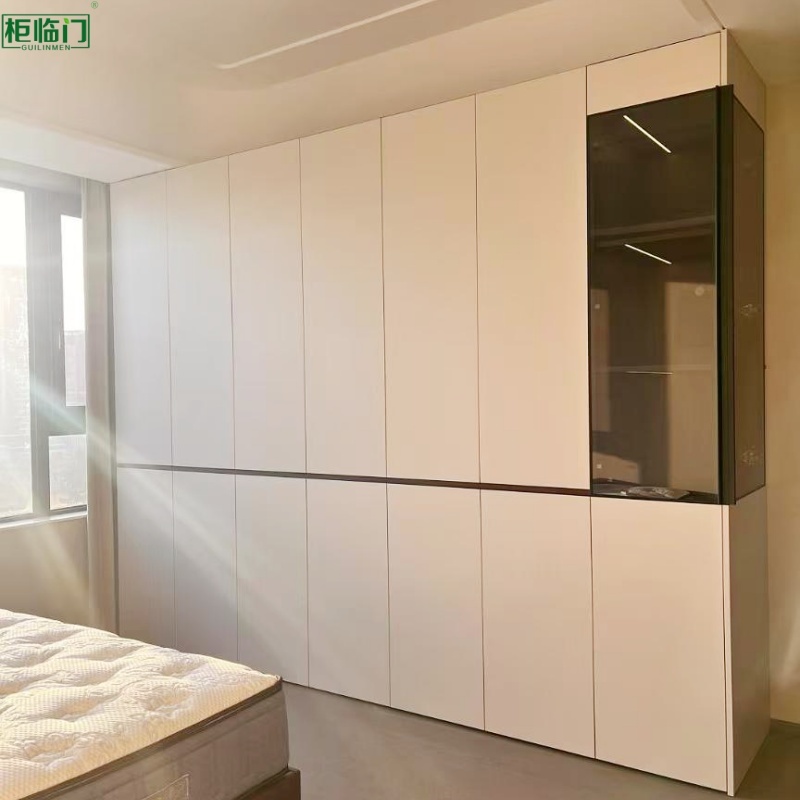

Usage Building curtain walls, interior finishing and all-aluminum furniture
Surface treatment PVDF painting/power painting/heat transfer/coating
Color RAL Color,wood-grain,customized colors
Core Structure Hexagonal Aluminum Honeycomb Core
Materials Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003
Thickness 10mm – 50mm
Size Common size:1220mm×2440mm,1220mm×2750mm,customized size
Warranty More than 10 years
Production capacity 100000 Square Meters/month
After-sale Service Technical support for installation


Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm

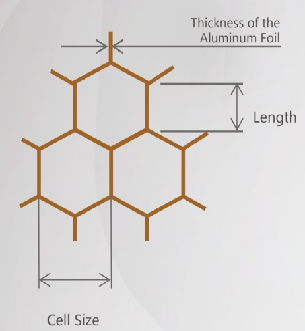

Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing

Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing

Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing



Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing

Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing

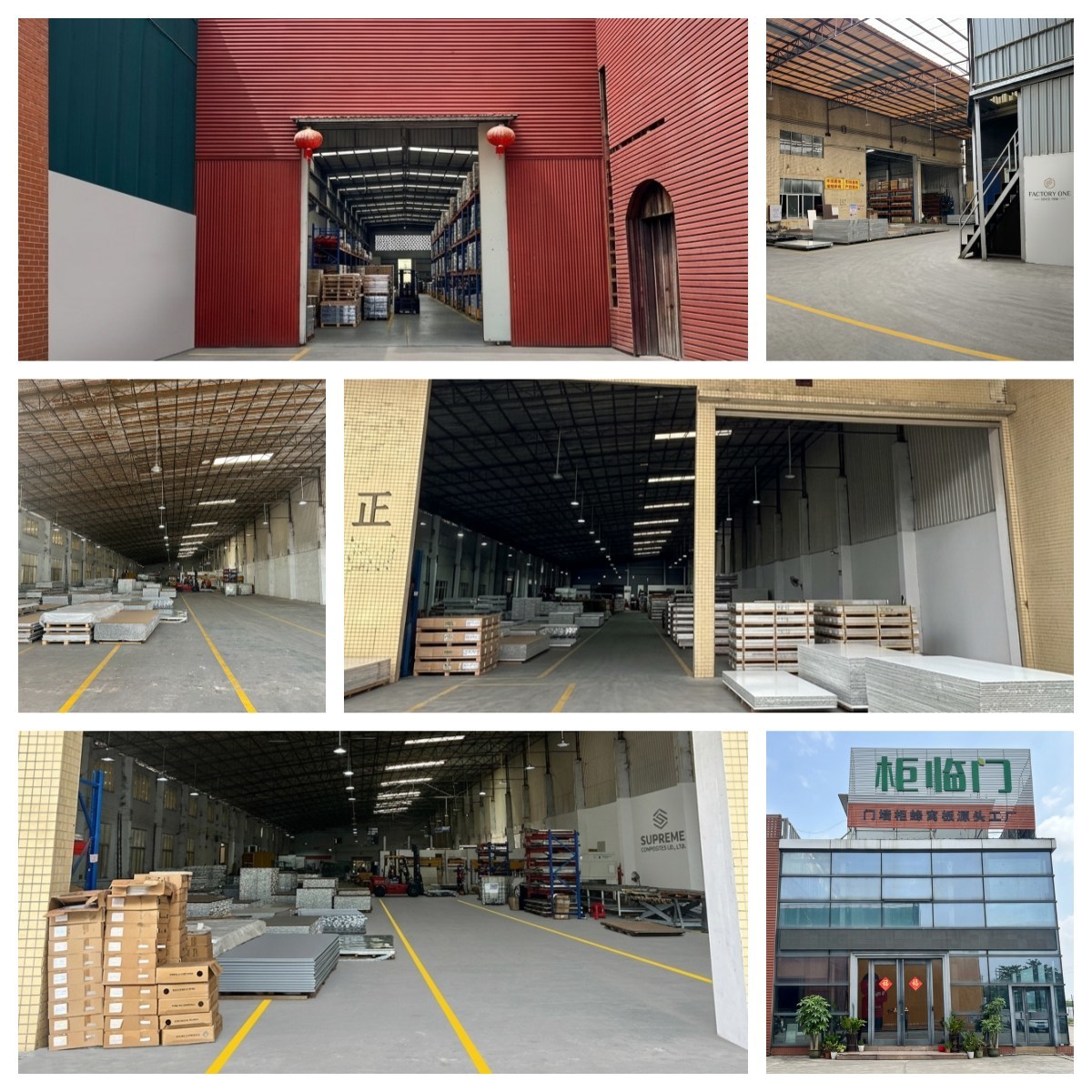

Overview of Our Factory

Lightweight Fireproof Aluminium Honeycomb Board for Interior Finishing

FAQ

Q1: Do you offer OEM and ODM services?
A: Yes. We provide professional OEM and ODM services, including customized panel sizes, thicknesses, aluminum alloy, surface finishes, colors, structures, logos and packaging. Our R&D and manufacturing teams can also support customized solutions for specific projects and applications.

Q2: What is your MOQ and can I order samples first?

A: Yes. We support samples and trial orders before bulk purchasing. MOQ depends on the panel specification, finish and customization requirements. We offer flexible solutions for distributors, wholesalers and project buyers.

Q3: What is the packaging of the goods?

A: We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.

Q4: What is your payment term?

A: We accept the payment terms: T/T, L/C, FOB, CIF.

Q5: What are the transportation methods?

A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.

Q6: Can I get a sample?

A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost

Q7: How long does it take for an order to be shipped?

A: It will take approximately 10-15 days. It depands on the quantity of the order.
