Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls
Specifications
Certification :
ISO9001:2015
Material :
Aluminim Sheet and Honeycomb Core
Brand Name :
Guilinmen
Product Name :
All-Aluminum Honeycomb Panels
Packaging Details :
Protective film, wooden frame
Fire Rating :
A2 / B1 (per EN13501-1)
Place of Origin :
Guangzhou China
Application :
Building facades, Interior feature walls, Furniture
Model Number :
GLM-FA
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
Payment Terms :
T/T,L/C,FOB,CIF
Aluminum Thickness :
0.35mm-1.2mm and Customized
Price :
26-90 USDS per piece
Advantage :
Fireproof, Waterproof, Thermal Insulation
Supply Ability :
10000 pieces per month
Edge :
Open/Close
Production Ability :
10000 pieces per month
MOQ :
280 pieces
Delivery Time :
5-15 work days
Panel Thickness :
8-18mm and Customized
After-sale Service :
Online Technical Support
Description

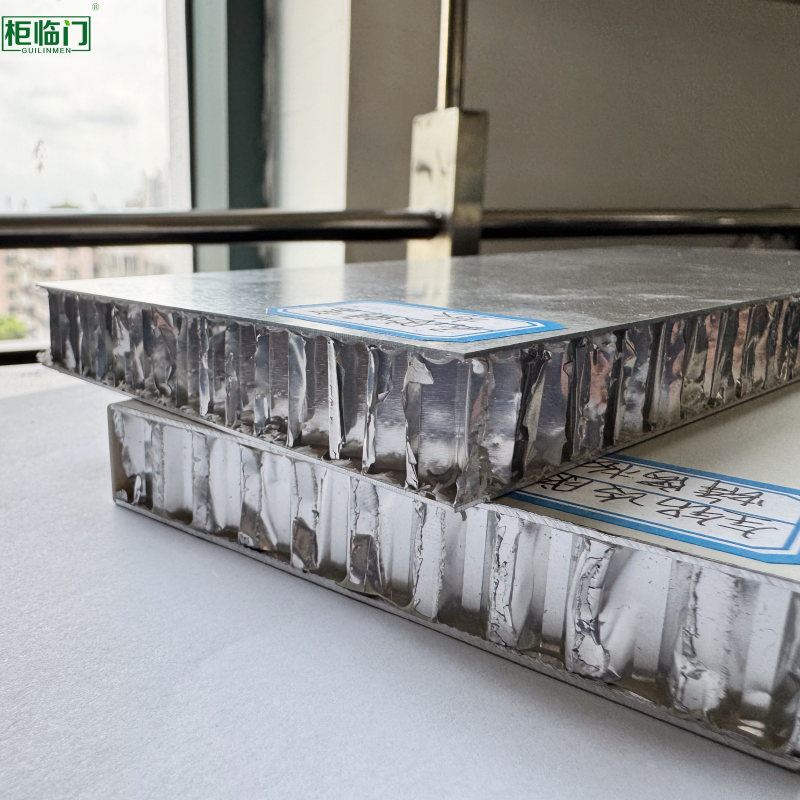

All-aluminum Honeycomb Panel Ultra Flat/Light/Stable For Curtain Walls
Our aluminum honeycomb panel inherits mature aerospace sandwich technology, bonding two high-precision aluminum skins with solid aluminum honeycomb core. It achieves a perfect balance of ultra-light weight and outstanding structural rigidity, far superior to traditional solid aluminum sheets, wood and stone panels.
Class A1 fire resistance, full waterproof performance, anti-corrosion and termite-proof features make it fit coastal and humid regions. Excellent sound and thermal insulation efficiently optimize building energy consumption. With customizable curved, perforated and wood-grain finishes, it serves as the premium material for landmark curtain walls, large ceilings and interior decorative walls. 100% recyclable and eco-friendly, it complies with global green construction standards.
Features
• Aerospace-Grade Aluminum Honeycomb Panel, Lightweight Yet Unmatched Strength.
• One Sandwich Structure, Endless Premium Architectural Possibilities.

• Zero Formaldehyde, Fireproof & Waterproof, Built to Last Decades.

• Ultra Flat, Ultra Light, Ultra Stable — The Gold Standard for Curtain Walls.

• Resist Corrosion, Termites, Humidity & Noise, Ideal for all Scenarios.


Key attributes

Product Name Aluminum honeycomb panels
Brand Name Guilinmen
Usage Building curtain walls, interior finishing and all-aluminum furniture
Surface treatment PVDF painting/power painting/heat transfer/coating
Color RAL Color, Wood-grain, Customized colors
Core Structure Hexagonal Aluminum Honeycomb Core
Materials Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003
Thickness 10mm – 50mm
Size Common size:1220mm×2440mm,1220mm×2750mm,customized size
Warranty More than 10 years
Production capacity 100000 Square Meters/month
After-sale Service Technical support for installation
Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel thickness 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm
Aluminum Skin thickness 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper, PP, Flame-retardant sheet, PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm, Max 0.1mm
Honeycomb Core Cell Size Micro-Aperture Honeycomb: 1/10"(2.6mm), 1/8"(3.17mm), 1/6"(3.47mm), 1/5"(5.2mm); Regular Honeycomb: 1/4"(6.35mm), 1/3"(8.47mm), 3/8"(9.53mm), 1/2"(12.7mm), 3/4"(19.05mm), 4/5"(20.32mm), 1"(25.9mm)
Honeycomb Core Side Length Micro-Aperture Honeycomb: 1.5mm, 1.83mm, 2mm, 2.5mm, 3mm; Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge Close Edge, Open Edge

Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls

Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls


Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls




Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls

Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls

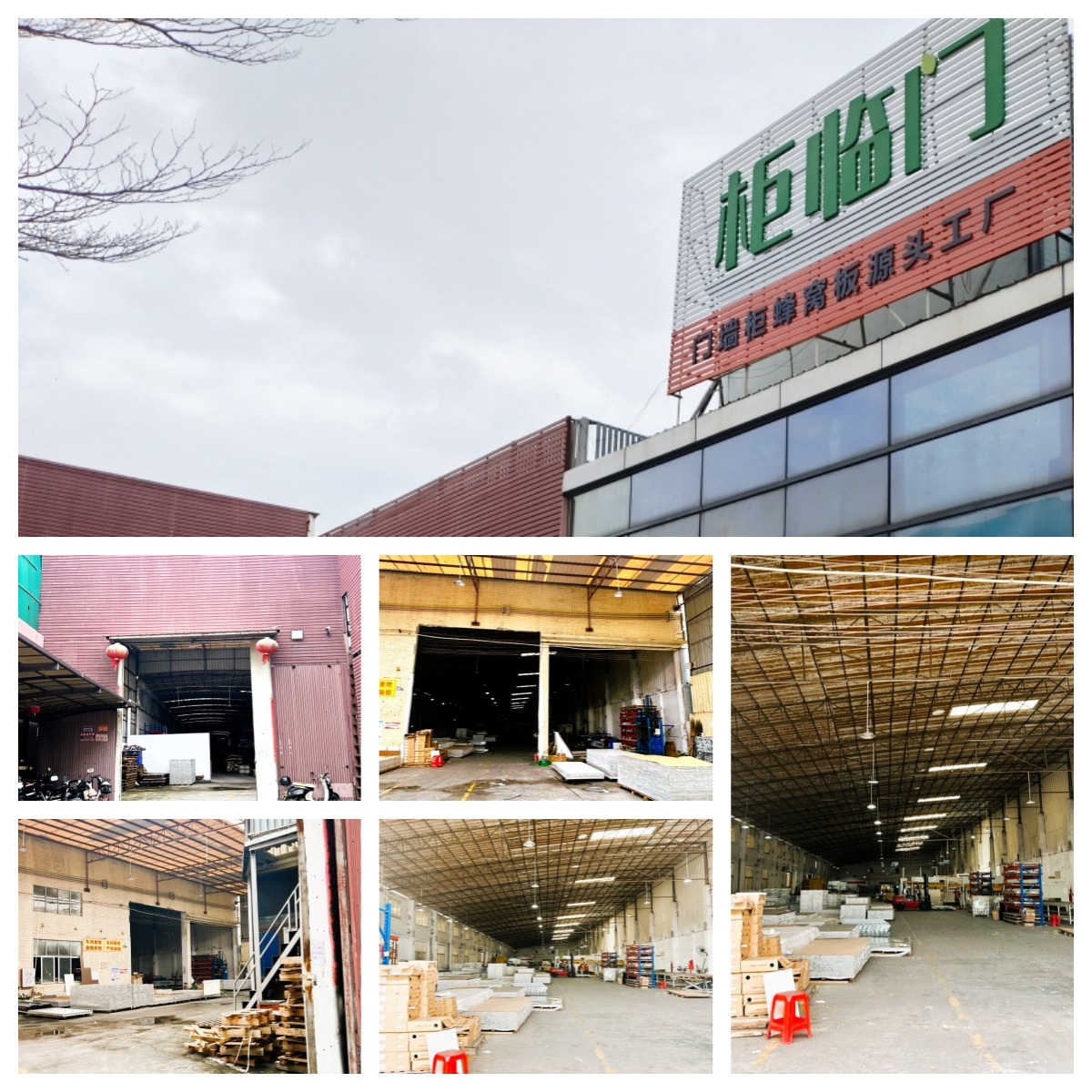

Overview of Our Factory

Ultra Flat All Aluminum Honeycomb Panel Lightweight For Curtain Walls

FAQ

Q1: Are aluminum honeycomb panels fire-resistant?

A: Yes, our fire-rated aluminum honeycomb panels achieve A1 grade non-combustible fire rating (EN 13501-1), meeting the highest safety standards for public and commercial buildings.

Q2:How to clean and maintain it in daily life?

A:Wipe with clean water and neutral detergent; Prohibit the use of strong acids, strong alkalis, and steel wire ball polishing; Outdoor rainwater self-cleaning, fluorocarbon surface dust is easy to wash away.

Q3: What is the packaging of the goods?

A:We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.

Q4: What is your payment term?

A: We accept the payment terms: T/T, L/C, FOB, CIF.

Q5: What are the transportation methods?

A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.

Q6: Can I get a sample?

A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost

Q7: How long does it take for an order to be shipped?

A: It will take approximately 10-15 days.
