Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation
Specifications
Certification :
ISO9001:2015
Material :
Aluminim Plate and Honeycomb Core
Model Number :
GLM-FA
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
MOQ :
280 pieces
Delivery Time :
5-15 work days
Panel Thickness :
8mm – 50mm and Customized
Production Ability :
10000 pieces per month
Payment Terms :
T/T,L/C,FOB,CIF
Advantage :
Fireproof, Waterproof, Thermal Insulation
Price :
26-90 USDS per piece
Aluminum Thickness :
0.35mm-1.2mm and Customized
Supply Ability :
10000 pieces per month
After-sale Service :
Online Technical Support
Brand Name :
Guilinmen
Product Name :
Aluminum Honeycomb Plates
Packaging Details :
Protective film, wooden frame
Place of Origin :
Guangzhou China
Application :
Building facade/ interior wall / ceiling
Description

Good Sound And Heat Insulation Aluminum Honeycomb Plate Manufacturer

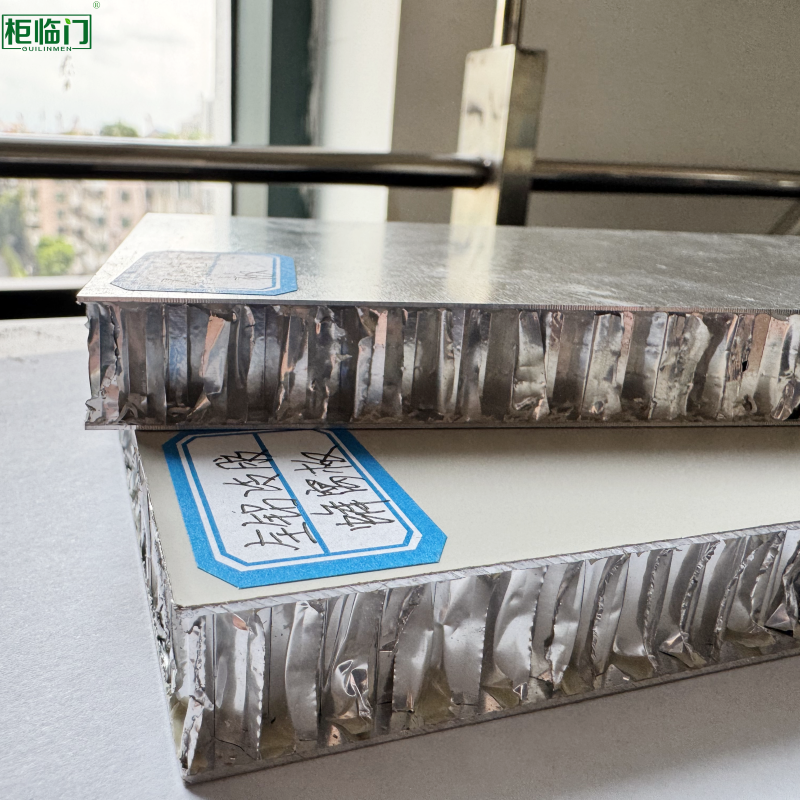

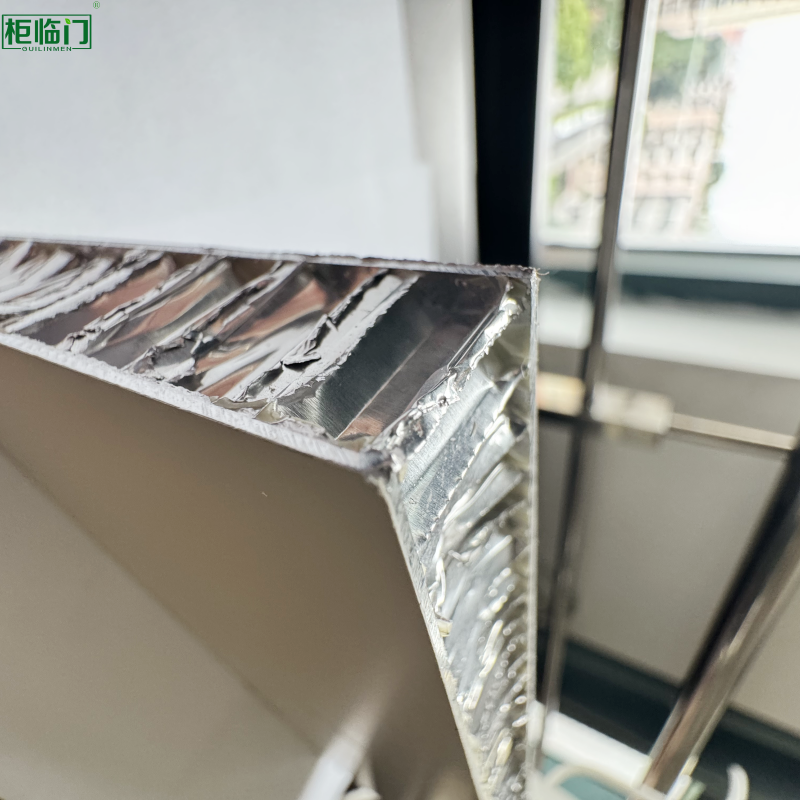

Aluminum honeycomb panels are high-performance composite cladding solutions designed for modern exterior and interior architecture. These systems consist of two thin aluminum skins bonded to a hexagonal aluminum honeycomb core, creating an exceptional strength-to-weight ratio that is unmatched by any other metal cladding material. They offer a perfect balance of structural integrity, aesthetic versatility and functional performance.

The honeycomb core structure provides superior rigidity and flatness even in very large panel sizes, while remaining extremely lightweight. This unique construction also offers excellent thermal insulation, sound absorption and vibration damping properties, making them ideal for a wide range of architectural applications from high-rise building facades to interior feature walls.

Key Advantages

⟩ Unmatched Strength-to-Weight Ratio

⟩ Fire Safety

⟩ Weather & Corrosion Resistance

⟩ Superior Flatness

⟩ Eco-Friendly

Perfect Application Scenarios
  • Indoor: ceiling, background wall, whole-house cabinet, partition wall
  • Outdoor: building curtain wall, exterior wall cladding
  • Commercial: airport, hotel, shopping mall, exhibition hall decoration
Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation

Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation


Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation

Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation

Overview of Our Factory

Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation

Eco Friendly Aluminum Honeycomb Plate With Sound Heat Insulation

FAQ
Q1: Are aluminum honeycomb panels fire-resistant?

A: Yes, our fire-rated aluminum honeycomb panels achieve A1 grade non-combustible fire rating (EN 13501-1), meeting the highest safety standards for public and commercial buildings.

Q2: How to clean and maintain it in daily life?

A:Wipe with clean water and neutral detergent; Prohibit the use of strong acids, strong alkalis, and steel wire ball polishing; Outdoor rainwater self-cleaning, fluorocarbon surface dust is easy to wash away.

Q3: What is the packaging of the goods?

A:We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.

Q4: What is your payment term?

A: We accept the payment terms: T/T, L/C, FOB, CIF.

Q5: How do you ensure consistent quality for bulk orders?

A: As an integrated R&D and manufacturing factory, we control the production process from raw materials to finished panels. Each batch is inspected for dimensions, flatness, surface quality, bonding strength and other key specifications to ensure stable and consistent quality.

Q6: What is your production lead time and how do you handle urgent orders?
A: Lead time depends on product specifications, quantity and customization requirements. We provide a clear production schedule after order confirmation and work closely with customers to meet their shipping deadlines. Standard and customized orders can be arranged according to production capacity.
