Specifications
Certification :
ISO9001:2015
Material :
Aluminim Sheet and Honeycomb Core
Model Number :
GLM-FA
Color :
RAL Color, Wood-grain 45 Colors Options and Customized
MOQ :
280 pieces
Delivery Time :
5-15 work days
Panel Thickness :
8-18mm and Customized
After-sale Service :
Online Technical Support
Payment Terms :
T/T,L/C,FOB,CIF
Aluminum Thickness :
0.35mm-1.2mm and Customized
Brand Name :
Guelinmen
Price :
26-90 USDS per piece
Advantage :
Fireproof, Waterproof, Thermal Insulation
Supply Ability :
10000 pieces per month
Bonding Adhesive :
Epoxy resin / Polyurethane / Heat-cured
Production Ability :
10000 pieces per month
Product Name :
Aluminum Honeycomb Panels
Packaging Details :
Protective film, wooden frame
Fire Rating :
A2 / B1 (per EN13501-1)
Place of Origin :
Guangzhou China
Usage :
Building facades, Interior feature walls, Furniture
Description
High Rigidity And Flatness All-aluminum Honeycomb Panel For Furniture

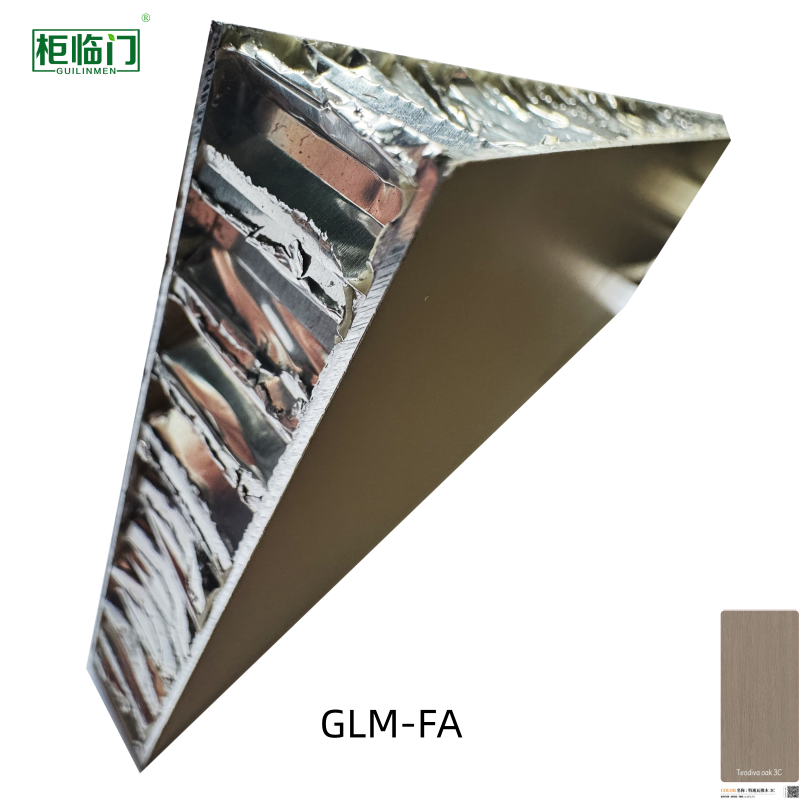

All-aluminum honeycomb panel is aerospace-derived sandwich composite with aluminum skins and honeycomb core. Light, sturdy, fire/water/corrosion/termite resistant, sound & heat insulating. Ideal for curtain walls, interior decoration and all-aluminum furniture.
Features

♦ Extremely Lightweight but structurally strong

♦ High Rigidity and Flatness across large surfaces

♦ Fire-resistant with FR-rated cores

♦ Corrosion and Weather Resistant

♦ Good Sound and Thermal Insulation

♦ Easy to Cut and Fabricate


Key attributes

Product Name Aluminum honeycomb panels
Brand Name Guilinmen
Usage Building curtain walls, interior finishing and all-aluminum furniture
Surface treatment PVDF painting/power painting/heat transfer/coating
Color RAL Color, Wood-grain, Customized colors
Core Structure Hexagonal Aluminum Honeycomb Core
Materials Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003
Thickness 10mm – 50mm
Size Common size:1220mm×2440mm,1220mm×2750mm,customized size
Warranty More than 10 years
Production capacity 100000 Square Meters/month
After-sale Service Technical support for installation


Characters of Honeycomb Aluminum
Parameter Specification
Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel Thickness 4mm,8mm,10mm,15mm,25mm,Max 500mm
Aluminum Skin Thickness 0.5mm,0.8mm,1mm,1.5mm,Max 3mm
Coating Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc
Length 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width 1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness 0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm
Honeycomb Core Cell Size licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m)
Honeycomb Core Cell Length Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm
Edge Close Edge, Open Edge

High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture

High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture

High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture



High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture

High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture

Overview of Our Factory

High Rigidity Flatness All Aluminum Honeycomb Panel Weather Resistant For Furniture

FAQ

Q1. Do you offer OEM and ODM services?
A: Yes. We provide professional OEM and ODM services, including customized panel sizes, thicknesses, aluminum alloy, surface finishes, colors, structures, logos and packaging. Our R&D and manufacturing teams can also support customized solutions for specific projects and applications.

Q2. What is your MOQ and can I order samples first?
A: Yes. We support samples and trial orders before bulk purchasing. MOQ depends on the panel specification, finish and customization requirements. We offer flexible solutions for distributors, wholesalers and project buyers.

Q3. How do you ensure consistent quality for bulk orders?
A: As an integrated R&D and manufacturing factory, we control the production process from raw materials to finished panels. Each batch is inspected for dimensions, flatness, surface quality, bonding strength and other key specifications to ensure stable and consistent quality.

Q4. What is your production lead time and how do you handle urgent orders?
A: Lead time depends on product specifications, quantity and customization requirements. We provide a clear production schedule after order confirmation and work closely with customers to meet their shipping deadlines. Standard and customized orders can be arranged according to production capacity.

Q5. How do you pack Aluminum Honeycomb Panels for international shipping?
A: We use export-standard packaging designed for long-distance sea and land transportation. Panels can be packed with protective materials, pallets and customized packaging solutions to reduce the risk of damage during handling and transportation. We can also optimize container loading to help customers control shipping costs.
