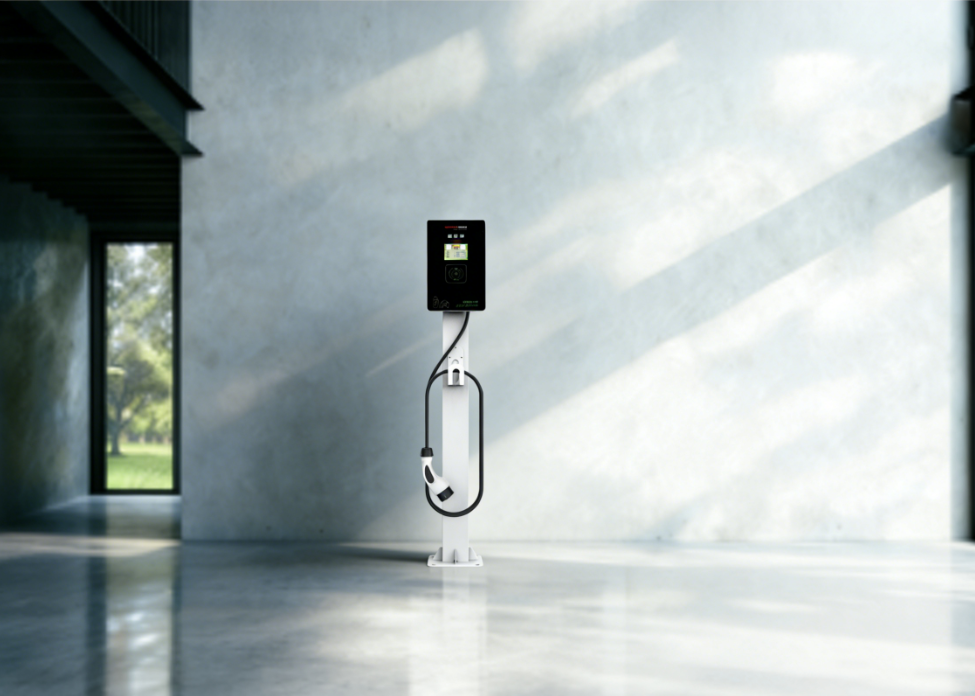

14kW AC Electric Vehicle Charger Waterproof For Commercial Use
14kW AC Electric Vehicle Charger Waterproof For Commercial Use
Specifications
Certification :
CE/CB
Place of Origin :
China
MOQ :
1
Price :
$400-600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Charging Connector :
National standard charging gun, CCS1, CCS2
Output Voltage :
220V AC
Typer of Input Power :
1P+N+PE
Wi-Fi :
Optional
Communication Protocol :
National Standard, OCPP1.6
Protection Level :
IP54
Description
14kW Wall Mounted AC Charging Pile
A versatile and durable charging solution designed for both residential and commercial applications with IP54 protection and compact design.
Key Features & Applications
  • Safe and Durable Construction: Sheet metal with tempered glass chassis provides rainproof and UV-resistant protection
  • Compact & Flexible Installation: IP54 protection rating allows wall mounting or ground installation with stand support
  • Cost-Effective Solution: Suitable for both home use and commercial applications
  • Advanced Display: Optional 4.3-inch high-brightness, low-temperature resistant LCD touch screen
  • Convenient Operation: Standard 4.5-meter rolling charging gun with scan and touch operation support
  • Multiple Payment Options: Supports card swiping (offline) and QR code scanning (online)
Intelligent Control & Connectivity
  • Multiple Networking Options: Ethernet, 4G, Wi-Fi connectivity
  • Platform Integration: Supports server background connection and multiple charging platforms
  • Payment Flexibility: WeChat payment and card payment options available
  • Remote Management: Supports remote upgrade capabilities
Safety Protection Features
  • Comprehensive Leakage Protection: Type A with extended Type B leakage protection
  • Multiple Safety Systems: Over-current, over-voltage, emergency stop, and over-temperature protection
14kW AC Electric Vehicle Charger Waterproof For Commercial Use
Technical Specifications
Model CH-AC0014-BE-34
Input Specifications
Type of Input Power 1P+N+PE
Rated Voltage 220V AC
Rated Current 64A
Frequency 50/60Hz
Output Specifications
Output Voltage 220V AC
Maximum Current 32Ax2
Rated Power 7kWx2
User Interface
Charging Connector National standard charging gun, CCS1, CCS2
Cabinet Material Galvanized Steel
Front Panel Black Tempered Glass
Indicator Green/Yellow/Red
LCD Screen 4.3-inch LCD touch screen (optional)
Card Reader Contactless card reader (optional)
Startup Mode Password/RFID card/QR code
Emergency Stop YES
Communication Interaction
Wi-Fi Optional
Ethernet Optional
4G Default/Optional
Communication Protocol National Standard, OCPP1.6
Security Protection
Metering Independent metering, MID certified optional
RCD Yes
Protection Level IP54
Electrical Safety Protection Over-current, residual current, short circuit, grounding, surge, over/under-voltage, over-temperature protection
Environmental Indicators
Installation Wall-mounted/Floor-mounted (stand support)
Working Temperature -20°C to +50°C
Working Humidity 5% to 95%
Working Altitude <2000m
Appearance & Dimensions
Product Size 356*221*136mm (H*W*D)
Package Size 490*330*210mm (L*W*H)
Net Weight 3.4kg
Gross Weight 4.2kg
Outer Packaging Carton
