7KW Wall Mounted AC EV Charger IP55 AC EV Charging Station CE CB Approval
7KW Wall Mounted AC EV Charger IP55 AC EV Charging Station CE CB Approval
Specifications
Certification :
CE/CB
Place of Origin :
china
MOQ :
1
Price :
$300-$500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Ip Grade :
IP55
Rated Power :
7kw
Communication Protocol :
National Standard, OCPP1.6
RCD :
Yes
Protection Level :
IP54
Product Size :
356*221*136mm(H*W*D)
Description

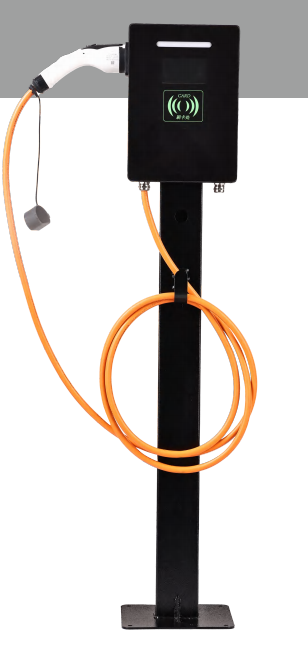

7KW Wall Mounted AC Charging Pile
A safe and durable AC charging solution designed for both residential and commercial applications, featuring compact design and multiple installation options.
Key Features & Applications
  • "Sheet metal + tempered glass" chassis design with rainproof and anti-ultraviolet properties
  • Suitable for both outdoor and underground parking lot charging stations
  • Compact design with easy installation and IP54 protection rating
  • Wall-mounted or floor-mounted (with stand support) installation options
  • Cost-effective solution for home and commercial use
  • Optional 4.3-inch high-brightness, low-temperature resistant LCD touch screen
  • Standard 4.5-meter rolling charging gun (customizable length)
  • Supports scanning and touch operation for ease of use
  • Dual operation modes: card swiping (offline) and QR code scanning (online)
Intelligent Control System
  • Multiple networking options: Ethernet, 4G, Wi-Fi
  • Server background connection capability with multi-platform charging support
  • Payment options: WeChat payment and card payment
  • Online and offline operation capability
  • Remote upgrade functionality
Safety Protection Features
  • Type A leakage protection with extended type B leakage protection function
  • Comprehensive protection: over-current, over-voltage, emergency stop, and over-temperature protection
  • Independent metering with optional MID certification for European and American markets
  • RCD protection included
  • Multiple electrical safety protections: residual current, short circuit, grounding, surge, and over/under-voltage protection
other
Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
7KW Wall Mounted AC EV Charger IP55 AC EV Charging Station CE CB Approval
Technical Specifications
Specification CH-AC0070-BE-34
Input Type 1P+N+PE
Rated Voltage 220V AC
Rated Current 32A
Frequency 50/60Hz
Output Voltage 220V AC
Maximum Current 32A
Rated Power 7kW
Charging Connector National standard charging gun, CCS1, CCS2
Cabinet Material Galvanized Steel
Front Panel Black Tempered Glass
Indicator Green/Yellow/Red
LCD Screen 4.3-inch LCD touch screen
Card Reader Contactless card reader
Startup Mode Password/RFID card/QR code
Emergency Stop YES
Wi-Fi Optional
Ethernet Optional
4G Default/Optional
Communication Protocol National Standard, OCPP1.6
Protection Level IP54
Installation Wall-mounted/Floor-mounted (stand support)
Working Temperature -20°C to +50°C
Working Humidity 5% to 95%
Working Altitude <2000m
Product Size 356*221*136MM (H*W*D)
Package Size 490*330*210MM (L*W*H)
Net Weight 3.4kg
Gross Weight 4.2kg
Outer Packaging Carton
