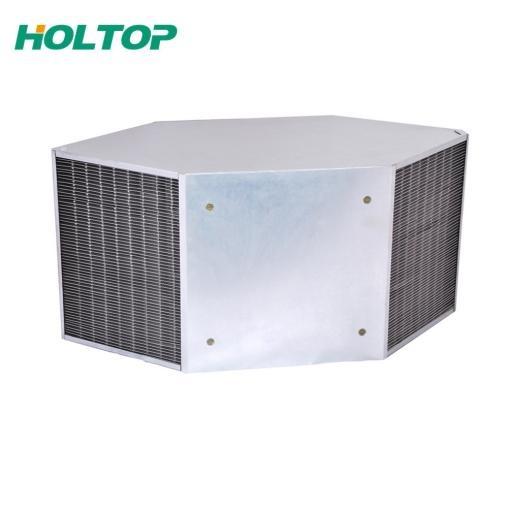

Fresh Air Plate Cross Counterflow Heat Exchanger Current Flow ODM
Fresh Air Plate Cross Counterflow Heat Exchanger Current Flow ODM
Specifications
Brand Name :
Holtop
Place of Origin :
Beijing, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
200000 units per year
Delivery Time :
Two weeks
Packaging Details :
box
Model Number :
HBS-LB539/316
Certification :
CE
Product name :
Hot Sale Plate Cross Counterflow Heat Exchanger
Model :
HBS-LB539/316
Type :
Cross counter flow sensiable heat exchanger (Recuperator)
Material :
Aluminum Foils
Heat recovery efficiency :
up to 90%
Description

Hot Sale Plate Cross Counterflow Heat Exchanger

This Hot Sale Plate Cross Counterflow Heat Exchanger stands out for its high efficiency. It features a resin framework with parallel heat exchange channels, a hexagonal structure for efficient heat exchange, and specially designed ER paper heat exchange material.

● Model: HBS-LB539/316
● Type: Cross counter flow sensiable heat exchanger (Recuperator)
● Material: Aluminum Foils
● Total separation of Fresh Air & Exhaust Air
● Heat recovery efficiency up to 90%
● Two sides press shaping
● Single folded edge,good sealing


Products Detail


Working principle of Air to Air Cross Counterflow Plate Type Sensible Heat Exchangers (Recuoperator)


Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated. Fresh Air Plate Cross Counterflow Heat Exchanger Current Flow ODM


Main features of Holtop High Efficiency Heat recuperators

1. Sensible heat recovery core
2.Total separation of fresh & exhaust air streams
3.Heat recovery efficiency up to 90%
4.2-side press shaping
5.Single folded edge
6.Completely joint sealing


Fresh Air Plate Cross Counterflow Heat Exchanger Current Flow ODM


Specifications


Model A(mm) B(mm) Length per piece (C) Optional spacing (mm)
HBS-LB539/316 316 539 Custom-made Max. 650mm 2.1
