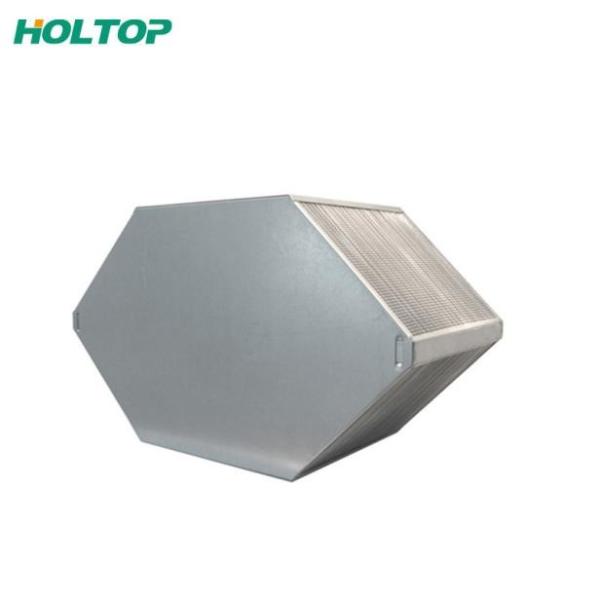

Plate Cross Counterflow Heat Exchangers
Plate Cross Counterflow Heat Exchangers
Specifications
Place of Origin :
Beijing, China
Brand Name :
Holtop
MOQ :
1pc
Price :
Negotiable
Packaging Details :
box
Delivery Time :
Two weeks
Payment Terms :
TT
Supply Ability :
200000 units per year
Model Number :
Plate Cross Counterflow Heat Exchangers
Certification :
CE
Product name :
Plate Cross Counterflow Heat Exchangers
Model :
HBS-LB539/316
Type :
Cross counter flow sensiable heat exchanger (Recuperator)
Material :
Aluminum Foils
Heat recovery efficiency :
up to 90%
Description

● Model: HBS-LB539/316
● Type: Cross counter flow sensiable heat exchanger (Recuperator)
● Material: Aluminum Foils
● Total separation of Fresh Air & Exhaust Air
● Heat recovery efficiency up to 90%
● Two sides press shaping
● Single folded edge,good sealing


Products Detail


Working principle of Air to Air Cross Counterflow Plate Type Sensible Heat Exchangers (Recuoperator)


Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated. Plate Cross Counterflow Heat Exchangers


Main features of Holtop High Efficiency Heat recuperators

1. Sensible heat recovery core
2.Total separation of fresh & exhaust air streams
3.Heat recovery efficiency up to 90%
4.2-side press shaping
5.Single folded edge
6.Completely joint sealing


Plate Cross Counterflow Heat Exchangers


Specifications


Model A(mm) B(mm) Length per piece (C) Optional spacing (mm)
HBS-LB539/316 316 539 Custom-made Max. 650mm 2.1
