Specifications
Brand Name :
OEM/ODM/OBM
Model Number :
M42 Bi-matel hole saw
Place of Origin :
ZHEJIANG,CHINA
Certification :
ISO/BSCI
Price :
Best Factory Price
Packaging Details :
Double Blister/Color Paper Box
Delivery Time :
Less Than 45 Days
Payment Terms :
L/C T/T
Supply Ability :
400,000 units per month
Arbor Type :
3/8" Hex 1/2"-20UNF For 14 To 30mm Hole Saw;7/16" Hex 5/8"-18 UNF For 32 To 210mm Hole Saw
Concentricity tolerance :
Less Than 0.75mm
Cutting Depth :
38mm/44mm /47mm
End-face tolerance :
Less Than 0.1mm
Teeth Type :
Variable Pitch Teeth
Hardness :
66-69HRC
Application :
Stainless Steel,nail-embedded Wood, Metal, Aluminium,casting Materials, Wood, Plastic Materials, Gypsum Board,ect
Size :
Diameters From 9/16
Description

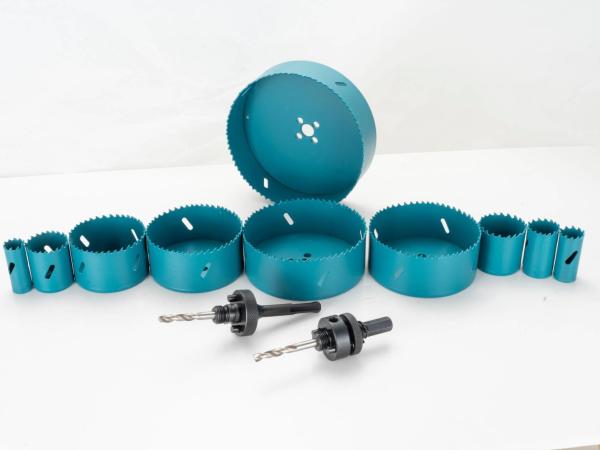

M42 Bi Matel Hole Saw Cobat8% Hss Hole Saw Cutter Set 66-69HRC

SPECIFICATION
Item No. inch mm Item No. inch mm
WT-01014 9/16 14 WT-01065 2-9/16" 65
WT-01016 5/8" 16 WT-01067 2-5/8" 67
WT-01017 11/16" 17 WT-01068 2-11/16" 68
WT-01019 3/4" 19 WT-01070 2-3/4" 70
WT-01020 25/32" 20 WT-01073 2-7/8" 73
WT-01021 13/16" 21 WT-01076 3" 76
WT-01022 7/8" 22 WT-01079 3-1/8" 79
WT-01024 15/16" 24 WT-01083 3-1/4" 83
WT-01025 1" 25 WT-01086 3-3/8" 86
WT-01027 1-1/16" 27 WT-01089 3-1/2" 89
WT-01029 1-1/8 29 WT-01092 3-5/8" 92
WT-01030 1-3/16" 30 WT-01095 3-3/4" 95
WT-01032 1-1/4 32 WT-01098 3-7/8" 98
WT-01033 1-5/16" 33 WT-01102 4" 102
WT-01035 1-3/8 35 WT-01105 4-1/8" 105
WT-01037 1-7/16" 37 WT-01108 4-1/4" 108
WT-01038 1-1/2" 38 WT-01111 4-3/8" 111
WT-01040 1-9/16" 40 WT-01114 4-1/2" 114
WT-01041 1-5/8* 41 WT-01121 4-3/4" 121
WT-01043 1-11/16" 43 WT-01127 5" 127
WT-01044 1-3/4 44 WT-01133 5-1/4" 133
WT-01046 1-13/16" 46 WT-01140 5-1/2" 140
WT-01048 1-7/8 48 WT-01146 5-3/4 146
WT-01051 2" 51 WT-01152 6" 152
WT-01052 2-1/16" 52 WT-01160 6-19/64" 160
WT-01054 2-1/8 54 WT-01165 6-1/2" 165
WT-01057 2-1/4 57 WT-01168 6-5/8" 168
WT-01059 2-5/16" 59 WT-01177 6-31/32" 177
WT-01060 2-3/8 60 WT-01200 7-7/8" 200
WT-01064 2-1/2 64 WT-01210 8-17/64" 210

Technical Parameters:

Product Attribute Technical Parameter
Product Name HSS hole saw, Bi-metal core drill bit, Bi-metal core drill bit
Hardness 66-69HRC
End-face Tolerance Less Than 0.1mm
Arbor Type 3/8" Hex 1/2"-20UNF For 14 To 30mm Hole Saw;7/16" Hex 5/8"-18 UNF For 32 To 210mm Hole Saw
Application Stainless Steel, nail-embedded Wood, Metal, Aluminium, casting Materials, Wood, Plastic Materials, Gypsum Board, etc
Teeth Type Variable Pitch Teeth
Cutting Depth 38mm/44mm /47mm
Concentricity Tolerance Less Than 0.75mm
Size Diameters From 9/16
Material M42 Bi-metal (HSS)

Packing and Shipping:

Product Packaging:

  • One Bi-metal hole saw
  • One mandrel
  • One hex key
  • One plastic storage case

Shipping Information:

  • Product will be shipped within 2-3 business days
  • Shipping cost will vary depending on location
  • Tracking information will be provided via email
