Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Hot Sale Factory Direct HOBBYSKY QN1507 drone motor waterproof brushless dc drone motor brushless motor for drone RC toys
Specifications
Model Number :
QN1507
Torque :
0.4N.m
Stator Thickness :
7mm
Overall Shaft Length :
29.8mm
Testing :
YES
Appearance Customization :
YES
Motor Body Length :
16mm
Brand Name :
HOBBYSKY
Efficiency :
90%
Bolt holes spacing :
12mm
Certification :
ce/RoHS
Construction :
Permanent Magnet
Usage :
Boat, Car, Electric Bicycle, Home Appliance, drone RC toys
Prop adapter shaft :
M5
KV customization :
YES
Place of Origin :
Guangdong, China
Protect Feature :
Explosion-proof
Motor Diameter :
21.9mm
Type :
DC Brushless Motor
Stator Diameter :
15mm
Dynamic balance :
YES
Supply Ability :
5000pcs per Month
Speed(RPM) :
Voltage*kv
Price :
Contact us,get the best price
Delivery Time :
1-2weeks after payment done
MOQ :
Low MOQ
Packaging Details :
Conventional Paper Boxes&Customization
Propeller :
3"
Continuous Current(A) :
20(A)
Bolt thread :
M2
Warranty :
12 months
Payment Terms :
D/A,D/P,T/T,Paypal
Commutation :
Brushless
Description


Products Description
Motor model: QN1507

Project
The numerical
Motor KV
2500RPM/V
Idle Current (Io/10V)
0.49A
Lipo Cell
3-6S
Weight
17.6g
Max Continuous Current
20A
Max Continuous Power
480W
Max thrust
740g
Configu-ration
9N/12P
Motor Resistance (RM)
0.1695 Ω

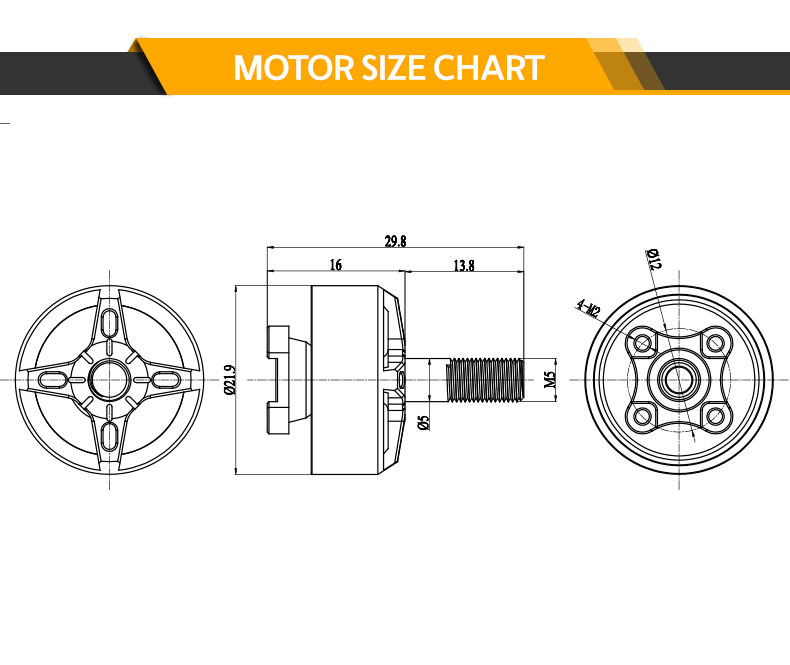

Stator Diameter
15mm
Stator Thickness
7mm
Motor Diameter
21.9mm
Motor Body Length
16mm
Overall Shaft Length
29.8mm
Prop adapter shaft
M5
Bolt holes spacing
12mm
Bolt thread
M2
Propeller
3”
