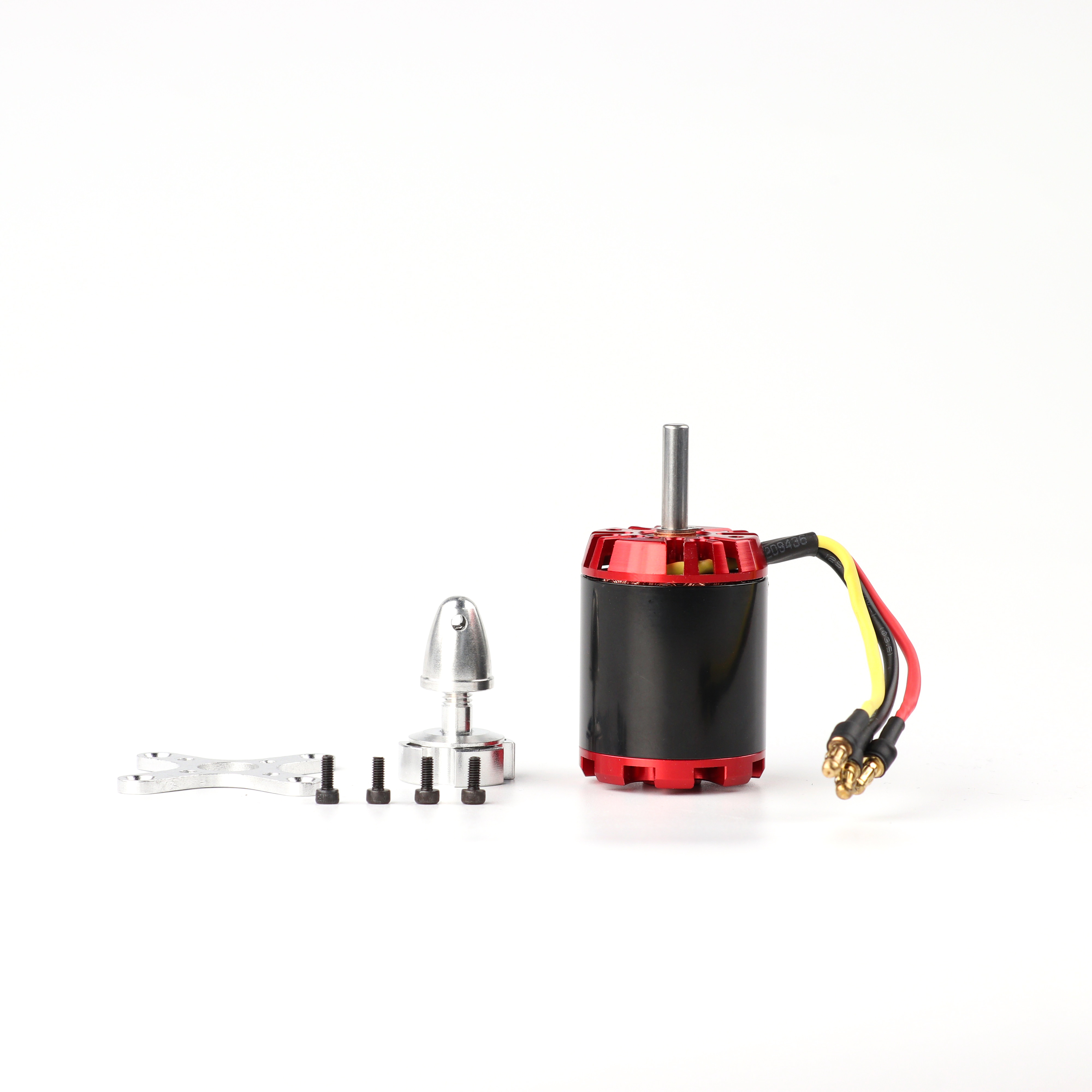

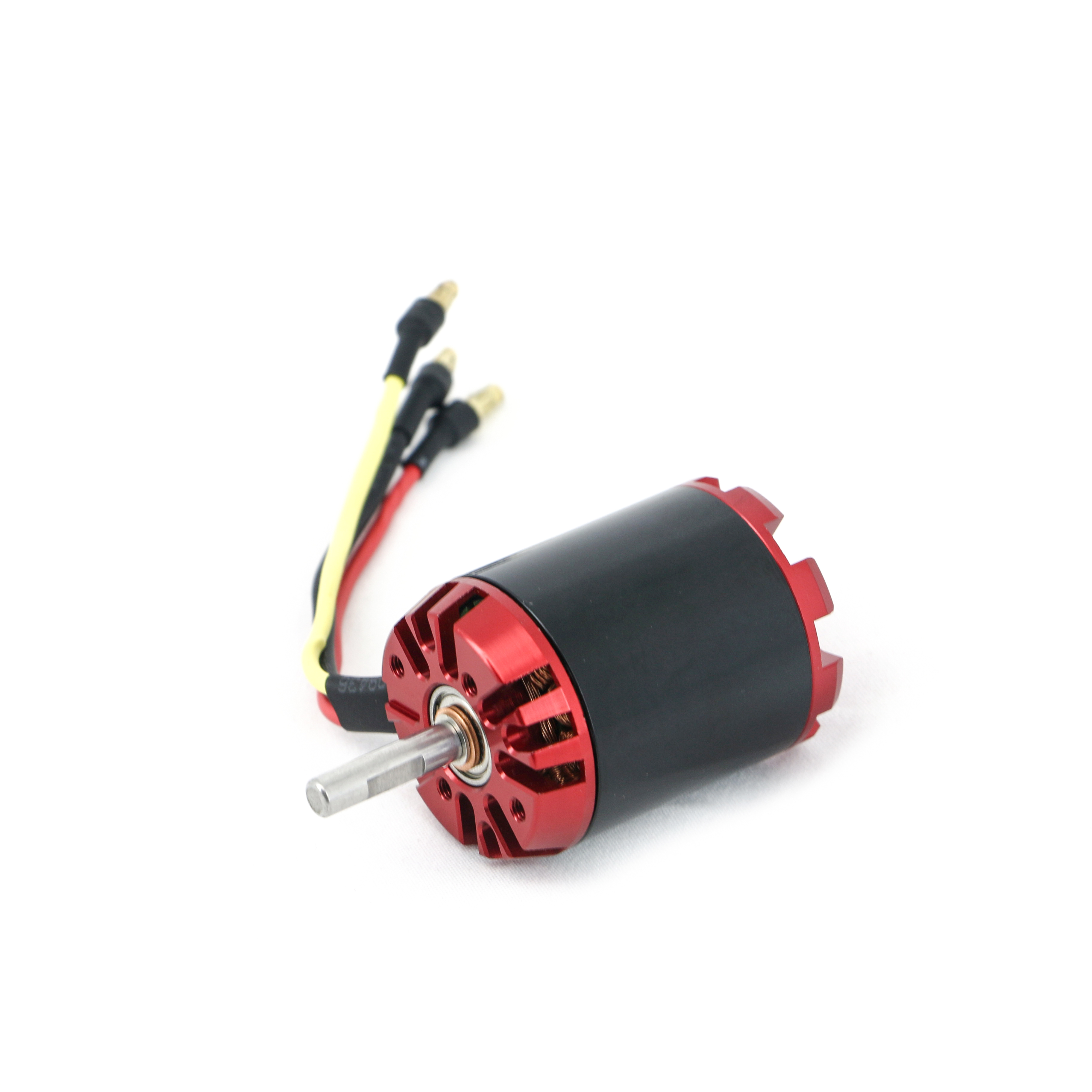

Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Factory & Customizable & Balanced HS3548 900KV Outrunner BLDC Motor for Multi-copter Helicopter Drone Aircraft Racing Car
Specifications
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Motor KV :
900kv
Appearance Customization :
YES
Place of Origin :
Guangdong, China
Warranty :
3 months ~ 1 year
Efficiency :
90%
Lipo Cell :
3-6S
Certification :
CCC/ce/RoHS
MOQ :
Low MOQ
Payment Terms :
D/A,D/P,T/T,Paypal
Frame :
NO
Usage :
Boat, Car, Electric Bicycle, Home Appliance, Model airplane, scooter, bicycle assist, electric car modification, surfboard
Protect Feature :
Drip-proof
Torque :
0.5N.m(0.37lb.ft)
Construction :
Permanent Magnet
Rated Power :
800W
No load Current :
2.9A
Dynamic balance :
YES
Price :
Contact us,get the best price
Speed(RPM) :
kv* voltage
Brand Name :
HOBBYSKY
Bottom mounting hole distance :
15mm
Bolt thread :
M3*4
Banana connector :
3.5mm
Testing :
YES
KV customization :
YES
Packaging Details :
Conventional Paper Boxes&Customization
Delivery Time :
1-2weeks after payment done
Propeller recommended model :
9*6 10*7 11*7 11*8 13*6 13*8 14*7 14*7
Continuous Current(A) :
45(A)
Weight :
173g
Rated voltage :
Dc 24V
Model Number :
HS3548
Supply Ability :
5000pcs per Month
Commutation :
Brushless
Bolt holes spacing :
19mm
Description
Products Description
Motor KV
900kv
No-load current
2.9A
Number of lithium battery
3-6S
Motor weight
173g
Maximum current
45A
Maximum power
835W
Voltage
11.1-25.2V
Motor diameter
35mm
Motor length
46mm
Length of output shaft
20mm
Shaft diameter
5mm
Top mounting hole distance
19mm
Bottom mounting hole distance
15mm
Mounting hole size
M3*4
Banana connector
3.5mm
Propeller recommended model
10*6 12*6 11*8 13*6 13*8 10*7 11*7 14*7


KV
prop
prop size
input
motor amp
watts
rpm
static thrust



900KV
APC
9*8
14.8V
34.04A
482.7W
11446
2056g

APC
10*7
11.1v
25.77A
278.1W
8633
1404g

APC
11*7
11.1v
29.60A
360.07W
8306
1730g

APC
12*8
11.1v
46.51A
478.8W
7792
2259g

APC
13*8
11.1v
55.99A
583.9W
7393
2585g

1100KV
APC
10*6
11.1v
42.39A
456.9W
10247
1978g

APC
11*6
11.1v
49.39A
529.9W
9977
2139g

APC
12*6
11.1v
62.64A
656.1W
9504
2520g
