Specifications
Efficiency :
90%
Motor Diameter :
28.5mm
Brand Name :
HOBBYSKY
MOQ :
Low MOQ
Packaging Details :
Conventional Paper Boxes&Customization
Construction :
Permanent Magnet
Rated Power :
800 W
Stator Thickness :
6mm
Frame :
NO
Usage :
Boat, Car, Electric Bicycle, Home Appliance, FPV Mini RC Multicopter Quadcopter Gopro Fixed-wing Aeroplane Airplane
Protect Feature :
Drip-proof
Torque :
0.3N/m(0lbf/in)
Place of Origin :
Guangdong, China
Speed(RPM) :
kv*voltage
Supply Ability :
5000pcs per Month
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Stator Diameter :
23mm
Certification :
ce/RoHS
Warranty :
3 months ~ 1 year
Price :
Contact us,get the best price
Appearance Customization :
YES
Bolt holes spacing :
19/16mm
Delivery Time :
1-2weeks after payment done
Bolt thread :
M3
Propeller :
5"/ 6"
KV customization :
YES
Model Number :
Q2306
Payment Terms :
D/A,D/P,T/T,Paypal
Overall Shaft Length :
32.9mm
Continuous Current(A) :
49.5(A)
Motor Body Length :
18.4mm
Dynamic balance :
YES
Rated voltage :
Dc 12V
Commutation :
Brushless
Prop adapter shaft :
M5
Testing :
YES
Description
Products Description
Motor model: Q2306

Project
The numerical
Motor KV
2450RPM/V
Idle Current (Io/10V)
2.6A
Lipo Cell
3-4S
Weight
35.6g
Max Continuous Current
49.5A
Max Continuous Power
792W
Max thrust
1510g
Configu-ration
12N/14P
Motor Resistance (RM)
0.0412 Ω
Stator Diameter
23mm
Stator Thickness
6mm

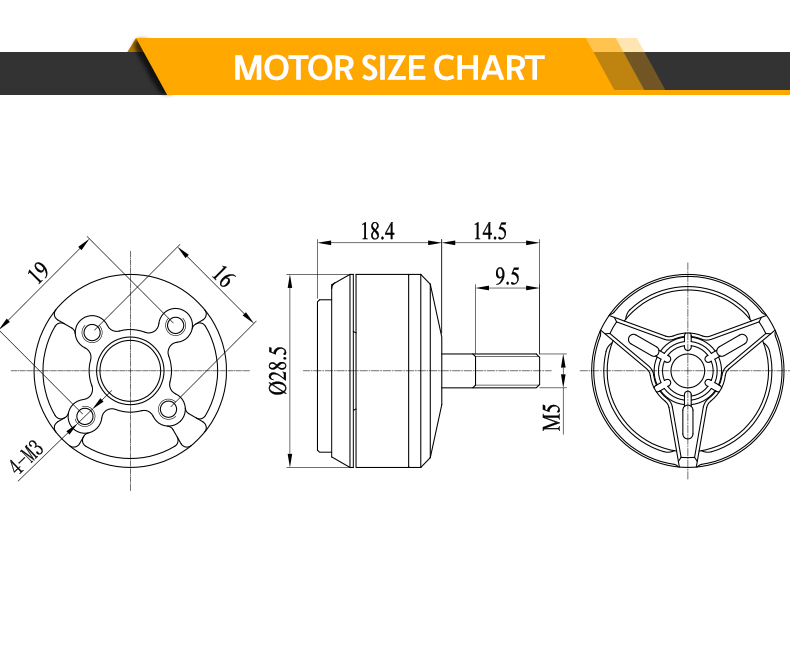

Motor Diameter
28.5mm
Motor Body Length
18.4mm
Overall Shaft Length
32.9mm
Prop adapter shaft
M5
Bolt holes spacing
19/16mm
Bolt thread
M3
Propeller
5”/6”
