Specifications
Delivery Time :
1-2weeks after payment done
Payment Terms :
D/A,D/P,T/T,Paypal
Motor Mounting Type :
Flange Mount
Type :
traction motor
The motor size :
50*10mm
Warranty :
12 months
Price :
Contact us,get the best price
Efficiency :
IE 2
Single weight :
104g
Protect Feature :
Drip-proof
Torque :
1 N.m
MOQ :
Low MOQ
Supply Ability :
5000pcs per Month
Construction :
Permanent Magnet
Rated Power :
500 W
trunnion :
4.0mm
Place of Origin :
Guangdong, China
Packaging Details :
Conventional Paper Boxes&Customization
Frame :
NO
Usage :
Boat, Car, Home Appliance, Quadrotor Robot Joint Structure
Support the battery :
2-6S Li-Po
Continuous Current(A) :
10A-30A
Appearance Customization :
YES
speed :
360KV 530KV 800KV
Rated voltage :
Dc 24V
Speed(RPM) :
170KV
Certification :
ce/RoHS
Dynamic balance :
YES
Model Number :
5010
Brand Name :
HOBBYSKY
KV customization :
YES
Commutation :
Brushless
Testing :
YES
Adapter electrically controlled :
10A-30A
Description

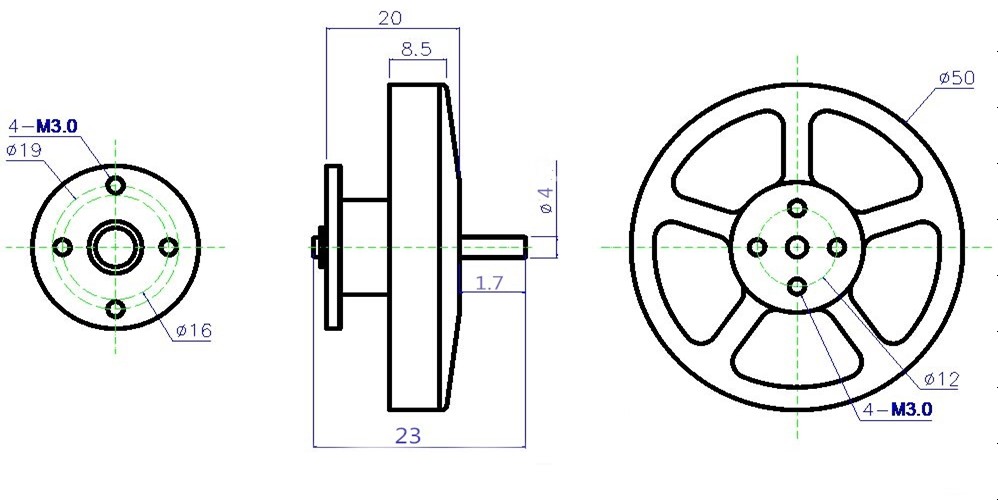

Specification
Model : 5010



Diameter of the stator
40.6mm
stator's height
7.4mm
stator slot number
12N
Number of stator
14P
motor diameter:
50mm
motor length:
10mm
Shaft diameter:
4mm
Single weight:
94.3g
Speed:
170kv 360KV 530KV 800KV
Support battery:
2-5s
ESC adaption:
10a-30a
Packing list:
QX5010 motor*1 Fixing screw*8 3.0mm Bullet *1 3.5mm soldered banana head*3 pairs Several heat shrinkable tubes
Factory & Customizable & Balanced 170KV 800KV BLDC Motor 5010 FPV Quadcopter for RC Toys Car Robot Joint AGV Multicopter Drone

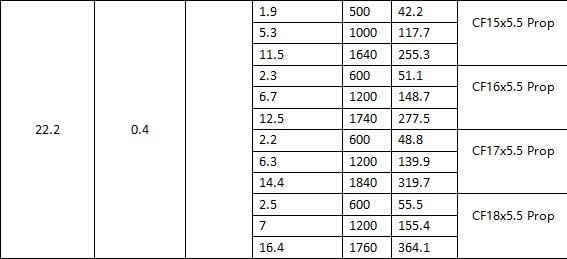

Test report
5010 750kv (1755/1855)




voltage
No load current (A)
speed
Loaded current(A)
Thrust(g)
11.1
0.6
8200
15
1270
14.8
0.8
11000
24
1970
18.5
1
13650
31
2500
22.2
1.2
17000
41
3250
