Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
Specifications
Price :
Contact us,get the best price
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Model: :
C2208
Warranty :
3 months ~ 1 year
Efficiency :
90%
Winding Turns : :
70/100
Payment Terms :
D/A,D/P,T/T,Paypal
Frame :
NO
Usage :
Boat, Car, drone brushless bldc dc motor
KV customization :
YES
Model Number :
C2208
Place of Origin :
Guangdong, China
Protect Feature :
Drip-proof
Torque :
0.3 N.m
Appearance Customization :
YES
MOQ :
Low MOQ
Packaging Details :
Conventional Paper Boxes&Customization
Supply Ability :
5000pcs per Month
Construction :
Permanent Magnet
Rated Power :
50 W
Voltage : :
11.1 V
Speed(RPM) :
unknown
Winding Resistance : :
11.1 ohms/21.2
Testing :
YES
Lipo Cell : :
2 - 4 s
Weight :
38g
Brand Name :
HOBBYSKY
Magnet Pole Pairs : :
14
Rated voltage :
Dc 12V
Certification :
ce/RoHS
Continuous Current(A) :
unknown
Wire : :
0.16mm/0.14mm
Delivery Time :
1-2weeks after payment done
Commutation :
Brushless
Stator Slots : :
12
Dynamic balance :
YES
Description

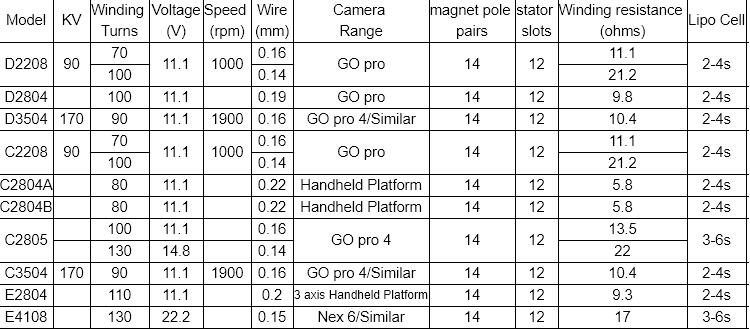

Products Description
MODEL:
C2208
Voltage :
11.1 V
Winding Turns :
70/100
Wire :
0.16mm/0.14mm
Camera Range :
Go pro
Magnet Pole Pairs :
14
Stator Slots :
12
Winding Resistance :
11.1 ohms/ 21.2 ohms
Lipo Cell :
2- 4s
Weight
38 g
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ

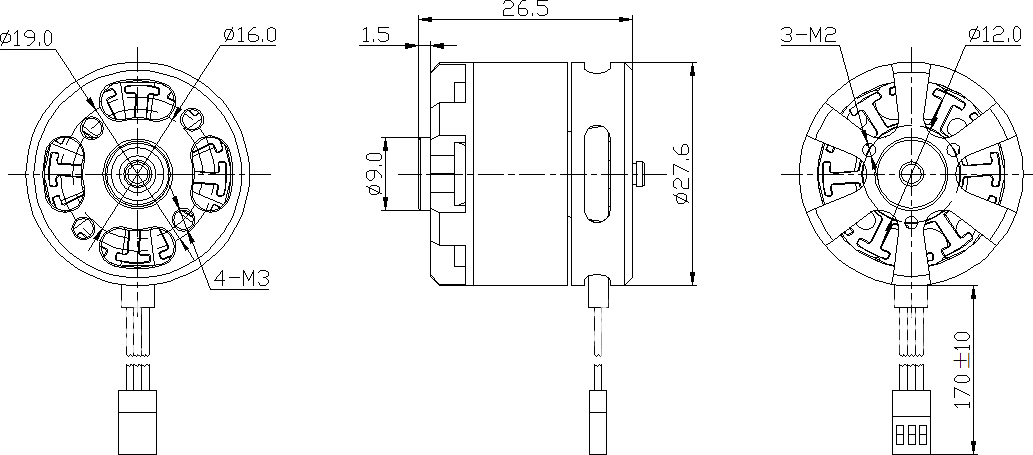

Outline drawing
Factory & Customizable & Balanced Brushless C2208 2-4s BLDC Brushless DC Drive Motor for Multi Axis Aircraft Pan-Tilt Heli PTZ
