Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Specifications
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Model: :
D3504
Warranty :
3 months ~ 1 year
Price :
Contact us,get the best price
Efficiency :
90%
Winding Turns : :
90
Frame :
NO
Usage :
Boat, Car, IP camera robot walking electric generator
Protect Feature :
Drip-proof
Torque :
0.4 N.m
Packaging Details :
Conventional Paper Boxes&Customization
Construction :
Permanent Magnet
Rated Power :
150 W
Voltage : :
11.1 V
Payment Terms :
D/A,D/P,T/T,Paypal
Dynamic balance :
YES
Brand Name :
HOBBYSKY
Supply Ability :
5000pcs per Month
Stator Slots : :
12
Lipo Cell : :
2 - 4 s
Weight :
44g
Testing :
YES
Place of Origin :
Guangdong, China
Speed(RPM) :
unknown
MOQ :
Low MOQ
Commutation :
Brushless
Magnet Pole Pairs : :
14
Appearance Customization :
YES
Certification :
ce/RoHS
Delivery Time :
1-2weeks after payment done
Camera Range : :
GO pro 4/Similar
Continuous Current(A) :
unknown
Wire : :
0.16mm
KV customization :
YES
Model Number :
D3504
Rated voltage :
Dc 12V
Description
Products Description

MODEL:
D3504
Voltage :
11.1 V
Winding Turns :
90
Wire :
0.16mm
Camera Range :
GO pro 4/Similar
Magnet Pole Pairs :
14
Stator Slots :
12
Winding Resistance :
10.4 ohms
Lipo Cell :
2 - 4 s
Weight
44 g
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter

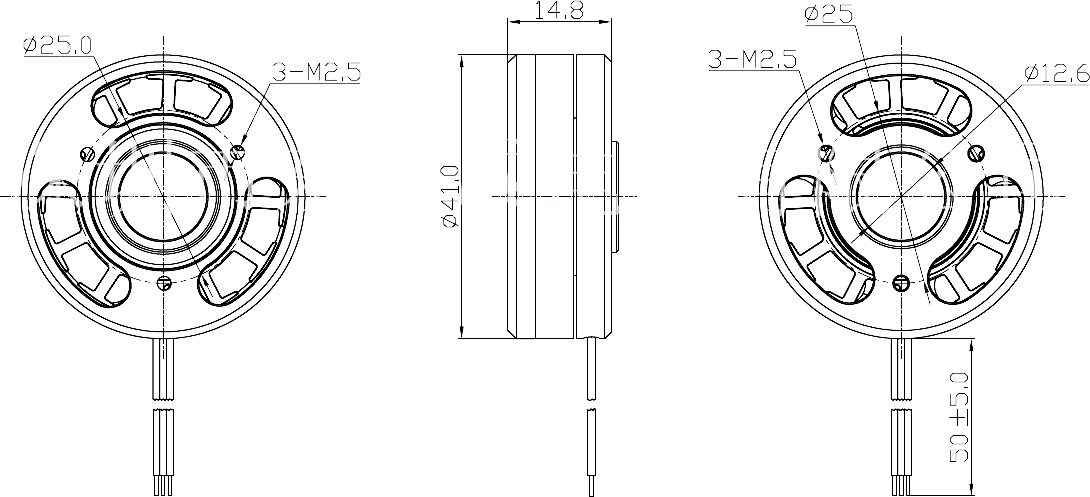

Outline drawing
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
Factory&Customizable &Balanced BLDC 22.2v Mini DSLR Camera Gimbal FPV Brushless BLDC PTZ Motor D3054 for Drone Multicopter
