Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U
Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U
Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U
Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U
Specifications
Brand Name :
GCE
Model Number :
RBMS07S23-50A144V
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
china
MOQ :
2
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10000+pcs+1 month
Delivery Time :
8-15 days
Packaging Details :
Corrugated Carton,510*310*210mm
Material :
Iron
color :
black
Communication :
CAN, RS485
OEM/ODM :
Acceptable
Warranty :
3 years
Description

45S 144V 50A 2U smart BMS for high voltage BMS(HV BMS) with relay contactor lifepo4 bms slave master for battery energy storage

    • 144V50Amp

Communication protocol:
Rs485, CAN, LAN, Dry contact

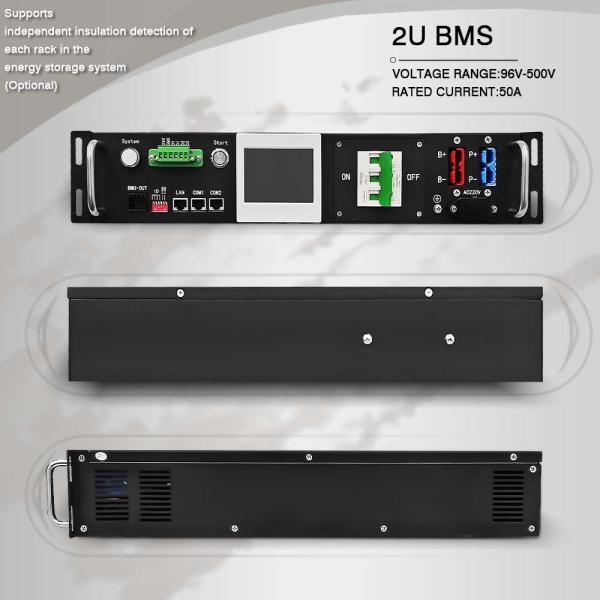

* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U

Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2ULifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2ULifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2ULifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U

Specification
Product Name
BMS
Model no.
RBMS07S2-3-50A144V
protecting method
MCCB+Contactor
Rated Current range
-50A~50A
Voltage Range
48V-144V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with RBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
No
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
5
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
2U (440*88*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
14kg

Certification

Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U
