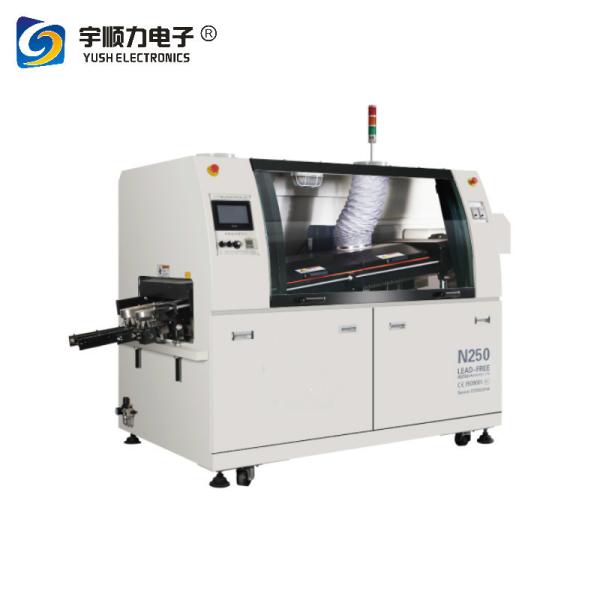

Hot Air Lead Free DIP Mini Wave Soldering Machine N250
Hot Air Lead Free DIP Mini Wave Soldering Machine N250
Specifications
Description

Hot Air Lead Free DIP Mini Wave Soldering Machine N250


Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.

2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.

6.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

7.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.

9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

10.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

11.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

Specification:

Model No.

N250

Number of Pre-heaters

2

Pre-heater Passage

800mm

Body Size

1800(L)*1200(W)*1600(H)

Outside Dimension

2500(L)*1200(W)*1600(H)

Weight

800KG

Total/Steady consumption

11KW/4-6KW

Air Supply

0.5MPa

Preheating Style

Hot air

Preheater Consumption

220V 5KW

Control Method

Button+PLC (Option: Touch Screen, PC)

Range of Temp. Set-point

Room Temperature---300℃

Preheating Time

About 10-15mins for Setting 150℃

Solder Application

Lead-free / Sn-Pb

Solder Pot Capacity

220KG

Solder Pot Temperature

300℃

Solder Pot Consumption

380V 6KW

Solder Temp. Control Method

PID&SSR

Wave Motor Power
