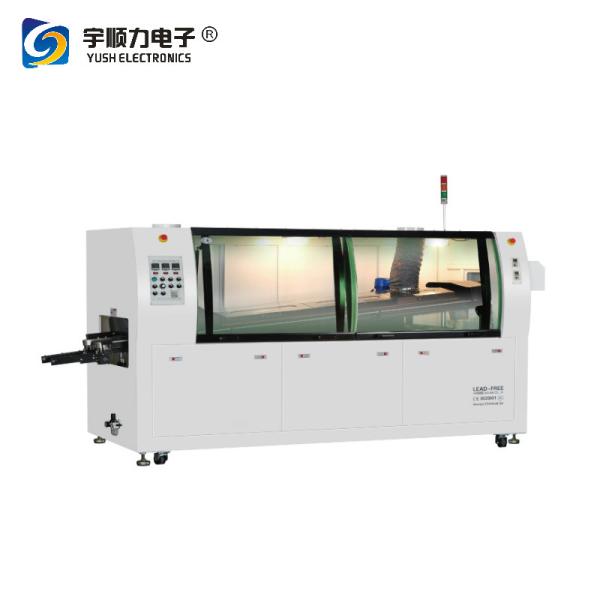

DIP Line Dual Wave Soldering machine/Lead-free Wave Solder N300

Features:

1.Stepper motor driven flux sprayer, spray range is selective, save more flux.

2.Flux recovery container drawer design, easy to clean.

3.Conveyor passage add 1 more width ajustable screw, total 3 screws, the conveyor transmission is more stable, no PCB falling risk.

4.Solder pot's inpeller material is cast iron, never corrode.

5.Solder pot with oxidation jacket, low solder dross

Specification:

Number of heating zones 2
Length of heating zones 1200mm
Body size 2800(L)*1250(W)*1560(H)
Outside dimension 3600(L)*1250(W)*1560(H)
Weight 1000KG
Total/running power 16KW/6KW
Air supply 0.5MPa
Preheating method IR(standard)/Hot air
Preheating power 220V 6KW
Control method PC +PLC/Touchtone/Touch screen
Range of temp.control Room temperature---300ºC
Preheating time About 10-15mins for setting 150ºC
Solder type Lead-free / Sn-Pb
Solder pot capacity 280KG
Solder pot temperature 300ºC
Solder power 380V 8KW
Solder temp. control method PID&SSR
Wave crest drive power 1KW 220V
Warm-up time of solder About 120mins for setting 250ºC
PCB width 50-300mm
Convey speed 300-1800mm/min
Convey direction L→R (R→L optional)
Convey angle 4-7 º
Flux pressure/capacity 3-5 bar/6L
