Device Operation Description

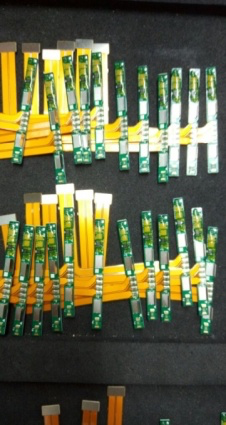

The main parameters of the hot press equipment are temperature, time and pressure, and the three elements are controlled, and the welding products are stable. The product of the heat press welding is generally, PCB/FPC/FFC these several kinds of products are connected to each other with soldering tin, so as to achieve the function.

It is very important for welding products to set the above parameters accurately. A good solder joint may make solder plentiful to weld two appearances and melt tin in the two parts. To make the above parameters cooperate effectively, the good can be welded.

●Unique pulse heat technology provides fastest soldering head heating.

●Programmable soldering temperature, heat-up rate and time duration for a wide range of products.

●Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.

●Closed Loop PID temperature control with clearly visible LED display.

●Soldering time can be programmable and is triggered by temperature .

●Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined .

●Programmable pressure switch with LCD display for precise force control.

●CCD camera system with magnification lens can be retrofitted for fine-pitch.

Features of touch screen pulse heat press:

1. pulse heating mode, because of different products, heating speed can be set up.

2. special material welding head to ensure that the product is pressed on average.

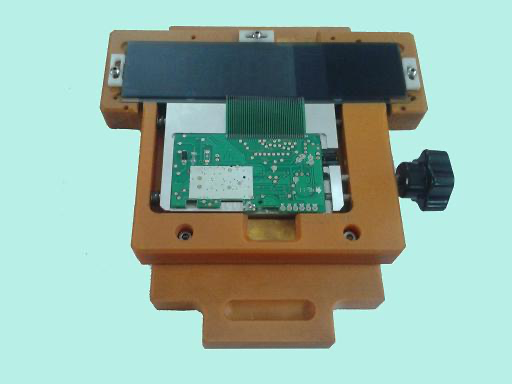

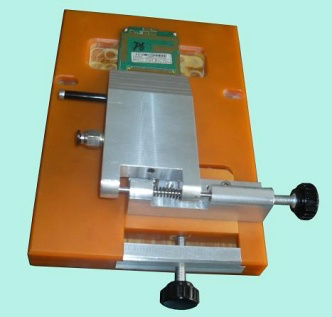

3. has the function of vacuum, it is more convenient to adjust the counterposition, rotating the feed by rotating double stations, and improving the working efficiency.

4. temperature numerical control, clear and precise, programmable curve including preheating and reflow welding temperature.

5. have digital display pressure switch, can presuppose pressure range, realize overvoltage protection function.

Touch screen pulse heat press specification:

Advantages: super fine distance welding can be achieved; temperature, pressure digitization; welding speed 3-5S

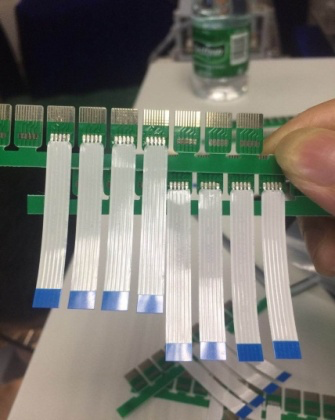

Function: suitable for all kinds of high density TAB, TCP pressing and FPC, FFC and PCB welding, which can be used.
