soldering machine for LED soft strip light Product Brief ：

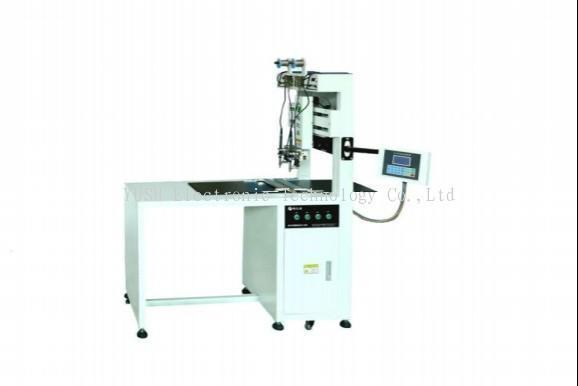

PCX-800LEDSoft light strip plate soldering machine is a dedicated automatic welding equipment for 5 meter LED strip welding,According to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.

First, product advantages:

1.Simple programming, operation control box mobile head position.

2.Welding speed, high efficiency, a solder machine can save 5-6 people

3.Save tin wire, good consistency of solder joint

4.High power heating controller ensures the stability of continuous welding

The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation

5.Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy

6.According to the professional design of the lamp batten, it is convenient for manual feeding and feeding 7.Production efficiency: 1800-2000 metres /H.

9、It can replace the manual process and optimize the quality control.

10、Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers

第 1 页 共 3 页

YUSH Electronic Technology Co.,Ltd

Two, scope of application:

LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050RGB lamp string, lamp belt, lamp strip and other products

Three, technical parameters:

Technical parameter configuration:
