High Efficiency YSV-1A PCB Depaneling Machine with Adjustable Cutting Speed Stainless Steel Platform and Microcomputer Program Control
High Efficiency YSV-1A PCB Depaneling Machine with Adjustable Cutting Speed Stainless Steel Platform and Microcomputer Program Control
Specifications
Brand Name :
YUSH
Model Number :
YSV-1A
Certification :
CE
Place of Origin :
GUANGDONG
MOQ :
1
Price :
USD 3800
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20 WORK DAYS
Max Cutting Length :
460mm or 600mm
Cutting Speed :
300mm/s ,500mm/s
Cutter point angle :
26~28°
Machine weight :
65kg / 85kg
Description

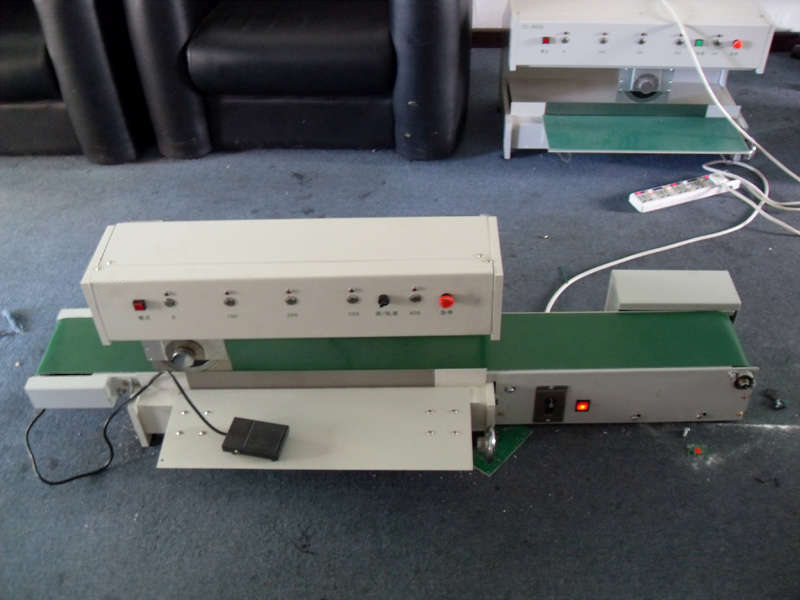

High Efficiency YSV-1A Blades Moving PCB Separator

High Efficiency YSV-1A PCB Depaneling Machine with Adjustable Cutting Speed Stainless Steel Platform and Microcomputer Program Control

Features
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display；
4. Separating speed is adjusted by a rotary knob；
5. Handle Intermittent scoring or cut-outs；
6. Board with projected component can be cut precisely；
7. Large stainless steel platform on both side of cutting lade prevents board wobble
and table height and angle are adjustable；
8. Clearance between circular and linear blades are adjustable to fit different groove
depth and compensates for blade wear out.

Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly,
effectively quickly. Easy to operate and causing no damdage to components on

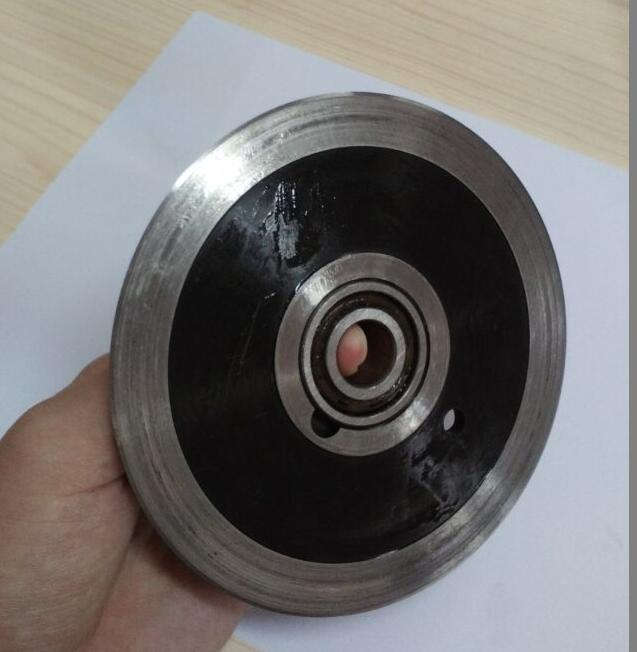

boards. Imported high- speed steel blade with long service life, mainly applied in
circuit board industries such as led, SMT, etc.

YSV-1A Specifications
Model YSV-1A
Max Cutting Length 460mm or 600mm
Dimension 740*550*460mm or 880*420*320mm(L*W*H)
Cutting pooint 0-100-200-300-400mm
Cutting Speed 300mm/s ,500mm/s
Cutter point angle 26~28°
Conveyor Belt (Options) 1.5 m
Cutting thickness 0.6-5.0mm
Minimum component distance from v-groove 1mm
Voltage 220 V or 110V, 50/60HZ, 250W
Max component height 30 mm
Machine weight 65kg / 85kg
Machine Warranty period

1 year
