YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades
YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades
Specifications
Brand Name :
YUSH
Model Number :
YSV-5A
Certification :
CE
Place of Origin :
GUANGDONG
MOQ :
1
Price :
12800USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20 Work Days
Machine Weight :
550kg
Working Pressure :
0.5-0.8 MPa
Cutting Speed :
300-500mm/s
Operating Voltage :
220V / 110V Optional
Description
YSV-5A Automatic double direction PCB Depaneling machine
The YSV-5A automatic PCB depaneling machine is an advanced splitting system that performs both horizontal and vertical bidirectional board separation in a single operation. This innovative solution eliminates the need for secondary PCB separation processes, making it ideal for bidirectional V-cut PCB boards, downlight boards, and LED aluminum plates.
Complete two-direction cutting on a single device saves significant time and labor while delivering smooth, burr-free cutting surfaces. Unlike conventional single-direction depaneling machines, the YSV-5A efficiently handles the challenging requirements of bidirectional V-slot line PCB boards without requiring manual secondary operations.
YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades

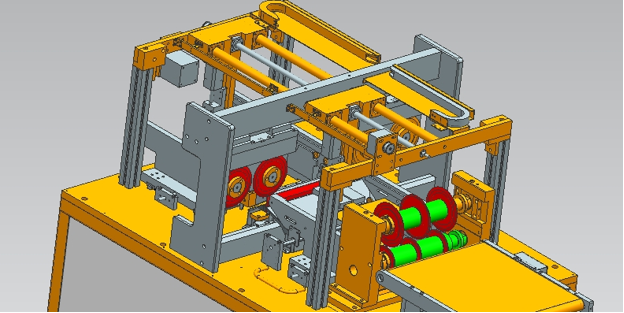

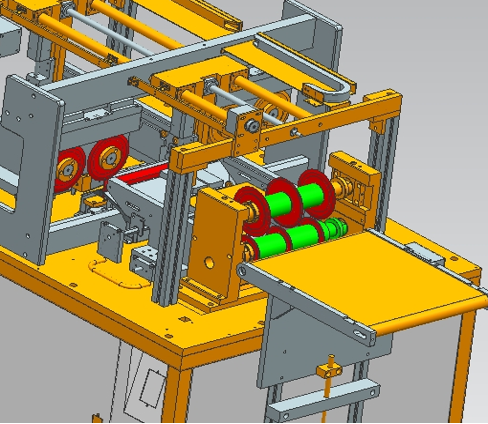

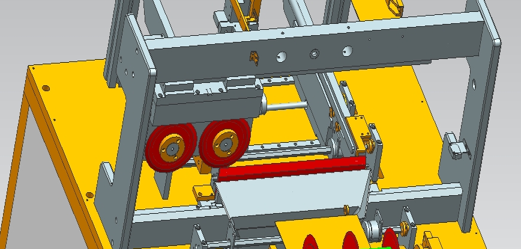

Internal Machine Structure
YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades
Key Features
  • Fully automatic bidirectional board separation capability
  • Flexible operation for both horizontal and vertical cutting directions
  • Rapid product changeover with fast modular conversion
  • Integration capability with upstream and downstream board handling equipment for fully automated production lines
  • Simple operation requiring minimal training for operator proficiency
  • Unique tool design providing 1.5x increased durability
Blade Tool Specifications
YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades YSV-5A Automatic Double Direction PCB Depaneling Machine with Bidirectional Cutting and High-Speed Steel Blades
Technical Parameters
Model YSV-5A
Product Name Automatic Double Direction PCB Depaneling Machine
Dimensions (L*W*H) 1100(1470)mm * 900mm * 1460mm
Blade Sizes Round knife: ∅125 * ∅30 * 3mm, Straight knife: 356 * 65 * 6mm
Round knife: ∅125 * ∅35 * 3mm, Straight knife: ∅90 * ∅35 * 3mm
Blade Material Imported high-quality high-speed steel
Blade Brand Yushunli
Board Width Single boards: 8mm (Whole board: 300mm)
Drive System Motor Stepper motor / Servo (optional)
Cutting Speed 300-500mm/s
Cutting Board Types Two-way V-CUT well type products, Single direction V-CUT products
V-CUT Thickness One-third thickness
Working Pressure 0.5-0.8 MPa
Operating Voltage 220V / 110V Optional
Equipment Power 30kW (Not including vacuum cleaner)
Machine Weight 550kg
