High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine
High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine
Specifications
Brand Name :
YUSH
Model Number :
YS-XD160
Place of Origin :
GUANGDONG
MOQ :
1
Price :
USD86000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20work days
Total Power :
Max 1.3KW
Tube voltage :
60~160KV
Tube current :
0.2~5.0mA
Focal size :
0.5mm
Description

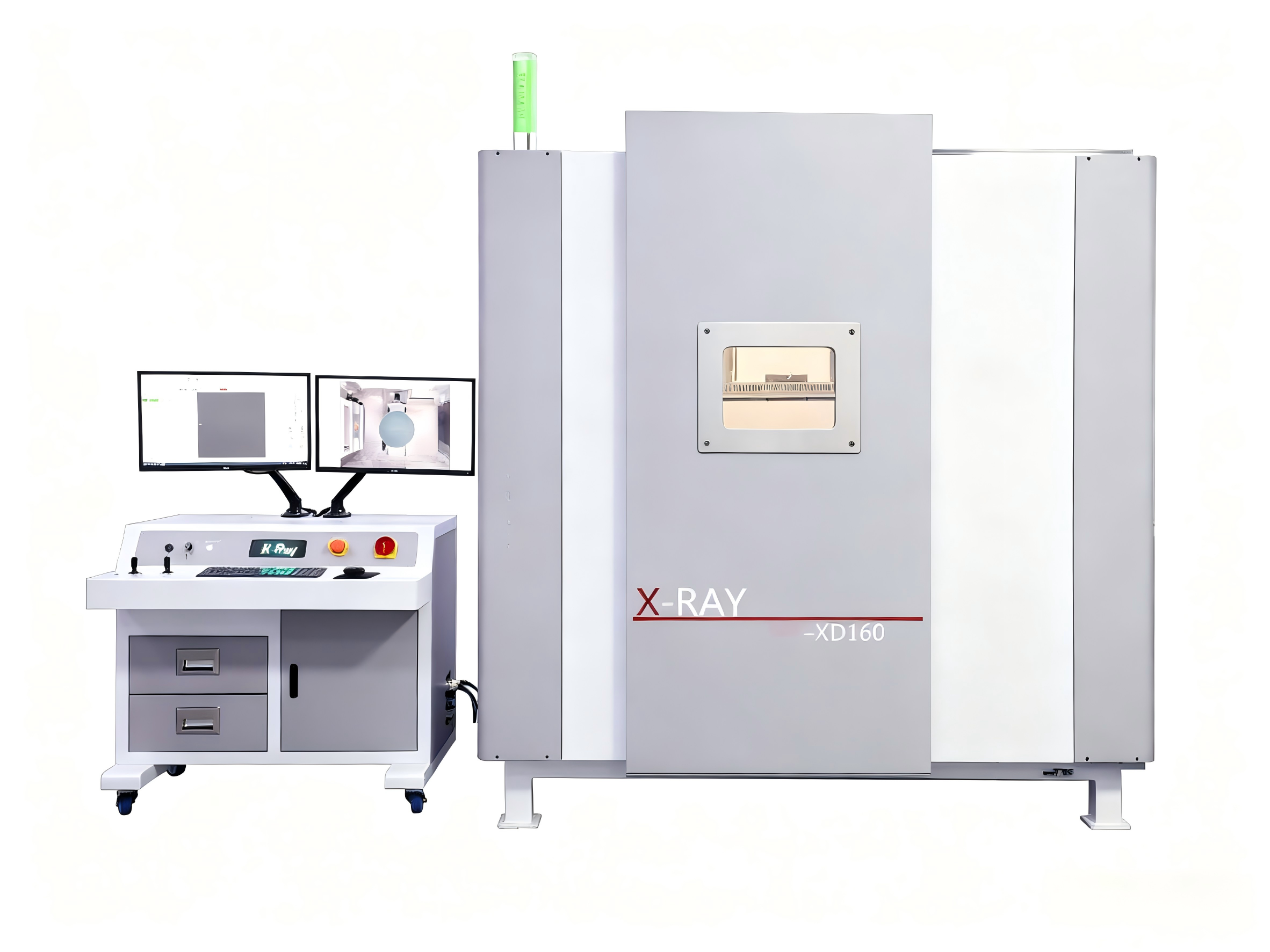

YS-XD160--Die Casting X Ray Inspection Machine
Feature
The test results clearly detect defects such as sand holes and cracks inside the aluminum castings.
Easy operation, the detection standard setting of the new product only takes 5~10 minutes.
Programmable, measurable, and image-saving functions based on ergonomics.
The optical door of the product is equipped with an interlocking function, and the rays cannot work
normally if any of the doors are not closed.
The multi-functional load platform rotates and moves 360°.
Versatile, customizable tooling operations.
C-type swing arm six-axis linkage detection method, Support no dead angle detection.
Real-time dynamic imaging is realized during product inspection, and the display realizes real-time
monitoring.
Multi-panel modular observation point setting.
High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine
The equipment is mainly used in aluminum castings, iron castings; automotive parts; hardware, refractory and other testing. Based on the Automated Optical Inspection developed on the image detection technology system, X-ray fluoroscopy is used to convert visible light images, flat panel detectors are used to acquire image information, high-definition imaging, measurable size, data storage and automatic programming step detection.
X-ray leakage amount
≤1usv/h
Dimension
L2030×W1600×W2100mm
Stage size
φ500mm
Imaging area
433.7mm*433.7mm
Resolution
2816*2816/ 3.24Lp/mm 15fps
Max Tilt Angle
±30°
