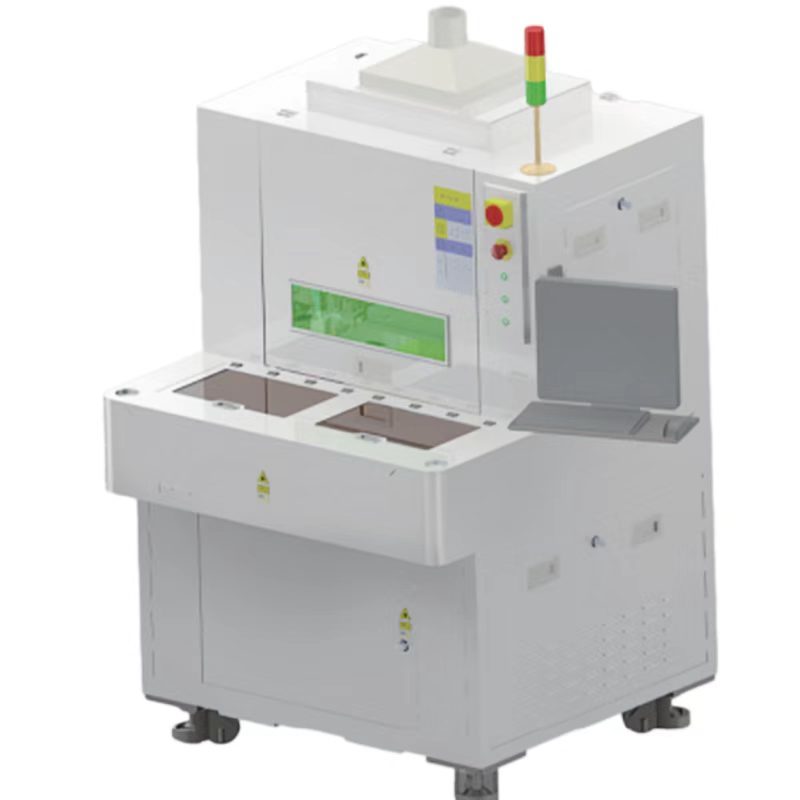

Advanced Vertical Dual-Station Pulse Laser Soldering Machine for Electronics Manufacturing
Advanced Vertical Dual-Station Pulse Laser Soldering Machine for Electronics Manufacturing
Specifications
Certification :
CE
Delivery Time :
20WORKDAYS
Supply Ability :
1000
Packaging Details :
WOODEN CASE
Brand Name :
YUSH
Price :
32800USD
Place of Origin :
CHINA
MOQ :
1
Description
Advanced Vertical Dual-Station Pulse Laser Soldering Machine
This precision laser soldering system is designed for advanced electronics manufacturing applications, offering superior performance and reliability for demanding production environments.
Key Advantages
  • Infrared temperature sensor monitors solder joint temperature in real-time to prevent component damage
  • Non-contact operation eliminates mechanical stress on workpieces
  • Quantified soldering data for easy analysis and process optimization
  • Rapid laser heating enables high-speed soldering operations
  • CCD vision positioning ensures exceptional accuracy and repeatability
  • Five-light coaxial achromatic optical system expands soldering process capabilities
  • Proprietary PC-based software with intuitive interface and comprehensive functionality
Advanced Vertical Dual-Station Pulse Laser Soldering Machine for Electronics Manufacturing
Technical Specifications
Power Supply AC 220V ±10V
Equipment Power Consumption 1200W
Solder Material Compatibility Solder wire and solder paste
Operating Environment 25°C ±5°C
Positioning Method CCD vision automatic positioning
Laser Power Options 70W / 100W / 150W
Working Distance 100mm - 130mm (optical continuous adjustable technology)
Product Dimensions 1100 × 110 × 1850mm
Effective Travel Distance 300 × 300 × 150mm (customizable)
Spot Type Options Circular spot / Special-shaped spot (optional)
Repeatability Accuracy ≤ 0.02mm
CCD Positioning Accuracy ≤ 0.03mm
Programming Method Visual programming, PC operation

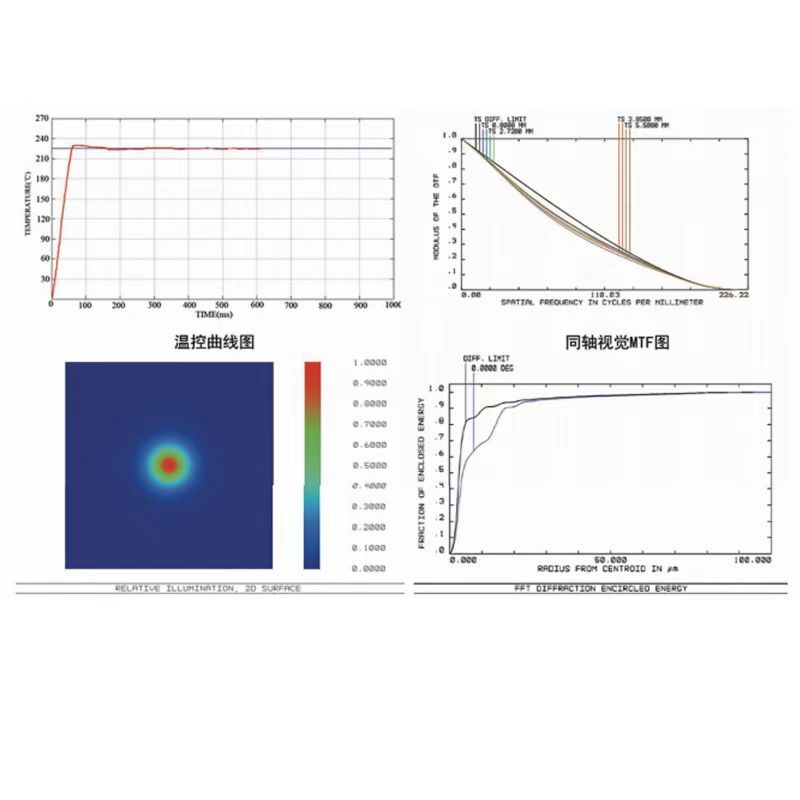

Temperature Control Method Real-time temperature control
Precision Manufacturing Solution
This laser soldering machine combines advanced vision systems, precise temperature control, and flexible programming to deliver consistent, high-quality results for electronics assembly and manufacturing applications.
