Fully Automatic SMT Production Line with 40,000 CPH Speed and Modular Universal Bench for High Precision PCB Assembly
Fully Automatic SMT Production Line with 40,000 CPH Speed and Modular Universal Bench for High Precision PCB Assembly
Specifications
Description

Fully Automatic SMT Production Line with 40,000 CPH Speed and Modular Universal Bench for High Precision PCB Assembly

Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.

Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.

Modular universal bench, thimble random placement, easy conversion.

With alignment device for PCB board and frame.

Model P3 P6 P12
Accuracy +/- 0.05mm +/- 0.05mm +/- 0.05mm
PCB Size 300 x 350 mm 600 x 350 mm 1200 x 350 mm
Platform size 300 x 350 mm 700 x 400 mm 1350 x 400 mm
Stencil Size(mm) 370*470,550*650 370*470,550*650 370*470,550*650,1500*650
PCB Thickness 0.2 - 6 mm 0.2 - 6 mm 0.2 - 6 mm
Stencil Positioning Manual Manual Manual
Cycle Time < 10 Sec. < 10 Sec. < 12 Sec.
Power Consumption 200 W 200 W 200 W
Power Supply 1 -PH, 220VAC 50/60HZ 1 -PH, 220VAC 50/60HZ 1 -PH, 220VAC 50/60HZ
Air Pressure 4.5-6 kg/cm 4.5-6 kg/cm 4.5-6 kg/cm
Squeegee Speed 0-1500mm/sec 0-1500mm/sec 0-1500mm/sec
Dimension 850x750x1650 mm 1050x750x1650 mm 1660x750x1650 mm
Weight 280 Kg 300 Kg 356 Kg
Squeegee Length 250mm 250mm 250mm
Platform Height 950mm 950mm 950mm
Option: Special size can be customized

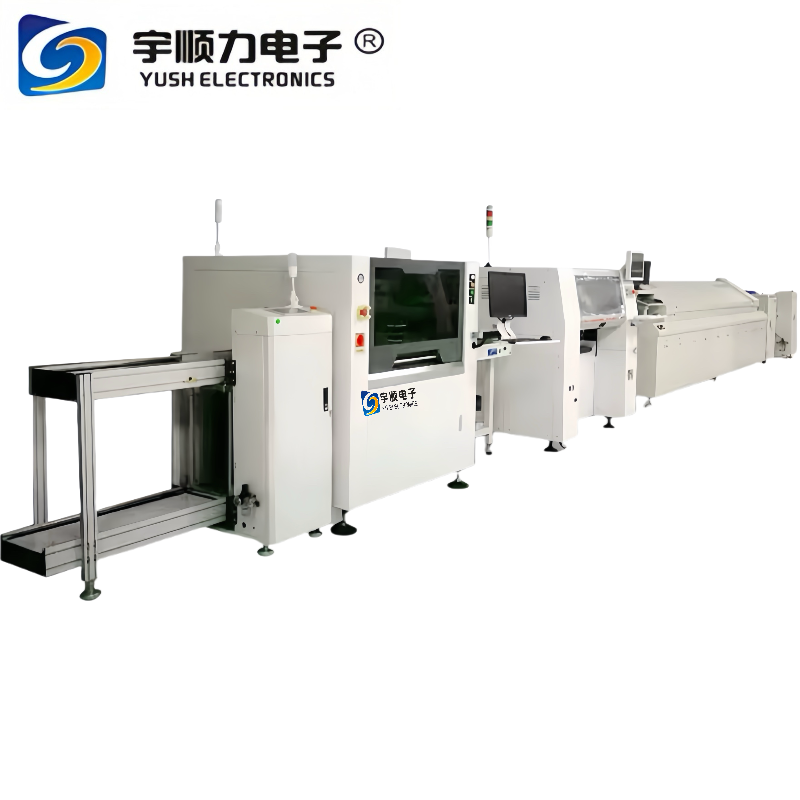

SM481 Plus SMT Assembly line, with Automatic solder paste printer, SM481 plus pick and place machine reflow oven, the production speed is around 40000 CPH. really suitable for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.

Fully Automatic SMT Production Line with 40,000 CPH Speed and Modular Universal Bench for High Precision PCB AssemblyFully Automatic SMT Production Line with 40,000 CPH Speed and Modular Universal Bench for High Precision PCB Assembly

As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 Plus realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
