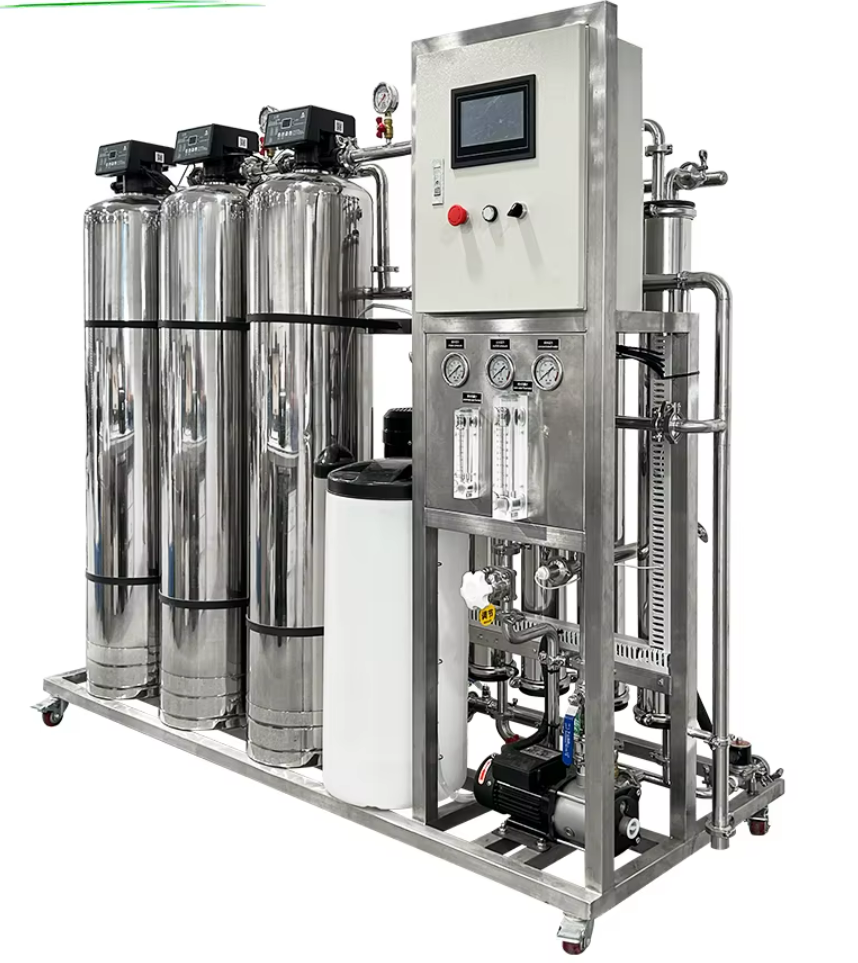

10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
10m3/H One Stage RO Pure Water System Commercial Water Purification Machine
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
US$29200~US$29500
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Production capacity :
HJ-PWJu10T
Flow  rate :
10m³/h
Key Components :
Pressure vessel, Pump, PLC
Frame Material :
stainless steel
Raw water :
tap water, borehole water, river water
Product Features :
Stable Water Quality,Low Operation Cost,Reliable Performance
Description

I.One-stage RO process:
Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → Pure Water Tank → UV Sterilizer → Water Point

II.Parameters

ItemSpecification
FunctionDrinking water, Bottle water, Industrial water, Commercial water
ControlElectric Auto Control (PLC Siemens)
Capacity250/500/750/1000LPH, 2TPH, 3TPH, 4TPH, 5TPH, etc
Electricity Supply380V
Produced Water QualityConductivity < 10μs/cm
Core Technologyone-stage Reverse Osmosis (RO)
Key ComponentsRO Membrane Modules
MaterialFRP tank, Stainless steel 304, PVC pipe
Process Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → Ro system → UV → Ozone generator


III.Basic Concepts of Reverse Osmosis (RO)
Reverse osmosis is a process that uses the "screening effect" of a semipermeable membrane to allow water molecules to pass through the membrane and retain solutes at a pressure higher than the osmotic pressure of the solution. Its principle is opposite to natural osmosis (water diffuses from a low-concentration solution to a high-concentration solution), so it is called "reverse osmosis". Primary reverse osmosis means that water is treated only through a set of reverse osmosis membrane components, and fresh water is directly produced after the water flows through the membrane without secondary concentration or reprocessing. Compared with "secondary reverse osmosis" (water enters the second-stage membrane component after the first-stage treatment), the primary system structure is simpler, but the purity of the produced water is relatively low.

IV.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
