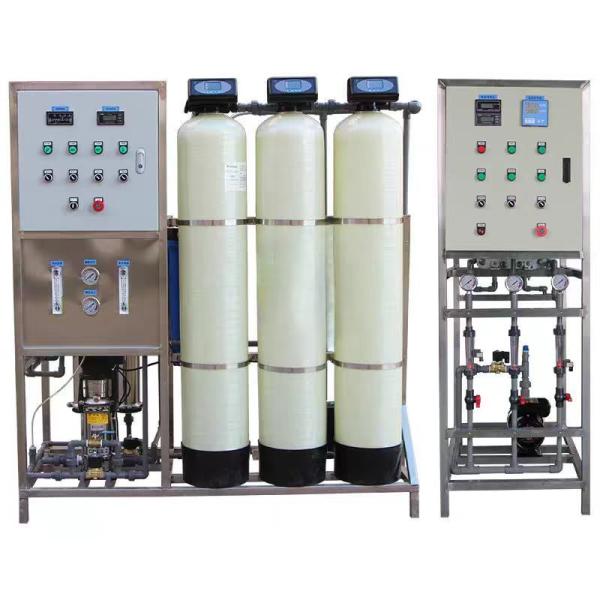

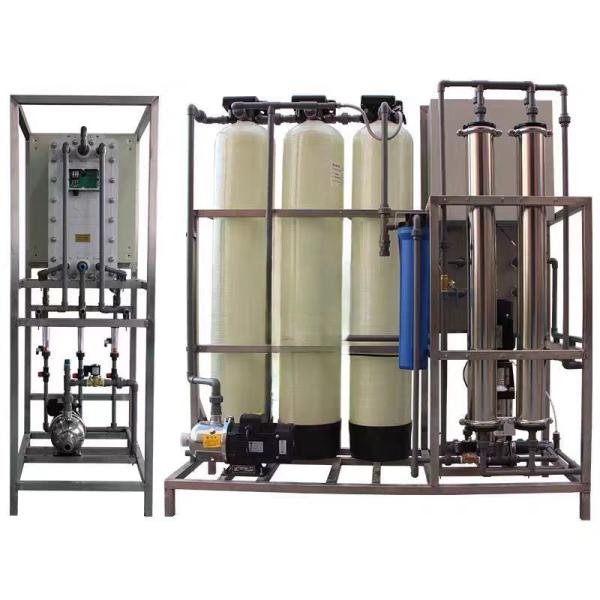

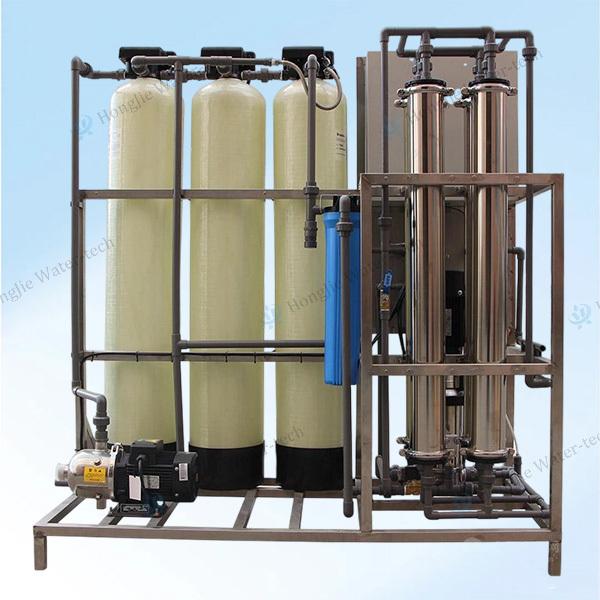

500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System
Specifications
Brand Name :
Hongjie
Model Number :
HJ-ROFB1500L
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depend on raw materials stocking)
Packaging Details :
export standard wooden case
Core Components :
Pressure vessel, Pump, PLC
Warranty :
1 Year
Capacity :
500LPH(Customized）
Processing Type :
Reverse Osmosis
Material :
stainless steel Or glass steel
Applicable Industries :
Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Description

500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System

I.Brief introduction of reverse osmosis system

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.

II.Flow Chart

raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank- UV sterilizer / ozone generator (optional) - water supply points

III.Specification of RO Water Filtration System

Popular Capacity: 250LPH, 500LPH, 750LPH, 1000LPH.

No

Name

Description

1

Raw water pump

Provide needed pressure for every pretreatment filter

2

Quartz sand filter

It can filter big particles impurities, suspended substances, colloids etc.

3

Activated carbon filter

remove color, odor, residual chlorine and organics substances.

4

Water softener

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling

5

Security filter

prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm

6

High pressure pump

Provide needed working pressure for RO system, ensure production capacity of pure water.

7

RO system

Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99%
dissolved salts.

8

Sterilizer device

UV sterilizer or ozone generator

500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System

500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System

500LPH Full Automatic Industrial Reverse Osmosis Water Treatment System


FAQ

Q:Why did I choose your product?

A:We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.

Q:How long does it usually take for your products to ship?

A:Generally, the delivery time is 1-7working days(depend on raw materials stocking).

Q:Do you offer OEM&ODM services?

A: Yes. We can customize the LOGO and products according to your needs.

Q:Can I get a cheaper price?

A:Of course, please contact us, we can give you a cheaper price.

Q:What if the product breaks down in the future?

A:Don't worry, we offer a very long warranty,.

Q:what can you buy from us?

A:Carbon Filter, Filter Housing, Reverse Osmosis Water Purifier System, Automatic Filter Softener Valve

Guidelines for getting a proper quotation:

1. Tell us the production capacity you want(500L/H,1T/H, 2T/H......)?
2. What is your source water(tap water/underground water....)?
3. What is the product water used for(drinking /bottled water....)?
4. If you have the water report, please send us.
