500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
Specifications
Brand Name :
Hongjie
Model Number :
HJ - PWWFI20T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
US$4210–US$4400
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
2weeks
Packaging Details :
export standard wooden case
Model :
HJ - PWWFI20T
Flow  rate :
500L/Hour
Electricity Supply :
380V
Produced Water Quality :
Conductivity < 1μs/cm
Core Technology :
two-stage Reverse Osmosis (RO)
Operation Mode :
Full Automatic (PLC-controlled) Warranty period
Warranty period :
2-Year
pH :
7.0-8.0
Description

I. RO system working principle
Reverse osmosis is a membrane separation technology that can be driven by pressure by means of the working force of a selective permeable (semi-permeable) membrane.
When the pressure added to the system is greater than the osmotic pressure of the influent solution, water molecules continuously permeate after passing through the membrane, it flows into the central tube through the permeate flow channel, and then the impurities in the water, such as ions, organics, bacteria, viruses, etc., flow out at one end, are trapped at the inlet side of the membrane, and then flow out at the outlet end of the concentrated water to achieve separation and purification purpose. The reverse osmosis equipment is to pass the raw water through a fine filter, a quartz sand filter, a compressed activated carbon filter, etc., and then pressurize it through a pump, using a pore size of 1/10000 μm ,reverse osmosis membrane (RO membrane), which makes high-concentration water into low-concentration water, and at the same time isolates industrial pollutants, heavy metals, bacteria, viruses and other impurities mixed into the water, and produces pure water.

Reverse Osmosis Membrane
Reverse osmosis is a membrane separation technology that can be driven by pressure by means of the working force of a selective permeable (semi-permeable) membrane. Water molecules pass through the membrane, but heavy metal ions, bacteria, fine scale are stopped by the membrane. Concentrated waste water will be collected and discharged.The filteration of the membrane is 1/10000um.

II.Parameters

Item Specification
Model HJ - PWWFI20T
Flow rate 500L/Hour
Electricity Supply 380V
Produced Water Quality Conductivity < 1μs/cm
Core Technology two-stage Reverse Osmosis (RO)
Key Components Pump, PLC
Operation Mode Full Automatic (PLC-controlled)
TDS ＜0.5mg/L
Technology reverse osmosis technology
Filter Media quartz sand, activated carbon, pp cotton, RO

III.Photoes

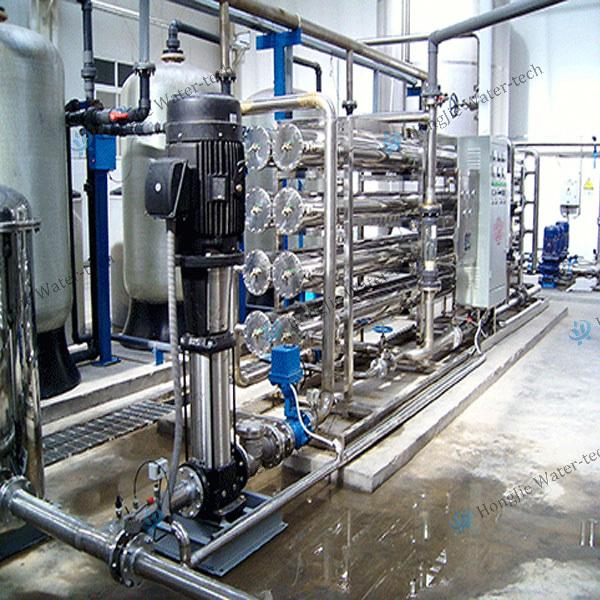

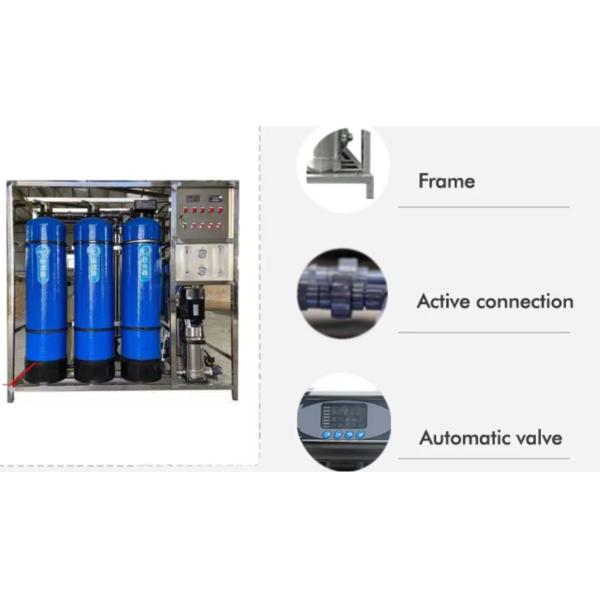

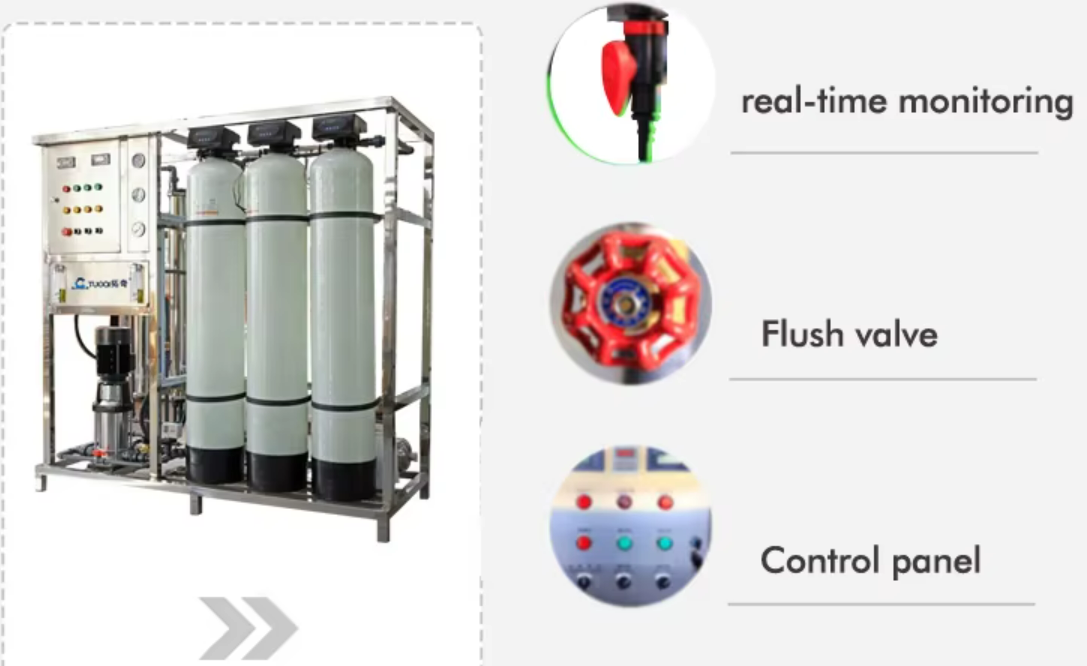

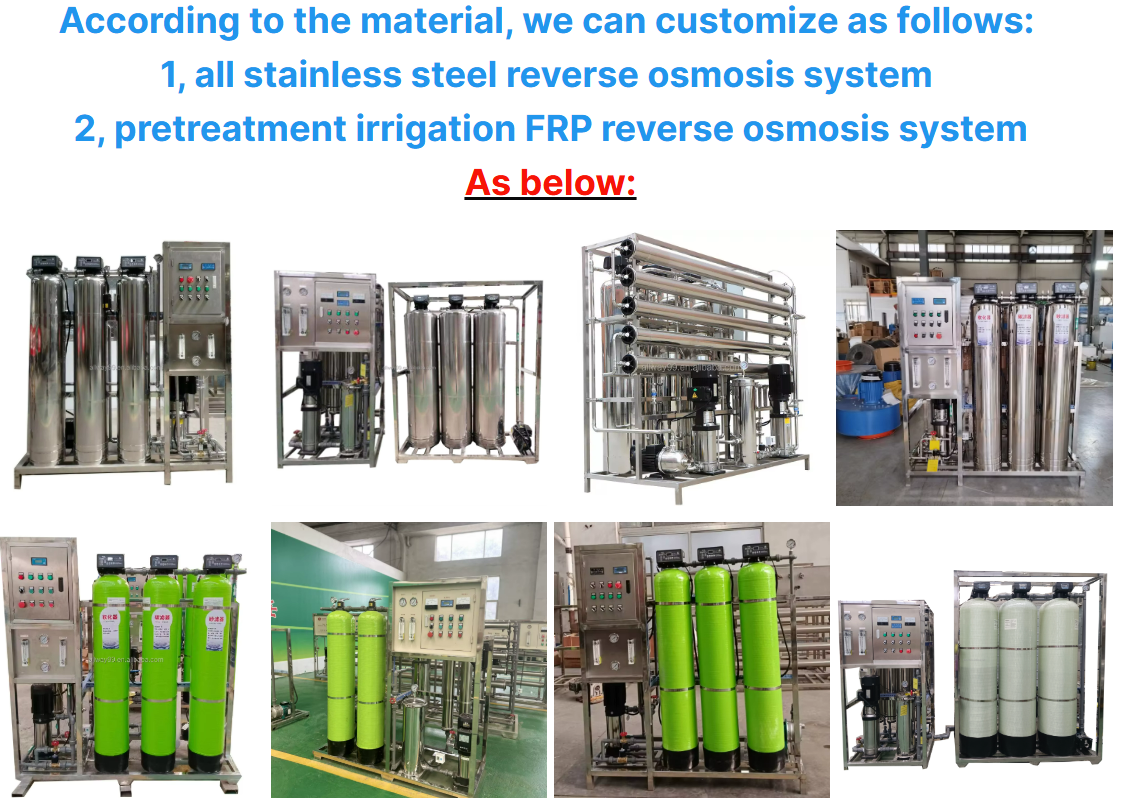

500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V

500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V

500L/Hour 2 Stages Reverse Osmosis Water Filter Machine RO Drinking Water System 380V
