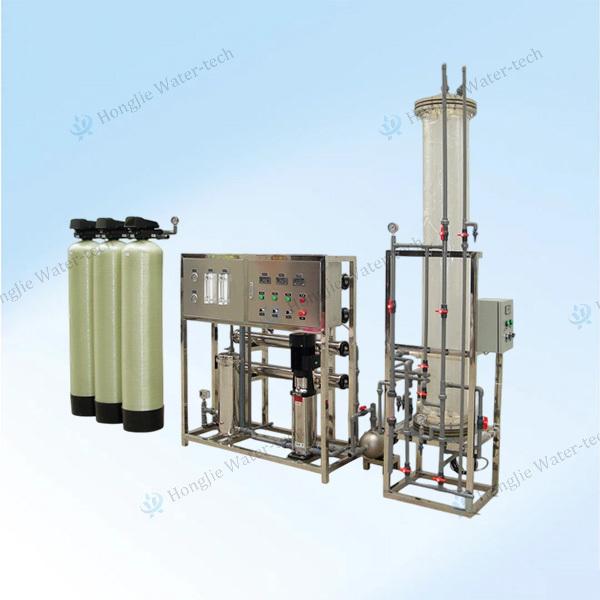

Electroplating Anodizing Pure Water Systems Customizable as Required

I. Equipment Overview

In the electroplating and coating industry, achieving superior surface finish, brightness, and adhesion for plated components requires electroplating baths prepared with pure water of ≤15uS/cm conductivity. Additionally, component rinsing demands pure water with ≤10uS/cm conductivity. Our electroplating water treatment systems encompass two critical solutions:

1. Pure Water Systems for electroplating bath preparation

2. Zero-Discharge Wastewater Systems for rare metal recovery and rinse water recycling in electroplating wastewater

II. Process Flow

Option 1: Single-Stage RO System

Raw Water → Boost Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Cartridge Filter → 1st Stage RO Equipment → Pure Water Tank → UV Sterilizer → Point of Use

Option 2: Dual-Stage RO System

Raw Water → Boost Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Cartridge Filter → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Point of Use

RO Membrane Photo:

IV. Design Highlights

1. Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.

2. Factory-Integrated Wiring: Pre-assembled unit connections reduce on-site installation and commissioning time.

3. RO Membrane Protection: Recirculation pipelines for both 1st/2nd stage RO systems + chemical cleaning modules to extend membrane life.

4. Corrosion-Resistant Piping: UPVC material ensures durability and chemical resistance.

5. Centralized Management: Integrated control panels and real-time monitoring instumentation simplify operation and maintenance.

6. Smart Membrane Care: Automatic RO membrane flushing (on startup and timer-based) to minimize fouling.

7. High Recovery Rate: Proprietary process design achieves industry-leading water recovery efficiency.

8. Adaptive Maintenance Alerts: Consumable replacement prompts triggered by real-time water quality/pressure data (not just usage time), optimizing for regional water variations.

9. Multi-Level Protection: Automatic shutdown for raw water shortage + intelligent tank level control (auto-start on low level, auto-stop on full).
