10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
Specifications
Brand Name :
Hongjie
Model Number :
HJ-PWIn10T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
US$20000~US$30000
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
7-10working days
Packaging Details :
export standard wooden case
Production capacity :
HJ-PWIn10T
Product name :
Water purification system
Flow  rate :
10,000 L/H (10 m³/h)
Core Technology :
one-stage Reverse Osmosis (RO)
Equipment Material :
Stainless steel / FRP / food-grade pipelines
Operation Mode :
PLC automatic control with monitoring instruments
core components :
Gearbox, Pressure vessel, Pump, PLC
Membrane Type :
High rejection RO membrane
Description
10m³/h Industrial Reverse Osmosis Pure Water System for Water-Based Ink and Coating Production
The 10,000 liters per hour pure water treatment system is specifically engineered to deliver high-quality process water for water-based ink and coating manufacturing applications. Water quality directly impacts product stability, color consistency, dispersion performance, and shelf life in these industries.
Treatment Process Flow
Raw Water → Raw Water Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Precision Filter → Reverse Osmosis (RO) System → Pure Water Tank → Distribution Pump
Main Equipment Configuration
  • Raw Water Pump: Provides stable pressure and flow for the pretreatment system
  • Multi-Media Filter: Removes suspended solids, sediment, and turbidity to protect downstream equipment
  • Activated Carbon Filter: Eliminates chlorine, organic compounds, odors, and residual disinfectants that may affect membrane performance
  • Water Softening System: Reduces calcium and magnesium ions to prevent scaling on RO membranes
  • Precision Filter (5 μm): Provides final filtration before the RO system to remove fine particles
  • Reverse Osmosis (RO) System: Core purification unit that removes dissolved salts, heavy metals, microorganisms, and organic impurities
  • Pure Water Storage Tank: Stores treated water and ensures stable supply for production
  • Distribution Pump: Delivers purified water to production lines with stable pressure
Technical Specifications
Item Specification
Production Capacity HJ-PWIn10T
Flow Rate 10m³/H
RO Desalination Rate ≥ 98%
System Recovery Rate 60-75%
Product Water Conductivity ≤ 10 μS/cm
Product Water TDS ≤ 10 mg/L
Raw Water Turbidity ≤ 5 NTU
Industrial Applications
  • High-Quality Drinking Water: Meets demand for premium drinking water in residential communities with 24/7 purified water supply
  • Purified Water Production Plants: Compatible with automatic filling machines for complete bottled water production lines
  • Food Industry Raw Material Water: Ideal for mixing additives, ingredients, soups, or juices - improves taste, inhibits organic growth, and extends product shelf life
  • Dairy, Beverage and Wine Industry: Two-stage reverse osmosis configuration recommended to prevent taste issues from water impurities
  • Chemical Industry Water: Used for chemical raw liquid proportioning, product manufacturing, and circulating water systems - prevents additional reactions and quality deviations from excessive ions
  • Power Industry Boiler Water: Supplies pure water for boiler systems in factories and mining operations, improving efficiency and extending equipment lifespan

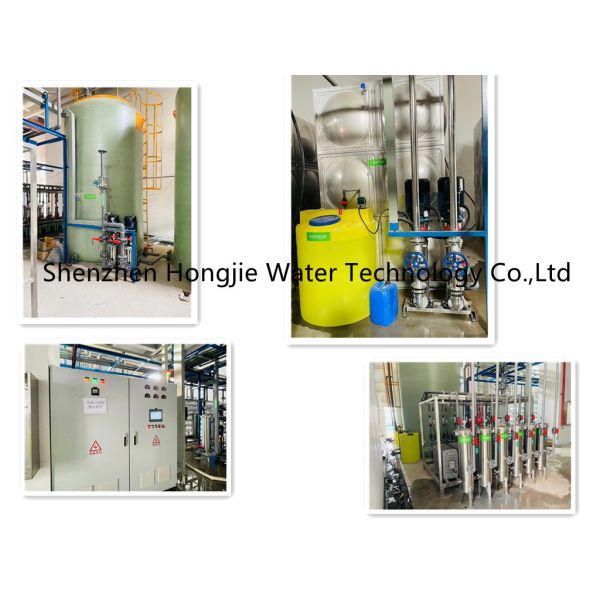

Installation Example
10m³/h Flow Rate Reverse Osmosis System with PLC Automatic Control and Stainless Steel Construction
