JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
1-7working days
Packaging Details :
export standard wooden case
Product name :
Online Conductivity Meter
Alarm output: :
Low limit alarm lamp lighting
Application: :
Measure pure water Conductivity Resistivity
Installation Method :
Instrument panel installation
Mounting Hole Dimensions :
138×138 mm
Weight :
0.8kg
Description

I.Production Overview

The online conductivity meter features full Chinese display, Chinese menu operation, full intelligence, multi-function, high measurement performance, and strong environmental adaptability. When paired with an electrode with a constant of 1.0 or 10, the secondary meter can measure the conductivity of general liquids; when matched with an electrode with a constant of 0.1 or 0.01, it can accurately measure the conductivity of pure water or ultrapure water. It is particularly suitable for the online continuous monitoring of high-purity water conductivity such as power plant boiler feed water and steam condensate.

II.Technical Parameters

Standard JB/T 6855-93 Industrial Conductivity Meter
Measurement Range 0.01～20μS/cm (with 0.01 electrode), up to 100.0μS/cm actually
0.1～200μS/cm (with 0.1 electrode), up to 1000.0μS/cm actually
1.0～2000μS/cm (with 1.0 electrode), up to 10.00mS/cm actually
10～20000μS/cm (with 10.0 electrode), up to 100.0mS/cm actually
Temperature Compensation 0～99.9℃, with 25℃ as reference temperature
Measured Water Sample 0～99.9℃, 0.6MPa
Basic Error Conductivity: ±1.0%FS; Temperature: ±0.5℃ (0～60℃)
Repeatability ±0.2%FS
Stability ±0.2%FS
Isolated Current Output 0～10mA (load <1.5kΩ), 4～20mA (load <750Ω)
Output Current Error ≤±1%FS
Relay AC220V, 3A
Communication Interface RS485 (optional)
Power Supply AC220V±22V, 50Hz±1Hz
Protection Grade IP65
Clock Accuracy ±1 minute/month
Data Storage 1 month (1 point/5 minutes)
Dimensions 146 (length) × 146 (width) × 108 (depth) mm

III.Application Fields
● Power plants - water treatment;
● Waterworks and sewage plants - wastewater treatment;
● Papermaking - production process / wastewater treatment;
● Chemical industry and oil refining - production process / wastewater treatment;
● Metallurgy and mining - production process / wastewater treatment;
● Food and beverage - production process / wastewater treatment;
● Pharmaceutical industry - biological reaction and fermentation / wastewater treatment;
● Semiconductor - production process / wastewater treatment / high-purity water production.

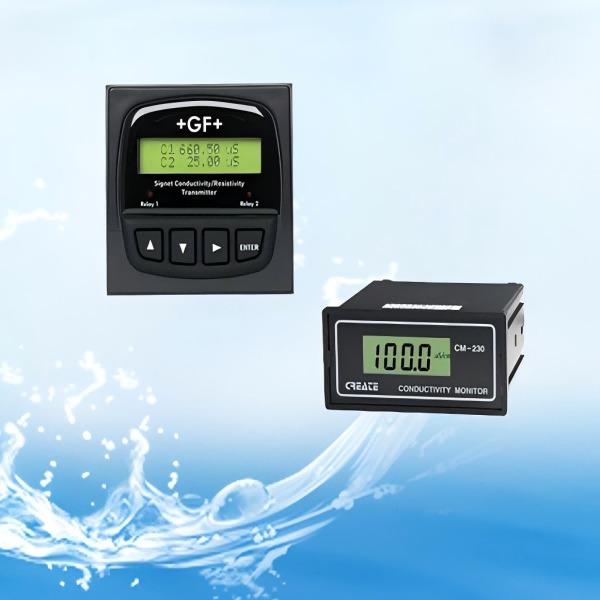

IV .Photo

JB/T 6855-93 Online Conductivity Meter For RO Water Plant System

JB/T 6855-93 Online Conductivity Meter For RO Water Plant System
