Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Specifications
Brand Name :
Hongjie
Model Number :
HJ-UF10T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen ,China
MOQ :
1Set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
7-10 working days
Packaging Details :
export standard wooden case
Effective Membrane Area :
50 m²

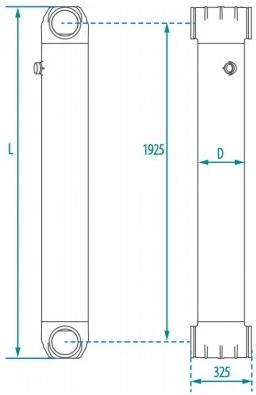

Module Length (incl. T end caps) :
2,101 mm
Module Diameter :
250 mm
Warranty :
1 Year
Feed Pressure :
5 bar
Filtration TMP :
1.5 bar
Description
P Series | Pressure-Driven PES Ultrafiltration Membrane Module
The OSHINAS UF-MB 50 TR is a high-performance pressure-driven ultrafiltration (UF) membrane module designed for T-type rack systems. It utilizes advanced modified PES (Polyethersulfone) hollow fiber membranes to deliver reliable and stable filtration performance in municipal and industrial water treatment applications.
With excellent mechanical strength, chemical resistance, and long service life, UF-MB 50 TR is capable of efficiently removing suspended solids, colloids, bacteria, and viruses, making it an ideal solution for wastewater reuse and secondary filtration systems.
Key Features
Advanced PES Hollow Fiber Membrane
  • Modified PES porous membrane fibers with high mechanical strength
  • Excellent chemical resistance and oxidation tolerance
  • High removal efficiency for colloids, bacteria, and viruses
  • Optimized for feed water with high suspended solids
  • Optional coagulation process to enhance removal of algae and organic matter
Optimized Module Design
  • Innovative T-type end-cap structure for easy installation and system expansion
  • All wetted components are corrosion-resistant
  • Durable construction ensures long operating life
  • Simple operation with low maintenance requirements
Technical Specifications
General Information
Item Specification
Filtration Type Pressure-driven (inside-out)
Membrane Type Hollow fiber
Membrane Material Modified PES (Polyethersulfone)
Nominal Pore Size 0.02 μm
Operation Mode Dead-end filtration
Housing Material PVC-U (White)
Recommended Operating Conditions
Parameter Value
Operating Temperature 1 - 40 °C
Operating pH (continuous) 3 - 11
Cleaning pH 1 - 13
Typical TMP 0.1 - 0.6 bar
Typical Backwash TMP 0.3 - 2.0 bar
Backwash Flux 230 L/(m²*h)
Backwash Flow Rate 11.5 m³/h
Pressure-Driven PES Ultrafiltration Membrane Module with 50 m² Effective Membrane Area and Modified Hollow Fiber Design
Frequently Asked Questions
What can we do?
We specialize in manufacturing reverse osmosis (RO), nanofiltration (NF), and ultrafiltration (UF) membranes. We also provide customized filtration solutions, various water treatment accessories, and technical support services.
Do you offer sample service?
Yes, we provide sample products for testing and evaluation. Please contact us to discuss the specific details and conditions.
Do you provide customized service?
Absolutely! We can tailor products to meet your unique requirements, including size, filtration capacity, and material specifications.
