Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
$3500~$3800
Payment Terms :
T/T, Western Union
Supply Ability :
>300sets/month
Delivery Time :
7-10working days
Packaging Details :
export standard wooden case
Productivity :
50000l/hour
Core components :
Pressure vessel
Processing Type :
Softening, desalination,filtration
Operation mode :
Manual or automatic control
Filtration speed :
5m/h~12m/h
Product specifications :
φ223~φ3000
Description

I.Producation Overview

Groundwater in many areas across the country contains 5~15mg/L of iron, as high as 20~39mg/L, and 0.5~2.0mg/L of manganese, even exceeding 2.0mg/L. The groundwater with excessive iron exists in the state of Fe2+, so when it is first pumped, the water quality is clear and clean, but it has an iron smell. After a long time, the water quality becomes turbid. Fe2 + extremely easy pollutes the ion exchange resin, poisons the resin and reduces the exchange capacity.

Fe2+ causes the reverse osmosis membrane to be polluted and failure. When the iron-containing water is used as the boiler make-up water, it is easy to scale, which not only affects the heat transfer, but also easily causes pipe wall corrosion. When the iron content in the cooling water exceeds 0.5mg/L, it will promote the reproduction of iron bacteria, and the produced slime will not only block the pipeline, but also accelerate the corrosion of the equipment. The iron and manganese filter integrates the processes of oxidation, ion replacement, interception and clarification, and makes a reasonable design process according to the customer's water quality to achieve reliable and stable effects.

II.Main technical parameters

tem Specification
Product name Filter
Processing Softening
After- sales Service Video technical support
Key Components Pressure vessel
Function Producing Fresh Water
Performance Precesion Filtration
After-Sales Service 2-Year Warranty For Standard Equipment

III.Selection of Process Flow:
Process Flow Chart:Groundwater→Deep Well Pump→Aeration Device→Water Tank→Filter Pump→First-Class Iron and Manganese Removal Device→Secondary Iron and Manganese Removal Device→Pool→Unit of Measurement for Water

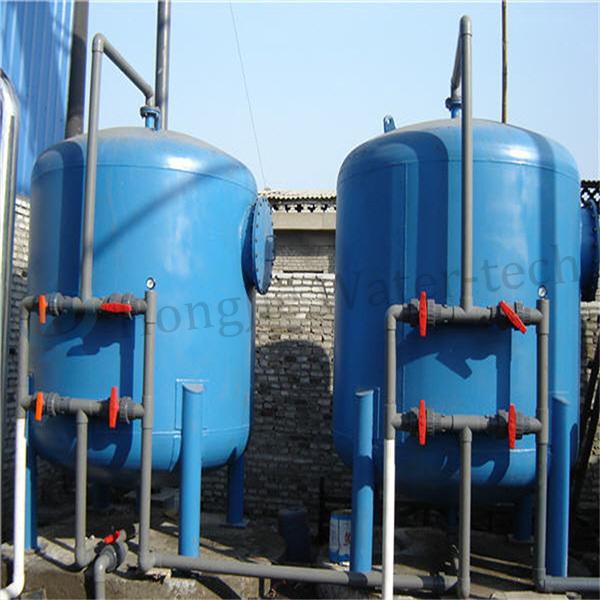

IV.Photo

Large Mechnical 50T/H Carbon Steel Filter For Remove Iron And Manganese Ions
