Integrated Circuit Reclaimed Water Systems RO UF 380V Customizable
Integrated Circuit Reclaimed Water Systems RO UF 380V Customizable
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Guangdong,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Flow Rate :
0.25m³/h - 200m³/h (customizable )
Produced Water Quality :
Conductivity ≤ 15μs/cm
Core Technolog :
RO+UF
Key Components :
RO Membrane Module + UF Membrane Module
Operation Mode :
Full automatic (PLC-controlled)
Product Features :
Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service :
24/7 Support，2-Year Warranty And Maintenance
Power Supply :
380V
Description

I. Equipment Introduction

In recent years, China's semiconductor industry has witnessed remarkable strides, especially with the robust expansion of large-scale chip manufacturing enterprises along the southeastern coast. Chip fabrication is a resource-intensive process, demanding vast quantities of water and relying heavily on chemical reagents and specialized gases. Consequently, the wastewater generated contains a complex matrix of substances. The pursuit of an optimal wastewater treatment solution that ensures regulatory compliance, curtails operational costs, maximizes reclaimed water reuse, reduces per-unit energy consumption, and conserves water resources has emerged as a pivotal area of our research endeavors.

II. Process Flow

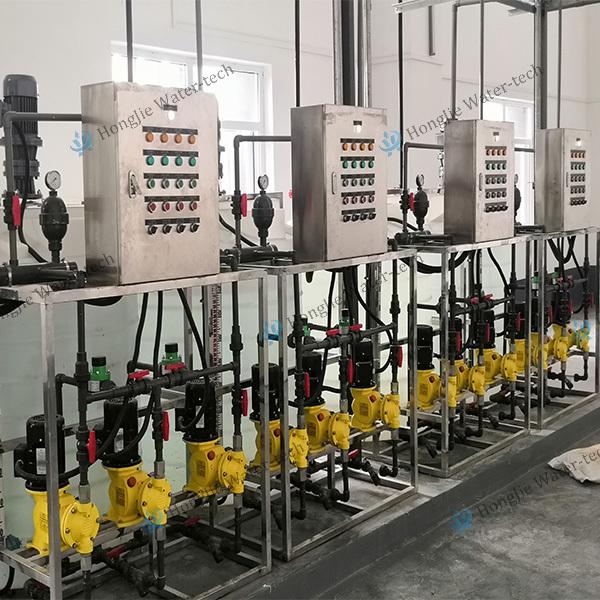

Wastewater → Collection Tank → Chemical Dosing → Reaction Tank → Sedimentation Tank → Chemical Dosing → Sand Filtration → Carbon Filtration → Fine Filtration → Booster Pump → Ultrafiltration (UF) → UF Water Tank → Booster Pump → Chemical Dosing → Fine Filtration → High-Pressure Pump → Reverse Osmosis (RO) → Pure Water Tank → Water Usage Point

III. Design Features

  1. Fully Automated Control: Operate in automatic mode (with programmable backwash and regeneration sequences) or switch to manual control as needed.
  2. UPVC Piping: Durable UPVC pipes ensure long - lasting, corrosion - resistant fluid transport.
  3. Integrated Management: Combines control systems and instrumentation for simplified operation and oversight.
  4. Smart Consumables Alert: Automatic reminders for consumable replacement, triggered by real - time water quality/pressure changes (not just time - based). Adapts to regional water variations for optimal performance.
  5. Efficient Solid - Liquid Separation: Separates suspended solids, colloids, and microbial biomass from purified water with a compact, simple - to - use process. Delivers high - quality effluent, often reusable without tertiary treatment.
  6. High - Density Biomass Support: Maintains concentrated biomass in bioreactors to boost volume load, shorten hydraulic retention time, and reduce footprint.
  7. Microbial Stability: Prevents loss of microbial colonies, supporting slow - growing populations (e.g., nitrifying bacteria) for balanced metabolic processes.
  8. Enhanced Degradation: Extends retention of large, hard - to - break - down molecules to improve decomposition.
  9. Membrane Longevity: Mitigates fouling via regular backwashing/chemical cleaning to slow flux decline, sustaining MBR system lifespan.

IV. Design Standards and Basis

  1. Customized meticulously based on the comprehensive water quality reports provided by clients.
  2. Technical Specifications for Water Treatment Equipment (JB/T 2932-1999)
  3. Criteria for General Landscape and Ecological Water Applications (CJ/T 95-2000)
  4. Standards for Domestic Non-Potable Water Usage (CJ/48-1999)
  5. Requirements for Industrial Circulating Cooling Water (GB/T 50102-2003)
  6. Standards for Reverse Osmosis Water Treatment Equipment (CJ/T 119-2000)
  7. International Electrotechnical Commission Standard for Low-Voltage Switchgear and Controlgear Assemblies (IEC 439-1)
