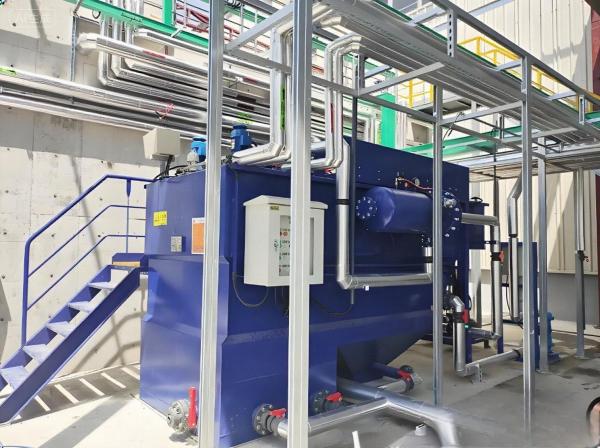

20t/h Electroplating Wastewater Treatment System with RO Membrane
20t/h Electroplating Wastewater Treatment System with RO Membrane
Specifications
Brand Name :
HJW
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
20t/h (Customizable)
Tank Material :
PP, FRP, PVC
Pipeline& Valve Material :
CPVC, PVDF
Membrane Material :
RO:Polyamide composite; UF :PVDF
Reuse water quality :
Conductivity <50μS/cm (RO produced water)
HS Code :
84212199
Description

I.Overview
Wastewater produced by the electroplating industry contains high concentrations of heavy metals (e.g. chromium, nickel, copper, zinc, cyanide, etc.) and organic pollutants, which can cause serious harm to the environment and human health if not treated properly. Therefore, the application of wastewater treatment systems in this industry is crucial. The design of the wastewater treatment system needs to be characterized by high toxicity, high concentration of heavy metals and complex composition, and the use of quality and classification treatment process.


II.Main treatment processes and flows

Category Wastewater Type Process Equipment
Quality - based Treatment Processes Cyanide - containing wastewater Alkaline chlorination (two - stage) Reaction tank, online ORP/pH monitor, dosing system
Chromium - containing wastewater (Cr⁶⁺) Chemical reduction + precipitation Reduction tank, sedimentation tank, plate - and - frame filter press (sludge dewatering)
Comprehensive wastewater (Ni²⁺, Cu²⁺, Zn²⁺, etc.) Neutralization precipitation + flocculation -
Complexed heavy metal wastewater Complex breaking + precipitation -
Advanced Treatment and Reuse - Membrane technology(UF+RO) -
- Ion exchange -
Sludge Treatment - Sludge treatment process Sludge thickening tank, plate - and - frame filter press


III.Equipment Material Selection

Component Material Characteristics & Applications
Reaction Tanks/Storage Tanks PP (Polypropylene) Acid - and alkali - resistant, low cost; suitable for neutralization tanks.
FRP (Fiberglass - Reinforced Plastics) Corrosion - resistant; suitable for cyanide - containing wastewater treatment.
PVC - lined steel tank High strength + corrosion - resistant; used in large - scale systems.
Pipelines & Valves CPVC (Chlorinated Polyvinyl Chloride) Resistant to high - temperature acids and alkalis (e.g., below 80℃).
PVDF (Polyvinylidene Fluoride) Resistant to strong oxidizing agents (e.g., sodium hypochlorite).
Membrane Modules RO membrane Polyamide composite membrane; resistant to pH 2 ~ 11.
UF membrane PVDF hollow fiber membrane; high anti - fouling property.
Key Components Pump Magnetic pump (No leakage, corrosion - resistant) or fluoroplastic centrifugal pump.
Agitator 316L stainless steel or titanium material; for high - salinity environments.


IV.Application Scenarios
Large electroplating park: adopting split-quality treatment + centralized treatment system, supporting online monitoring and automation control
Small and medium-sized electroplating workshop: modularized equipment (e.g. integrated reaction tower), simplifying the process and saving the occupied area.
High requirement reuse scenario: membrane combination process (UF+RO+EDI), realizing the closed loop of electroplating rinse water.


V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
