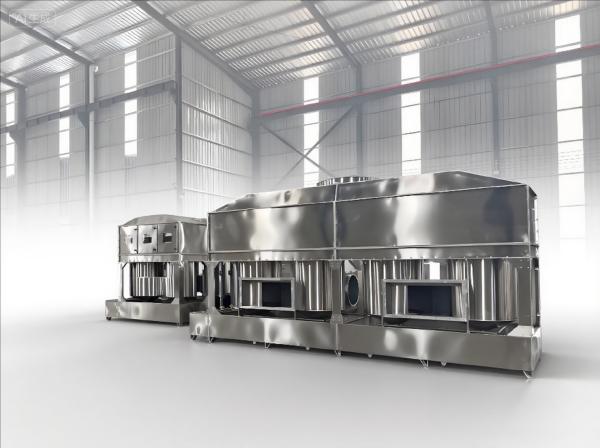

SS304 Wastewater Treatment System 10t/h for Food Beverage Industry
SS304 Wastewater Treatment System 10t/h for Food Beverage Industry
Specifications
Brand Name :
HJW
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
10t/h(Customizable)
Grille/Screen/DAF Material :
sus304
Ozone Generator/Centrifugal Dewatering Machine Material :
SS316L
Equalization Tank Material :
PP/FRP
MBR Membrane Module :
PVDF
Warranty :
2-Year
HS code :
84212199
After service :
24/7 online support
Description

I.Overview
Wastewater treatment systems for the food and beverage industry need to be designed for characteristics such as high organic concentrations, suspended solids, oils and greases, and possible additives.


II.Main process
Raw water → Pre-treatment (physical separation + water conditioning) → Biological treatment (core: anaerobic + aerobic / contact oxidation combination / single selection) → Deep treatment (difficult to degrade + SS + microorganisms precise removal) → Compliant effluent


(simultaneous sludge generation goes in) Sludge treatment (reduction + resourcefulness) → Resourcefulness / Disposal


III.Core Property Parameters

Parameter Typical Range/Requirement Significance
COD 1000-10000 mg/L (Raw Water) Determines the selection of biological treatment processes
BOD₅/COD Ratio ≥0.3 (Favorable for biodegradation) Assesses the biodegradability of wastewater
SS (Suspended Solids) 200-2000 mg/L Influences the selection of pretreatment equipment
pH 6-9 (After Treatment) Avoids corrosion or inhibition of microbial activity
Oil Content < 50 mg/L (Discharge Requirement) Requires air flotation or centrifugal separation
Ammonia Nitrogen (NH₃-N) < 15 mg/L (Discharge Standard) Requires nitrification/denitrification processes
Sludge Loading (F/M) 0.1-0.4 kgBOD₅/kgMLSS·d Controls the operation efficiency of activated sludge systems



IV.Equipment Material Selection

Section Equipment Material Description
Pretreatment Grille/Screen 304 stainless steel (corrosion-resistant); Nylon (flexible screen)
Equalization Tank Concrete + epoxy resin anti-corrosion; or PP (polypropylene)/FRP (fiber-reinforced plastic)
DAF (Dissolved Air Flotation) Equipment Main body: SS304; Dissolved air tank: Carbon steel with rubber lining; Releaser: PP material
Biological Treatment Anaerobic Reactor (UASB/IC) Carbon steel with FRP lining (anti-corrosion); or full stainless steel
Aerobic Tank Concrete + anti-corrosion coating (e.g., polyurea); Aeration pipes: UPVC or EPDM
MBR Membrane Module PVDF (polyvinylidene fluoride) membrane + stainless steel support
Advanced Treatment Ozone Generator 316L stainless steel (oxidation-resistant)
Activated Carbon Filter Carbon steel with rubber lining; or FRP (fiber-reinforced plastic)
Sludge Treatment Centrifugal Dewatering Machine Parts in contact with sludge: SS316 or duplex stainless steel
Pipes and Valves UPVC; or fluorine-lined material (corrosion-resistant, anti-clogging)


V.Typical application scenarios
Brewing industry (beer, liquor)
Dairy processing
Juice/beverage production
Meat processing


VI.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
