23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Application :
Compaction
Brand Name :
jf
Model Number :
SR283
Place of Origin :
Shandong, China
Power :
162kw
Dimension(L*W*H) :
7360*3200*3640
Weight :
28000 kg
Warranty :
2 years
UNIQUE SELLING POINT :
High operating efficiency
Product name :
landfill compactor
Color :
Yellow
Rated power / rated speed (kW / rpm) :
162/2200
Total cycle time (s) :
10
Price :
$101,470.99/sets 1-4 sets
MOQ :
1 set
Description
Company Profile
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
About Company
As a large-scale new energy electric vehicle export dealer, we have a comprehensive brand and a wide range of models, which can provide you with the most favorable price.
I look forward to answering your questions about new or used cars.
Click "Query" to get in touch with us!
Products Description
High strength design, CAE analysis to eliminate local weaknesses, and through high-strength destructive operation tests, ensure that various harsh working conditions are met:
Robot welding of key components, large penetration, stable weld quality, and ensuring the stability of core load-bearing components
Optimized design of working device, with fast action, high digging force, strong lifting ability, optimized bucket shape, low insertion resistance, and high full bucket rate.
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
Dual pump combined flow with priority valve hydraulic system, load sensitive coaxial flow amplification steering system, fast hydraulic response, and high efficiency of the entire machine's steering operation.

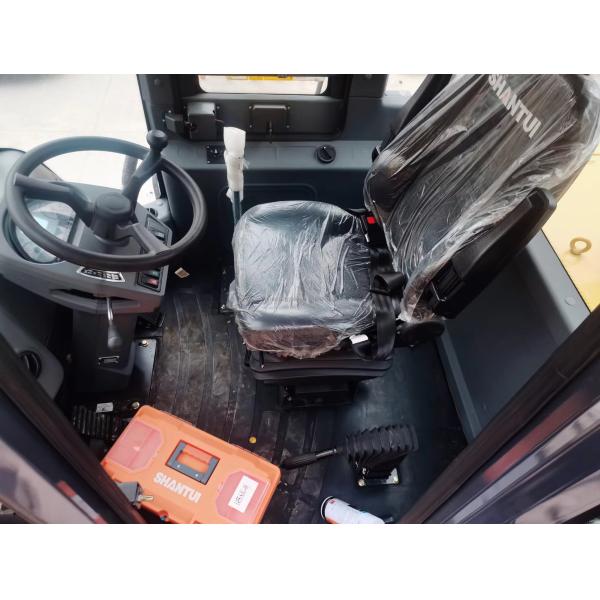

Fully sealed structure cab, noise reduction, dust prevention, insulation, wide field of view, and can be equipped with air conditioning for comfortable driving and riding;
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
The side shield of the large door gas spring is designed with an upward opening, with a large opening angle, making it easy to open and maintain;
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
The entire machine is matched with three power modes of no load, medium load and heavy load, and is selected according to the actual load requirements of the working conditions to achieve a reasonable matching of power, efficiency, and energy consumption.

Click here for more details
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
Exhibition

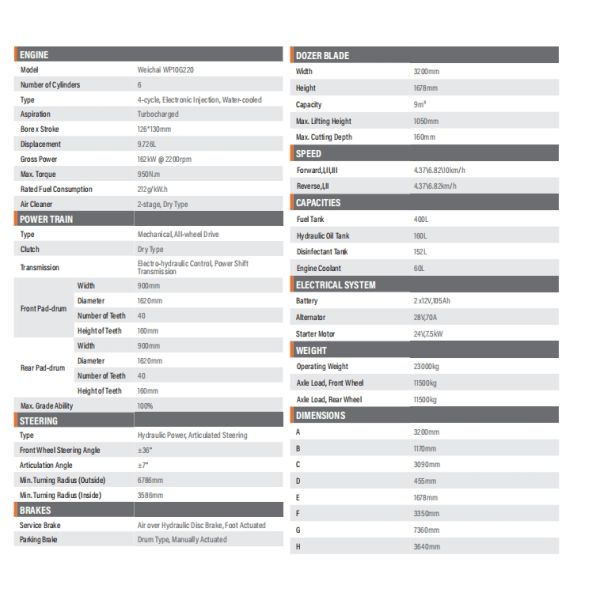

Product Paramenters
parameter name
SR23MR
SR26MR-3
SR28MR-3
Performance parameters
Workload (kg)
23000
26000
28000
engine
engine model
WP10
WP10
WP10
Number of fixed power/number of fixed rotation by [kw/rprm)
162/2200
178/2200
178/2200
Dimensions
Overall dimensions of the machine (mm)
7360×3200×3640
7940×3660×3925
7940×3660×3960
Walking performance
Forward speed (km/h)
4.37/6.82/10
4.82/7.66/11.6
4.82/7.66/11.6
Reverse speed change (km/h)
4.37/6.82
4.82/7.66
4.82/7.66
Fuel tank capacity
Fuel tank (L)
400
440
440
working equipment
Compaction width (mm)
3090
3360
3520
23ton 4wheel Landfill Compactor SR283 Garbage Roller for Large-Scale Waste Compaction
