Specifications
Operating humidity :
0- 100% relative / non-condensing
Pressure range :
0.8- 1.3 Bar absolute / 11.6- 18.8 psi
Storage Temperature :
0-60°C / 32- 140 °F
Accuracy :
±5 % of value ±0.5% of range for 50% range
Housing :
Polycarbonate
Connection method :
Base Station / Traffic Adapter
Brand Name :
HiYi
Model Number :
BlueVary
Certification :
CE
Place of Origin :
China
Payment Terms :
T/T, L/C,Western Union,
Delivery Time :
3-7 days
Packaging Details :
paper carton
MOQ :
1
Description

BlueVary Microbial gas analyzer

OVERVIEW

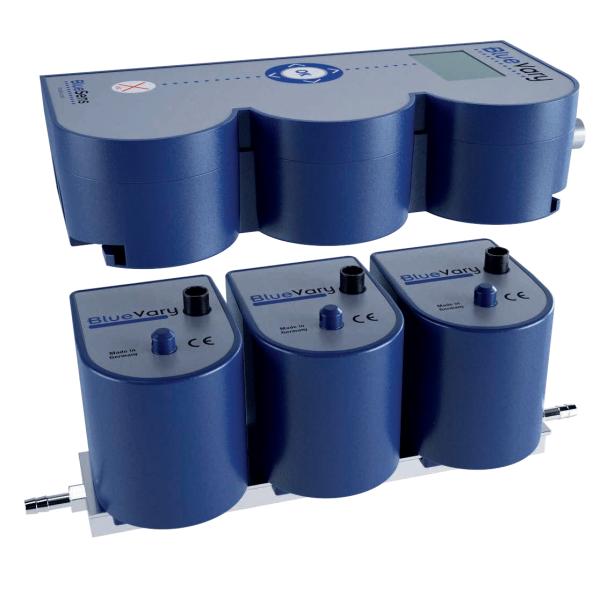

BlueVary consists of a basis station with three plug-in positions for gas sensor cartridges. Two different gases can be measured at once. The third plug-in position holds a pressure or pressure/humidity sensor cartridge. Gas sensor cartridges are selectable according to your application and can be changed easily as required. BlueVary increases your efficiency

FEATURES

  • 3 cartridge plug-in positions:1 for pressure/humidity,2 for two various gas cartridges
  • Variable connections and data output options
  • Light but robust plastic housing
  • Cartridges for CO2, O2, CH4 and H2 available now
  • One device to cover different measurement tasks: choose a suitable gas sensor cartridge for your application
  • Maintenance free: no need for offsite annual maintenance - minimizes your downtime
  • Auto compensated pressure and/or humidity: no gas cooler, pumps, valves or other gas pretreatment needed
  • Connectable to any hose/tube or pipe: use it on your fermenter of choice
  • Integrated status display: see all sensor information and measurement data at a glance
  • Simplify process optimization:continuous online fermentation monitoring for cell culture, microbial, algae, fungi or biogas processes identify metabolic phenomena and obtain vital process parameters
  • Applicable from lab to industrial scale

PARAMETERS

Gas sleeve combination Required Sleeve
CO2 O2ec O2 (ZrO2) CH4 H2 EtOH Humidity/Pressure Pressure
CO2 ✔ ✔ ✔ ✔ ✔ CO2 ✔
O2ec ✔ ✔ ✔ ✔ O2ec ✔
O2 (ZrO2) ✔ O2 (ZrO2) ✔
CH4 ✔ ✔ ✔ CH4 ✔
H2 ✔ ✔ ✔ ✔ 2 ✔
EtOH ✔ ✔ ✔ EtOH ✔

Sensor (gas detection sleeve) CO2 O2ec O2 (ZrO2 ) CH4 H2 EtOH Humidity/pressure
Principle NDIR Original battery ZrO2 NDIR Thermoelectric Conductivity NDIR Polymers
Measurement Range 0- 10, 0-25, 0-50 vol.-% 0-25, 0-50, 0-100 vol.-% 0. 1-25, 0. 1-50 vol.-% 0- 100 vol.-% 0-10, 0-50, 0-100 vol.-% 0- 10, 0-25 vol.-% 0- 100% rH, 5-55°C, 0.8- 1.3 Bar abs
Drift/Stability over time 0.2% of measured value/month
Accuracy ±3 % of value ±0.2% of range ±3 % of value ±0.2% of range ±3 % of value ±0.2% of range ±3 % of value ±0.2% of range ±5 % of value ±0.5% of range ±5 % of value ±0.5% of range ±3 % of value ±0.2% of range
±5 % of value ±0.5% of range for 50% range
Housing Polycarbonate
Size / Weight 96 x 70 x 91 mm 96 x 70 x 91 mm 96 x 70 x 91 mm 96 x 70 x 91 mm 96 x 70 x 91 mm 96 x 70 x 91 mm 96 x 70 x 91 mm
270 g 215 g 280 g 270 g 280 g 270 g 190 g
Material in contact with gas POM, steel 1.4404, PTFE, FKM, sapphir POM, PTFE, FKM, ABS POM, steel 1.4404, PTFE, FKM POM, steel 1.4404, PTFE, FKM, sapphir POM, steel 1.4404, PTFE, FKM POM, steel 1.4404, PTFE, FKM, sapphir POM, steel 1.4404, PTFE, FKM, Polymer H.L.
Connection method Base Station / Traffic Adapter
Overview CO2 O2ec O2 (ZrO2 ) CH4 2 EtOH Humidity/pressure
Operating temperature 5-55°C / 41- 133°F 5-55°C / 41- 133°F 5-55°C / 41- 133°F 5-55°C / 41- 133°F 5-55°C / 41- 133°F 5-55°C / 41- 133°F 5-55°C / 41- 133°F
Operating humidity 0- 100% relative / non-condensing
Pressure range 0.8- 1.3 Bar absolute / 11.6- 18.8 psi
Storage Temperature 0-60°C / 32- 140 °F
