Thick-Wall Pressureless Sintered Silicon Carbide Roller
Thick-Wall Pressureless Sintered Silicon Carbide Roller
Thick-Wall Pressureless Sintered Silicon Carbide Roller
Thick-Wall Pressureless Sintered Silicon Carbide Roller
Specifications
Brand Name :
KeGu
Model Number :
Customizable
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Density :
>3.05g/cm3
Flexural Strength :
380MPa
Material :
SiC
Composition:SiC :
>98%
Color :
Black
Max. Service Temp :
1650°C
Description

Thick-Wall Pressureless Sintered Silicon Carbide Roller


Description:

This product is a thick-wall pressureless sintered silicon carbide (SiC) roller, designed to exceed conventional wall thickness limits (typically 6–8mm) with two standardized specifications:

  • 40mm OD × 20mm ID: Mature, mass-produced, and extensively validated in industrial applications.
  • 45mm OD × 20mm ID: Process-optimized for enhanced durability, currently undergoing customer trials with proven reliability.

The thick-wall design (10–12.5mm) significantly improves structural integrity, ensuring sustained load-bearing capacity under severe corrosion, high-temperature scouring, or mechanical wear. Ideal for photovoltaic glass kilns, lithium battery material sintering furnaces, and ceramic roller kilns.


Features & Benefits:

1. Enhanced Safety via Thick-Wall Structure

2. Pressureless Sintering for Superior Performance

3. Thermal Shock & Wear Resistance

4. Custom Validation & Support


Advantages:

1. Balanced Safety & Efficiency

2. Cost Efficiency

3. Rapid Validation & Delivery

The physical properties of pressureless sintered silicon carbide ceramics products:


Physical properties Unit SSiC
Composition:SiC Vol% ≥98
Density 20 ℃ g/cm3 ≥3.06
Open Porosity Vol% ≈0
Hardness Rockwell Hardness 45N R45N 93
Vickers Hardness HV1 kg/mm2 2350
hermal Conductivity 20°C Wm-1K-1 196
1200°C Wm-1K-1 60
Coficient of Thermal Expansion 10-6K-1 4.0
Flexural Strength 20°C MPa 320-400
1300°C MPa 300-400
Modulus of Elasticity @ RT GPa 410
Thermal shock resistance ℃ ＞350
Max. Service Temp (air) ℃ 1650


Customization:

The maximum diameter achievable through extrusion molding is 90mm, with a maximum thickness of 15mm and a maximum length of up to 4 meters

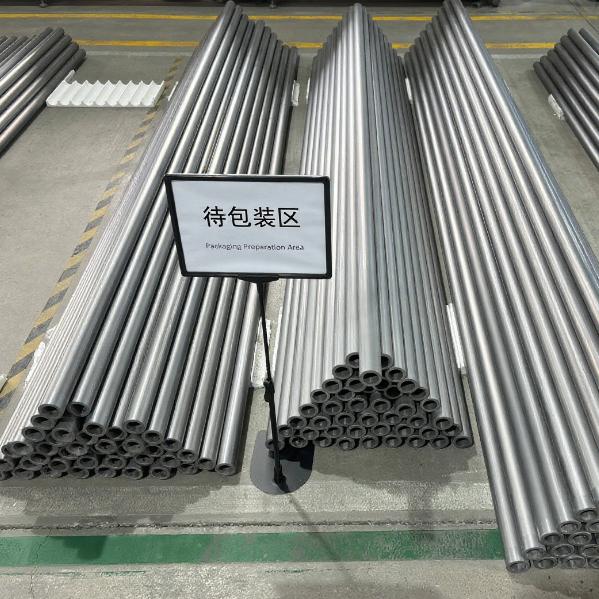

Packaging & Shipping:
