Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description
1500C ED Type SIC Heating Elements - Silicon Carbide Heating Element
The 1500C ED Type SIC Heating Element is a high-performance non-metallic electric heating element designed for extreme temperature applications. Manufactured from selected high-purity green silicon carbide, these elements undergo crystallization at temperatures reaching 2400°C to deliver exceptional thermal performance and durability.
Application Range
These silicon carbide heating elements are engineered for furnace applications operating between 600°C to 1600°C. They are widely utilized across various industries including glass manufacturing, chemical processing, and electronic material production.

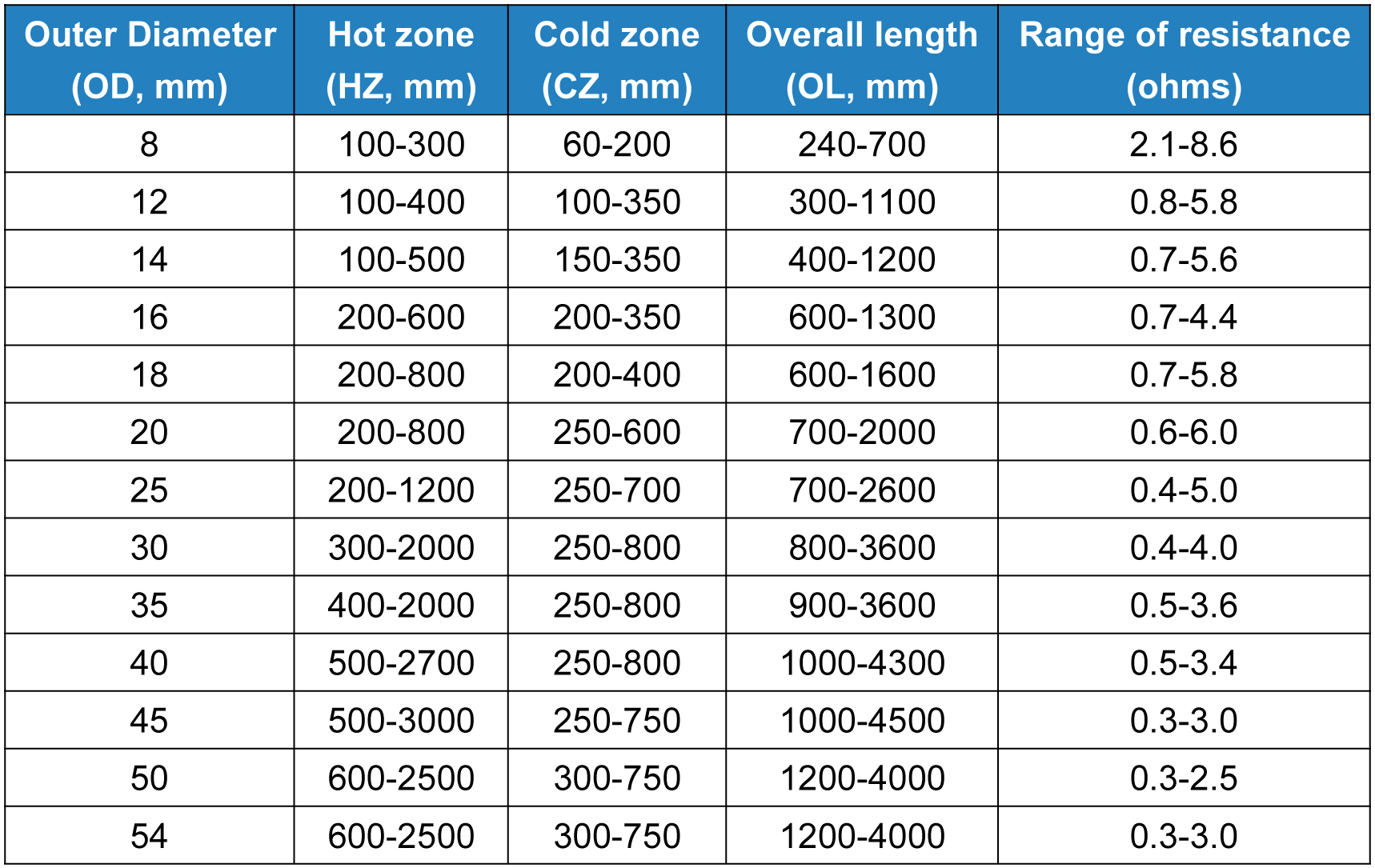

Product Specifications

Diameter Range: 8mm to 60mm

Length Range: 300mm to 450mm

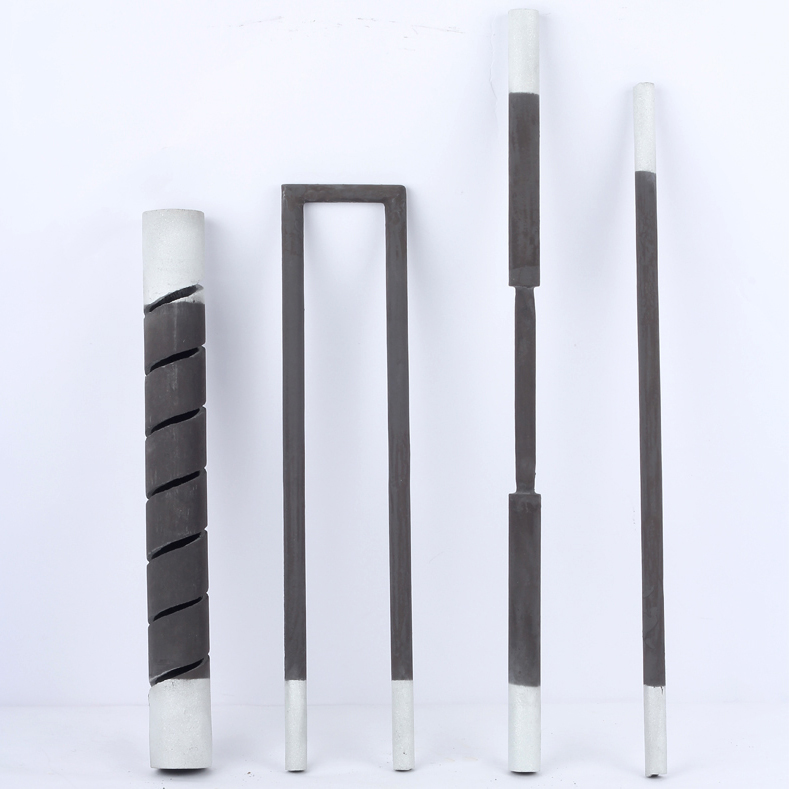

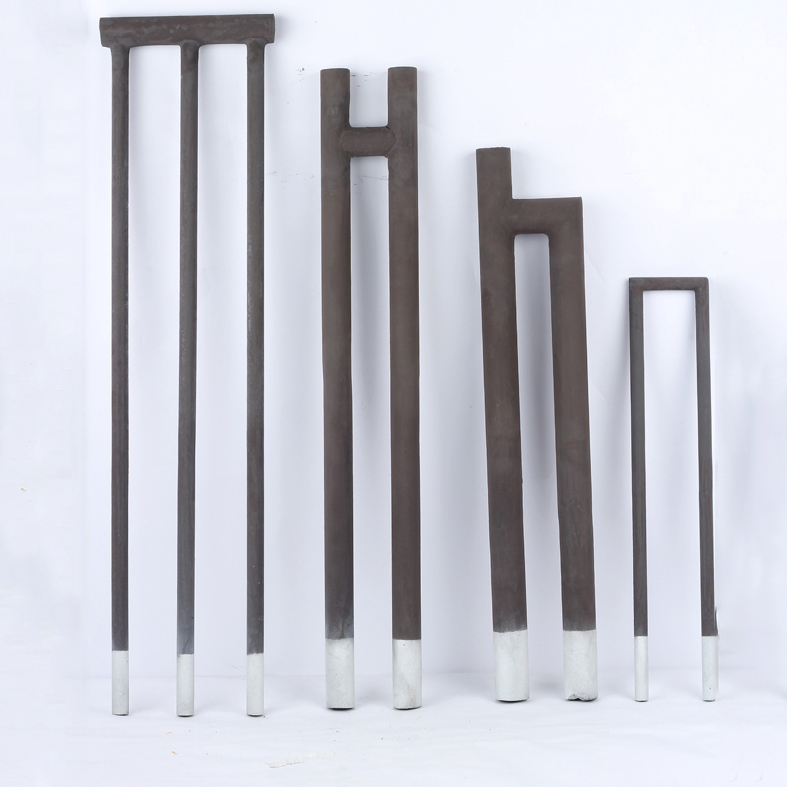

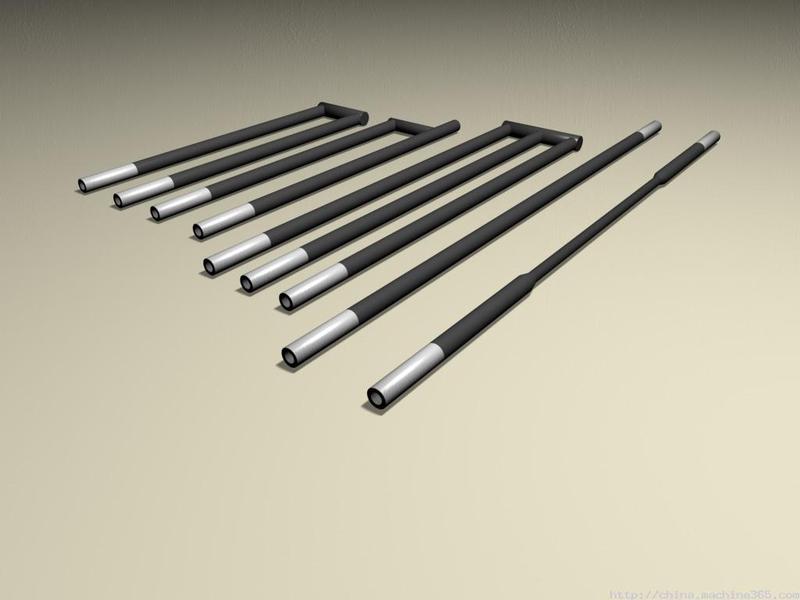

Available Configurations: Equal diameter, groove-shaped, U-shaped, and gun-shaped designs

Specialization: Custom solutions for electric glass heating applications

Key Features & Advantages
  1. Maximum working temperature of 1600°C for high-temperature industrial processes
  2. Rapid temperature rise with stable performance and extended operational lifespan
  3. Noise-free operation with zero air pollution emissions
  4. Simple installation and minimal maintenance requirements

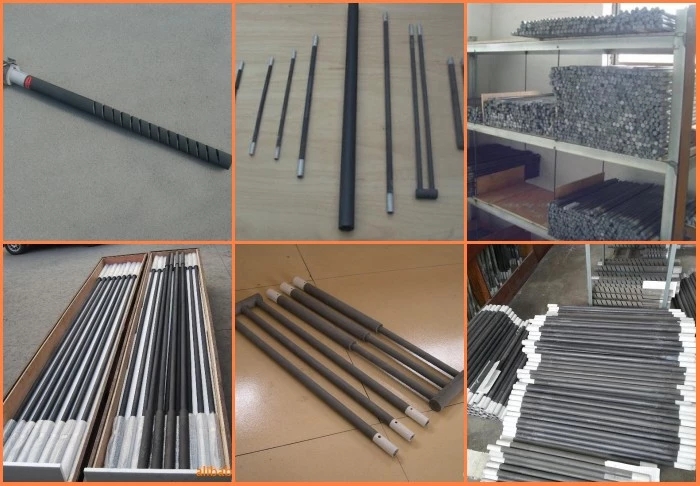

Product Gallery
1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater 1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater
Quality Assurance
Our commitment to quality is demonstrated through rigorous testing and inspection processes at every manufacturing stage. Each silicon carbide heating element undergoes comprehensive quality control to ensure reliability and performance consistency.
1500C Max Service Temp High Purity SiC Material Customized Size SIC Heating Element Silicon Carbide Heater
