Specifications
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Model Number :
Customizable
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Description
1400°C Furnace Spiral Sic Heater Furnace Silicon Carbide Heating Elements
Silicon Carbide Heating Element Overview
  • The silicon carbide (SiC) heating element is a non-metal high temperature electric heating element manufactured from selected super quality green silicon carbide as the main material, formed into blanks, solidified under high temperature, and re-crystallized.
  • Compared with metal electric heating elements, these elements feature high application temperature, oxidation resistance, corrosion resistance, long service life, minimal deformation, and easy installation and maintenance.
  • Widely used in various high temperature electric furnaces and other electric heating devices across industries including magnet, ceramic, powder metallurgy, glass, metallurgy, and machinery.
Physical Properties of SiC Heating Elements
Specific Gravity 2.6~2.8g/cm³ Bend Strength >300kg
Hardness >9 MOH'S Tensile Strength >150kg/cm³
Porosity Rate <30% Radiance 0.85
Applications
Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, and semiconductor materials.
1400°C Spiral Silicon Carbide Heating Elements with High Temperature Resistance for Furnace Applications 1400°C Spiral Silicon Carbide Heating Elements with High Temperature Resistance for Furnace Applications

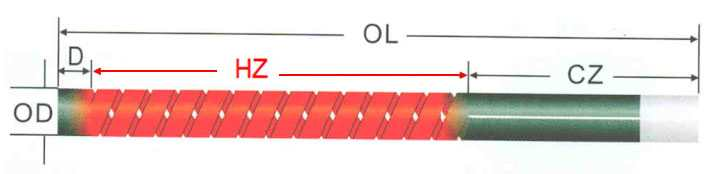

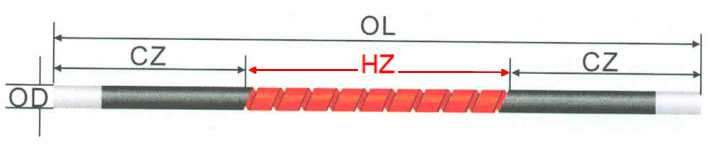

Ordering Information
Please provide the following data when ordering:

Type: U
Hot Zone: HZ
Cold Zone: CZ
Total Length: OL
Please mark terminal distance A.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a factory specializing in high-temperature heating elements (MoSi₂ & SiC) and tungsten and molybdenum products for 16 years.
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer samples free of charge but do not cover freight costs.
Q: What are your payment terms?
A: Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment.
If you have additional questions, please feel free to contact us.
Quality Control
