Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Nitrogen-Resistant Silicon Carbide Heating Element with 1500°C Max Service Temp and Customized Size
Specifications
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Description
Industrial Nitrogen-Resistant Silicon Carbide Heating Element Rod
High-performance silicon carbide heating elements designed for industrial applications requiring nitrogen-resistant properties and reliable operation at extreme temperatures.
Product Specifications
Outer Diameter (mm) Hot Zone (mm) Cold Zone (mm) Overall Length (mm) Range of Resistance
8 100-300 60-200 240-700 2.1-8.6
12 100-400 100-350 300-1100 0.8-5.8
14 100-500 150-350 400-1200 0.7-5.6
16 200-600 200-350 600-1300 0.7-4.4
18 200-800 200-400 600-1600 0.7-5.8
20 200-800 250-600 700-2000 0.6-6.0
25 200-1200 250-700 700-2600 0.4-5.0
30 300-2000 250-800 800-3600 0.4-4.0
35 400-2000 250-800 900-3600 0.5-3.6
40 500-2700 250-800 1000-4300 0.5-3.4
45 500-3000 250-750 1000-4500 0.3-3.0
50 600-2500 300-750 1200-4000 0.3-2.5
54 600-2500 300-750 1200-4000 0.3-3.0
Key Features
  • Withstands temperatures up to 1500°C
  • High strength and excellent thermal shock resistance
  • Noise-free and pollution-free heat source
  • Anti-oxidation and anti-corrosion properties
  • Easy installation and maintenance
Ordering Information
Please provide the following details when ordering:

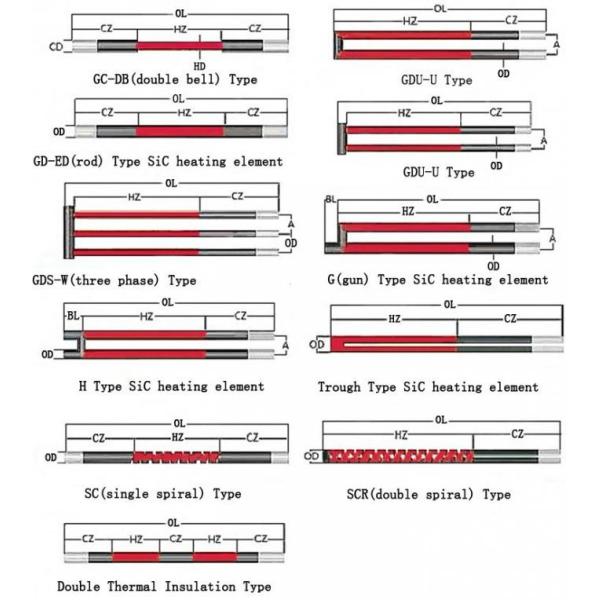

  • Type: rod, U, W, H, spiral, or double-spiral
  • Outer Diameter, Hot Zone, Cold Zone, and Overall Length specifications
  • For U or W types: terminal distance requirements
  • Special resistance requirements (if applicable)
  • Quantity needed
Applications
  • Thermoforming & Vacuum Forming Machines
  • PVC Pipe Belling / Socketing Machines
  • Hot Stamping Machines
  • Heat Therapy Equipment
  • Shrink Packaging Systems
Company Advantages
With over 20 years of manufacturing experience, we offer high-quality silicon carbide heating elements at competitive prices with fast delivery times.
Custom Manufacturing
Our skilled technical engineers can produce custom heating elements according to your specific drawings or photos.

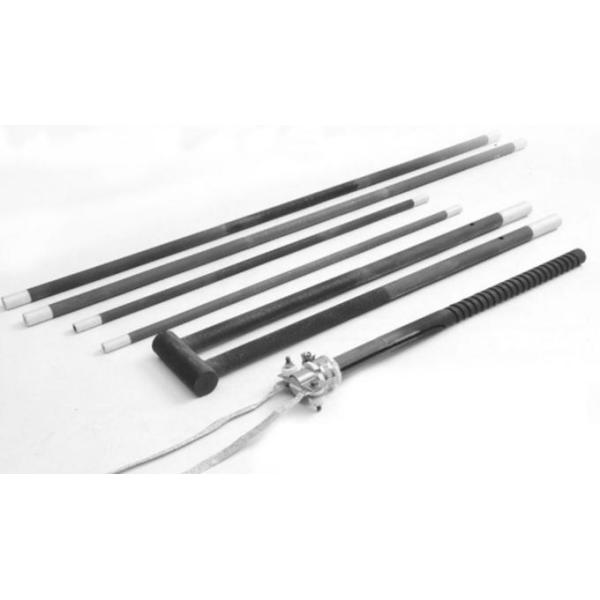

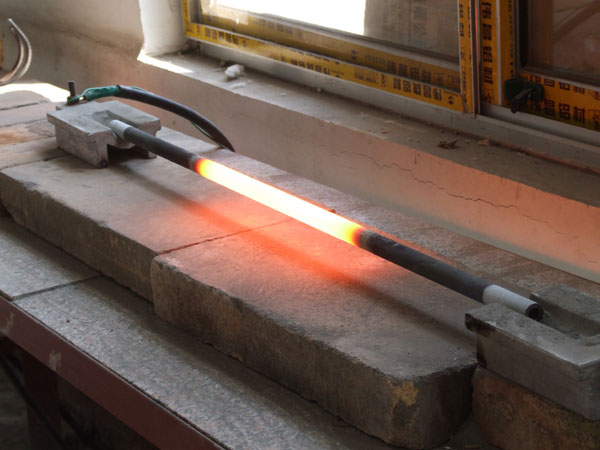

Product Images
