1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Products Description
Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.
Specification
Outer Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.
Details Images

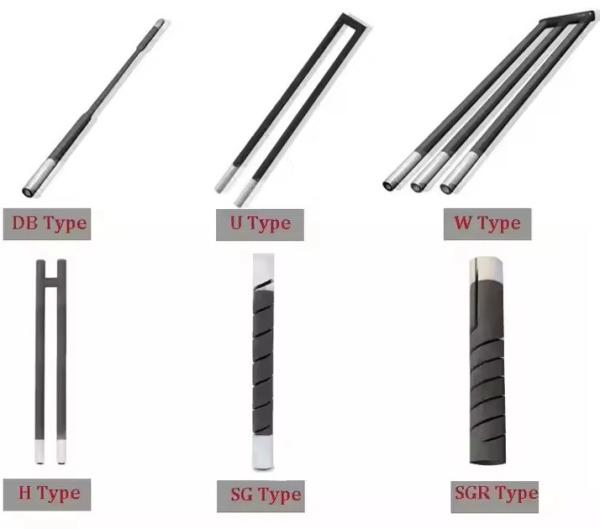

Types
Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)

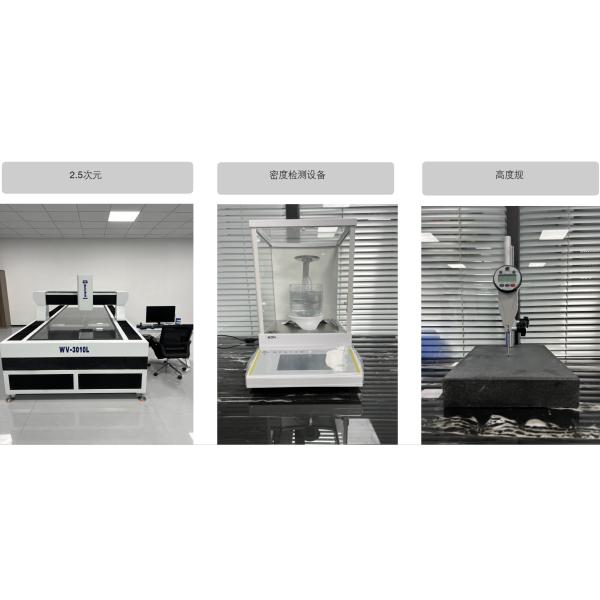

Quality control:


1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln


Feature:

 High Temperature Oxidation Resistance: High
Type: U Shape (U Type) Working Lifetime: 10000h
Usage: Electrical Furnace Length: As Requested
Product Type: Electric Heating Elements Max Max Temperature: 1400c
Corrosion Resistance: Excellent
Highlight:

Furnace Silicon Carbide Rod Heating Element

,

Carbide Rod Heating Element For Kiln
