1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

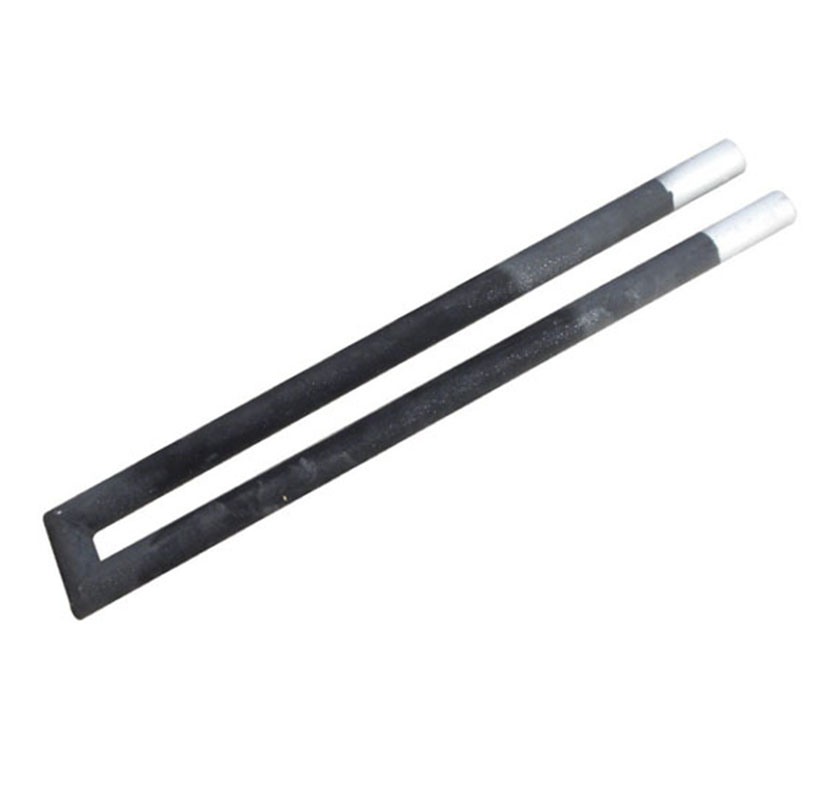

1400°C U/W Rod Shape Silicon Carbide Heating Element
Silicon carbide heating elements are non-metallic high-temperature heating components manufactured from premium green silicon carbide. Through high-temperature siliconization and recrystallization processes, these elements deliver exceptional performance in demanding thermal environments, making them the preferred economical heating solution for industrial applications.
Product Overview
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln 1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln 1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln 1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Technical Specifications
Outer Diameter (OD, mm) Hot Zone (HZ, mm) Cold Zone (CZ, mm) Overall Length (OL, mm) Resistance Range (ohms)
8100-30060-200240-7002.1-8.6
12100-400100-350300-11000.8-5.8
14100-500150-350400-12000.7-5.6
16200-600200-350600-13000.7-4.4
18200-800200-400600-16000.7-5.8
20200-800250-600700-20000.6-6.0
25200-1200250-700700-26000.4-5.0
30300-2000250-800800-36000.4-4.0
35400-2000250-800900-36000.5-3.6
40500-2700250-8001000-43000.5-3.4
45500-3000250-7501000-45000.3-3.0
50600-2500300-7501200-40000.3-2.5
54600-2500300-7501200-40000.3-3.0
The specifications above represent a selection of our standard products. Custom specifications can be manufactured according to your specific requirements.

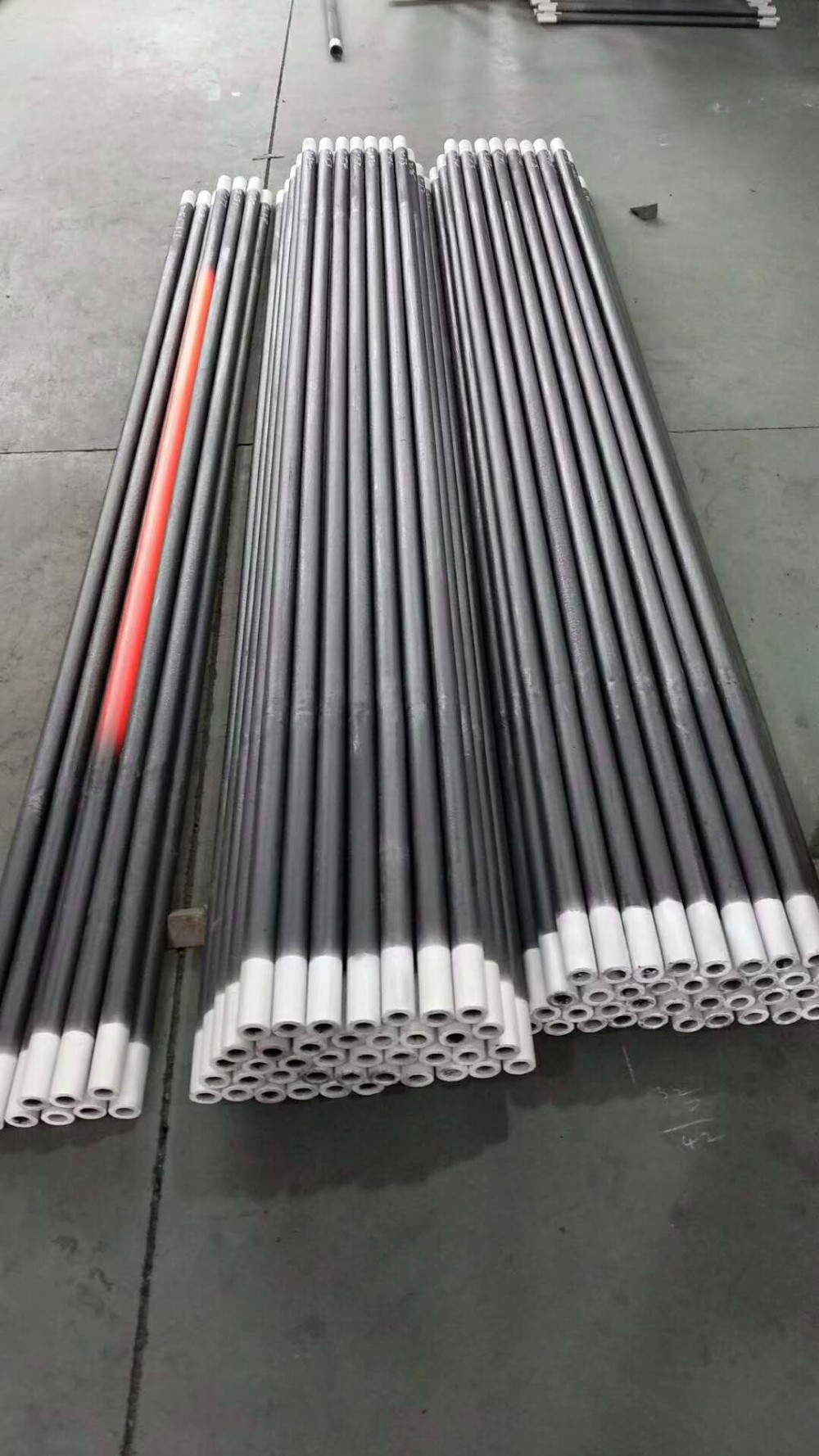

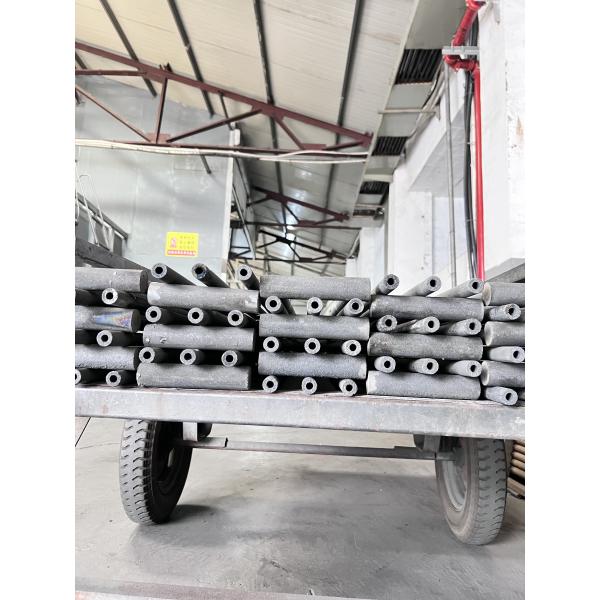

Detailed Product Images
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln 1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Available Configurations
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln 1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Key Dimensions: Outer Diameter (OD, mm) | Hot Zone Length (HZ, mm) | Cold Zone Length (CZ, mm) | Overall Length (OL, mm) | Shank Spacing (A, mm) | Bridge (D, mm)
Quality Assurance
1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Performance Characteristics
Operating Temperature
Maximum 1400°C
Oxidation Resistance
High
Element Type
U Shape (U Type)
Service Life
10,000 hours
Application
Electrical Furnace
Product Category
Electric Heating Elements
Corrosion Resistance
Excellent
Primary Applications: Furnace Silicon Carbide Rod Heating Element, Carbide Rod Heating Element For Kiln
